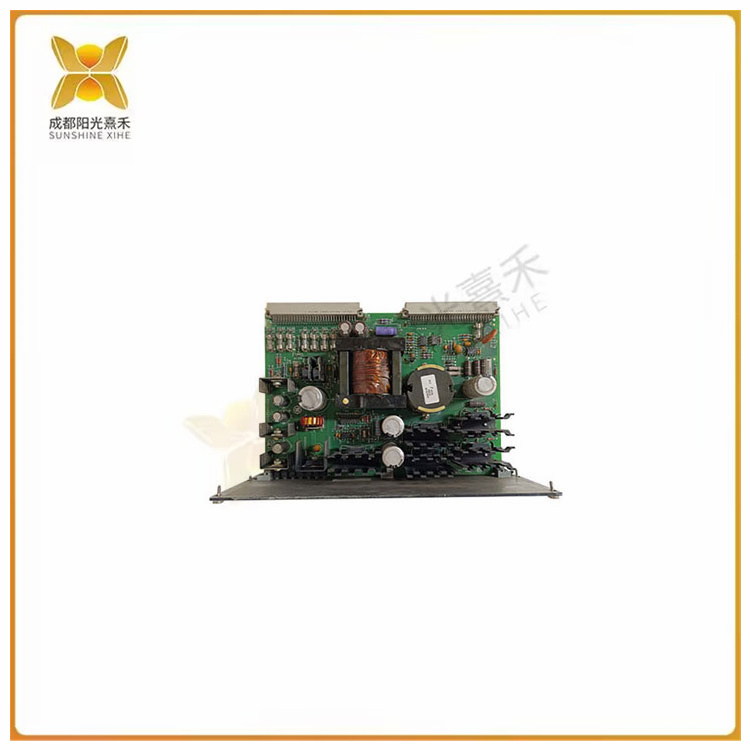

>>>>>型号:IS200EPSMG1AED 激励器PT/CT板 提供以太网功能
【功能描述】
该IS200EPSMG1AED由通用电气制造，作为其Mark VI Speedtronic系统的一部分，该系统设计用于控制工业燃气轮机/蒸汽轮机。Speedtronic系列于1960年代后期开始生产Mark I。从那时起，Speedtronic发布的每个系统都比以前的设计不断改进。Mark VI提供以太网功能、基于PC的操作界面以及预装的专有软件，如CIMPLICITY和GE Toolbox。操作界面是一个非必要的组件，可以随时重新初始化，而不会影响系统的控制。
IS200EPSMG1AED是激励器PT/CT板。它包括2个用于发电机PT电压的三相输入和2个用于发电机CT电压的电流输入。还有一个模拟输入。
IS200EPSMG1AED的物理设计如下：它沿其前缘放置了三个端子排，包括一个24位接线板和两个4位接线板。后边缘有三个垂直插针连接器。它们被标记为J315、J305和J308。该板有12个测试点、一个跳线开关、2个环形变压器、4个安装在框架中的变压器以及电阻器、电容器和金属氧化物压敏电阻（MOV）。
>>>>>型号:IS200EPSMG1AED 激励器PT/CT板 提供以太网功能
【英文介绍】
IS200EGDMH1AFF is an exciter field grounding detection module, which is the functional abbreviation of EGDM.
During the installation, the module will be installed on the backplane of the excitation power supply or the terminal block of the exciter. It is used to detect the ground status of the excitation magnetic field and output the detection result to the control system or display instrument to realize the ground protection and control of the excitation.
It should be noted that the above information is for reference only, if necessary, it is recommended to consult professional and technical personnel.
The difference between IS200EGDMH1ADF and IS200EGDMH1AFF is that the former is the excitation field grounding detection module, and the latter is the excitation field grounding detection module.
During the installation process, the former is installed on the backplane of the excitation power supply or the terminal block of the exciter, which is used to detect the ground state of the excitation magnetic field, and output the detection result to the control system or display instrument to realize the ground protection and control function of the exciter. The latter is mounted on the excitation power backplane rack, close to the EPSM module, and operates on stand-alone systems, which require one EGDM, and redundant systems, which require three EGDM modules.
