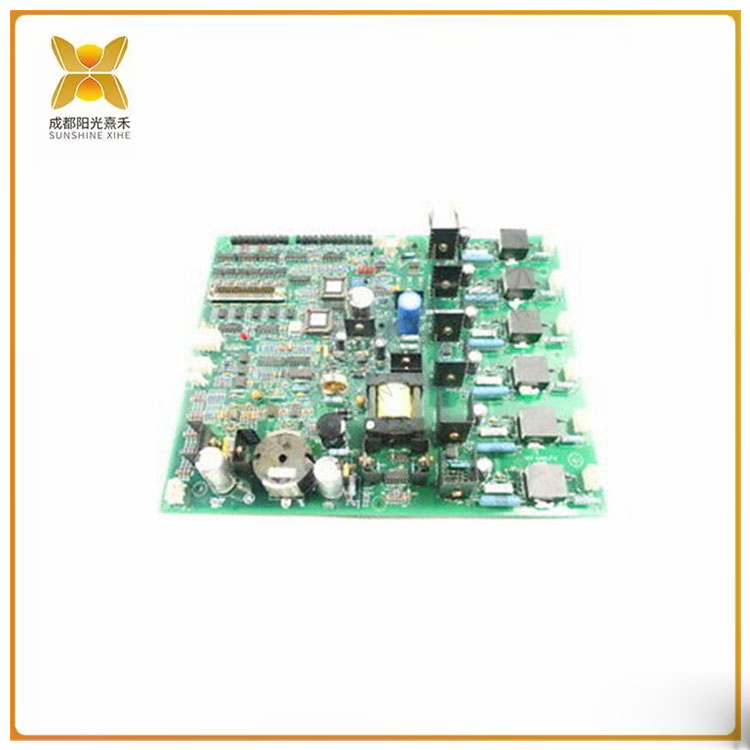

>>>>>型号:IS200EGPAG1BCA 栅极脉冲放大器板 连接电源转换模块
【功能描述】
栅极脉冲放大器板编号IS200EGPAG1BCACA位于电源转换柜内，可连接电源转换模块。该模块是标在桥接器和保护板/模块下的电路板之一，虽然该电路板可以独立运行，但通常需要从其中一个EPDM模块获取电源。
IS200EGPAG1BCACA板接收来自安装在SCR散热器上的两个热敏开关的反馈。这些开关在报警电平和跳闸电平时触发和打开，并直接连接到IS200EGPAG1BCACA。开关在触发之前必须达到的温度是190°F的跳闸水平和170°F的报警水平。如果只有一个开关打开，则开关可以单独打开或一起打开，则发生有关电桥的超温报警，如果两个开关都打开，则表明发生了跳闸和故障。
IS200EGPAG1BCACA板有五个跳线，这些跳线允许用户选择所需的特定应用配置，并在安装前轻松调整跳线配置。
关于IS200EGPAG1BCACA的常见问题
AX Control能提供什么，因为它与IS200EGPAG1BCACA栅脉冲放大器板有关？
AX Control将购买、出售或修理IS200EGPAG1BCACA板，并且通常货架上有剩余库存可供报价。IS200EGPAG1BCACA栅脉冲放大器板的销售和维修均提供3年保修。请通过电话或电子邮件联系我们的销售团队以获取快速报价。
IS200EGPAG1A和IS200EGPAG1BCACA上的LED指示灯是否相同？
是的！IS200EGPAG1BCACA板上的LED还用于指示进入电桥的电流状态、线路滤波器、栅极电源、输出点火、电桥温度、报警/故障条件和冷却风扇旋转。
在EX2100系列中，有许多不同类型的印刷线路板。IS200EGPAG1BCACA模型属于哪一类？
IS200EGPAG1BCACA型号属于印刷线路板的桥接和保护板/模块。
IS200EGPAG1A板和IS200EGPAG1BCACA板之间有什么区别吗？
根据GEH-6632 EX2100励磁控制用户指南，两块EGPA板之间没有区别。
>>>>>型号:IS200EGPAG1BCA 栅极脉冲放大器板 连接电源转换模块
【英文介绍】
IS200EGDMH1AFF is an exciter field grounding detection module, which is the functional abbreviation of EGDM.
During the installation, the module will be installed on the backplane of the excitation power supply or the terminal block of the exciter. It is used to detect the ground status of the excitation magnetic field and output the detection result to the control system or display instrument to realize the ground protection and control of the excitation.
It should be noted that the above information is for reference only, if necessary, it is recommended to consult professional and technical personnel.
The difference between IS200EGDMH1ADF and IS200EGDMH1AFF is that the former is the excitation field grounding detection module, and the latter is the excitation field grounding detection module.
During the installation process, the former is installed on the backplane of the excitation power supply or the terminal block of the exciter, which is used to detect the ground state of the excitation magnetic field, and output the detection result to the control system or display instrument to realize the ground protection and control function of the exciter. The latter is mounted on the excitation power backplane rack, close to the EPSM module, and operates on stand-alone systems, which require one EGDM, and redundant systems, which require three EGDM modules.
