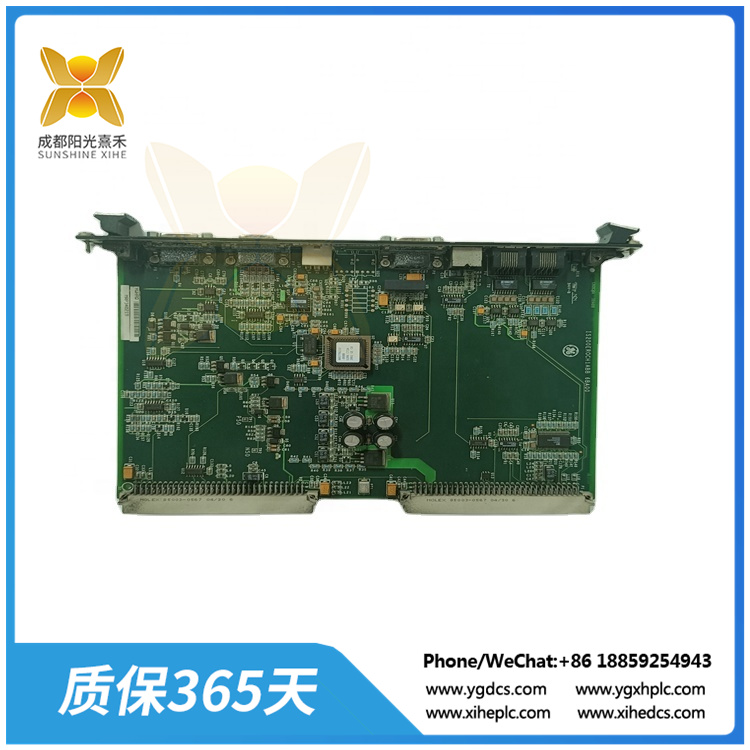

IS200TRPGH1BDE | 电位器 | 能够精确测量涡轮转速
IS200TRPGH1BDE由通用电气制造，作为其Markl和Markll系列的一部分。
IS200TRPGH1BDE有8个大型可变电阻，也称为电位器。 这些可变电阻器通过工人在其表面转动一个小螺丝来限制能量。
IS200TRPGH1BDE也有大约50种不同颜色的电阻，具有多个颜色带。 这些设备具有可限制的预定能量。 如果有人想知道每个手电筒有多少人能看到
能量，每个色带对应一个色码做一个方程来计算。
IS200TRPGH1BDE有6个红色方形电容器，3个黄色电容器和2个橙色圆形电容器。 电容器将多余的能量储存在它们产生的电场中。
IS200TRPGH1BDE三个银色圆形晶体管和十个黑色小晶体管。 大管被用来放大和改变电子信号或电能。 IC3600SOTH1有近70个金属引脚，也称为公端子
这些公端子用于将IS200TRPGH1BDE连接到系统的其余部分。
输入输出配置
IS200TRPGH1BDE端子板具有全面的输入输出范围，确保高效的操作和控制:
客户输入终端:这些输入由两个24点可插拔的屏障终端提供便利，为客户特定的输入提供有组织和可访问的接口
9个无源脉冲速率装置:这些装置分布在X//Z段，每段3个，具有负仪表感应齿轮，从而能够精确测量涡轮转速。
用于信号震荡的跳线模块:跳线模块在使一组三速输入能够震荡到所有三个PPROI/0数据包，优化信号分配以实现统一功能方面发挥关键作用。
125 VDC TMR投票输出触点:这些标有H2A和H4A的输出触点是系统跳闸激活的关键部件，确保在紧急情况下采取故障安全措施
电压检测电路:IS200TRPGH1BDE从24到125 VDC的四个电路专门用于监测脱扣串，通过连续监测电压水平来提高系统的安全性和可靠性。
子板连接器:包含子板连接器允许可选的功能扩展，为附加或增强的功能提供可扩展性和自定义可能性。
Product translator:
The IS200TRPGH1BDE is manufactured by General Electric as part of its Markl and Markll series.
The IS200TRPGH1BDE has eight large variable resistors, also known as potentiometers. These variable resistors limit energy by a worker turning a small screw on their surface.
The IS200TRPGH1BDE also has about 50 different colored resistors with multiple color bands. These devices have a predetermined amount of energy that can be limited. If anyone wants to figure out how many people can see each flashlight
Energy, each color band corresponds to a color code to do an equation to calculate.
The IS200TRPGH1BDE has six red square capacitors, three yellow capacitors and two orange round capacitors. Capacitors store excess energy in the electric fields they generate.
IS200TRPGH1BDE Three circular silver transistors and ten small black transistors. The bulk tube is used to amplify and alter electronic signals or electrical energy. The IC3600SOTH1 has nearly seventy metal pins, also known as male terminals
These male terminals are used to connect the IS200TRPGH1BDE to the rest of the system.
Input and output configuration
The IS200TRPGH1BDE terminal board has a comprehensive input and output range to ensure efficient operation and control:
Customer input terminals: These inputs are facilitated by two 24-point pluggable barrier terminals, providing an organized and accessible interface for customer-specific inputs
Nine passive pulse rate devices: These devices are distributed in the X//Z section, three in each section, with negative meter induction gears, thus enabling accurate measurement of turbine speed.
Jumper blocks for signal flapping: Jumper blocks play a key role in enabling a set of three-speed inputs to flap to all three PPROI/0 packets, optimizing signal distribution for uniform functionality.
125 VDC TMR Voting Output contacts: These output contacts, labeled H2A and H4A, are key components for system trip activation, ensuring fail-safe measures in the event of an emergency
Voltage Detection circuits :IS200TRPGH1BDE Four circuits from 24 to 125 VDC are dedicated to monitoring trip strings to improve system safety and reliability by continuously monitoring voltage levels.
Child board connectors: The inclusion of child board connectors allows for optional feature extensions, providing scalability and customization possibilities for additional or enhanced features.
