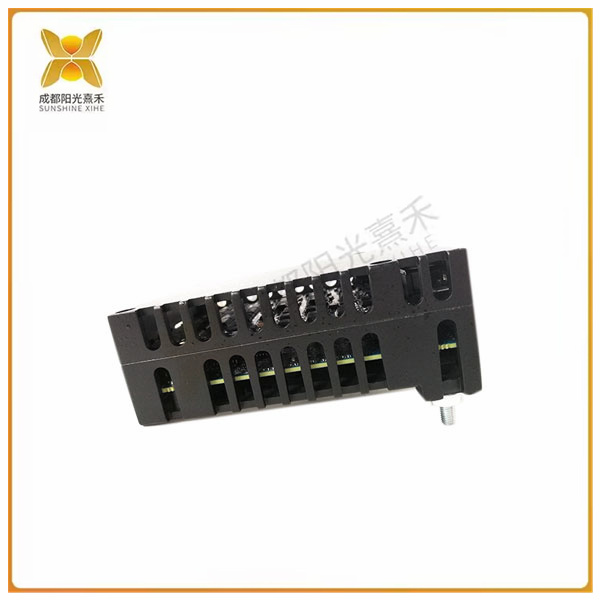

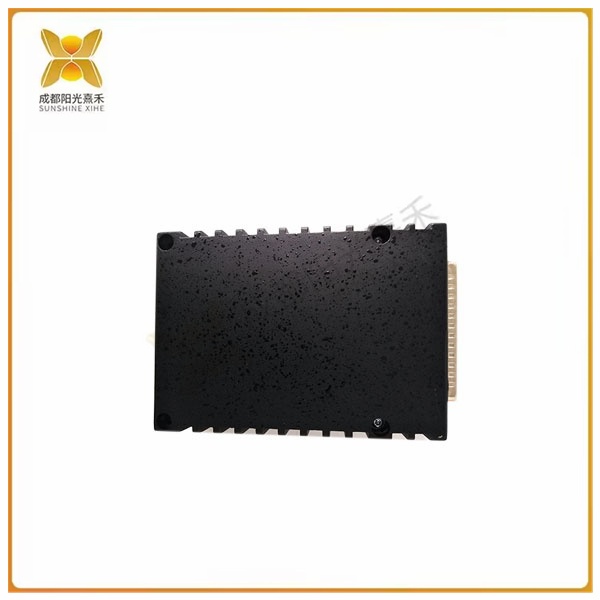

>>>>>型号:IS220PSVOH1B 伺服控制包 处理两个伺服阀位置环
【功能描述】
IS220PSVOH1B用作伺服控制包。该组件由GE为其Mark VI或Mark VIe系统制造。这两种系统都用于控制蒸汽轮机和燃气轮机系统。

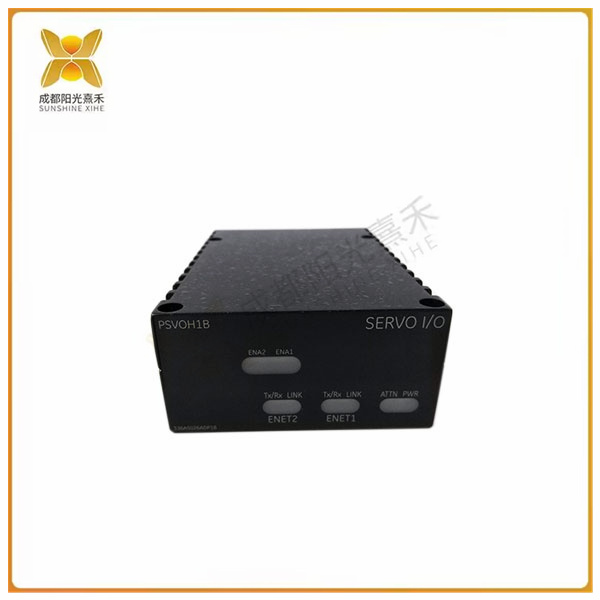

该IS220PSVOH1B在一个或两个I/O以太网网络和TSVO伺服端子板之间提供电气接口。该IS220PSVOH1B使用WSVO伺服驱动器模块来处理两个伺服阀位置环。PSVO有一个带有多个LED指示灯的前面板。其中包括四个指示两个以太网网络(ENet1/Enet2)状态的LED,以及一个电源和收件人LED,以及另外两个标记为ENA1/2的LED。正面还有一个红外端口,此包装中没有使用。
安装后,将使用Control System Toolbox应用程序配置该IS220PSVOH1B。该套件包括一个带有输入电源连接器的处理器板、本地电源和一个用于温度监控的内部传感器。该板还具有板载闪存和RAM。该板连接到采集板。
更换IS220PSVOH1B时可以自动重新配置。此选项可通过ToolboxST应用程序通过组件编辑器启用/禁用。组件编辑器还允许操作员根据需要手动重新配置模块。更换端子板时,必须手动重新配置I/O包。
伺服性能可以通过手动模式、位置斜坡或步进电流来抚摸执行器来验证。趋势记录器将显示执行器行程中的任何异常。有关该板的此部分和其他部分、其安装和操作以及可能的兼容性问题的更多信息,可以通过制造商用户指南和手册找到。
>>>>>型号:IS220PSVOH1B 伺服控制包 处理两个伺服阀位置环
【英文介绍】
IS220PSVOH1B is used as a servo control package. The component is manufactured by GE for its Mark VI or Mark VIe systems. Both systems are used to control steam turbine and gas turbine systems.
The IS220PSVOH1B provides an electrical interface between one or two I/O Ethernet networks and the TSVO servo terminal board. The IS220PSVOH1B uses the WSVO servo driver module to handle two servo valve position rings. The PSVO has a front panel with multiple LED indicators. These include four leds indicating the status of two Ethernet networks (ENet1/Enet2), as well as a power and recipient LED, and two more leds labeled ENA1/2. There is also an infrared port on the front that is not used in this package.
After installation, the IS220PSVOH1B is configured using the Control System Toolbox application. The kit includes a processor board with input power connectors, a local power supply, and an internal sensor for temperature monitoring. The board also has on-board flash memory and RAM. The board is connected to the acquisition board.
The IS220PSVOH1B can be automatically reconfigured when the IS220PSVoH1B is replaced. This option can be enabled/disabled through the component editor through the ToolboxST application. The component editor also allows the operator to manually reconfigure the module as needed. When replacing a terminal board, you must manually reconfigure the I/O packet.
Servo performance can be verified by stroking the actuator with manual mode, position ramp, or step current. The trend recorder will show any anomalies in the actuator travel. More information about this and other parts of the board, its installation and operation, and possible compatibility issues can be found in the manufacturer's user Guide and manual.
