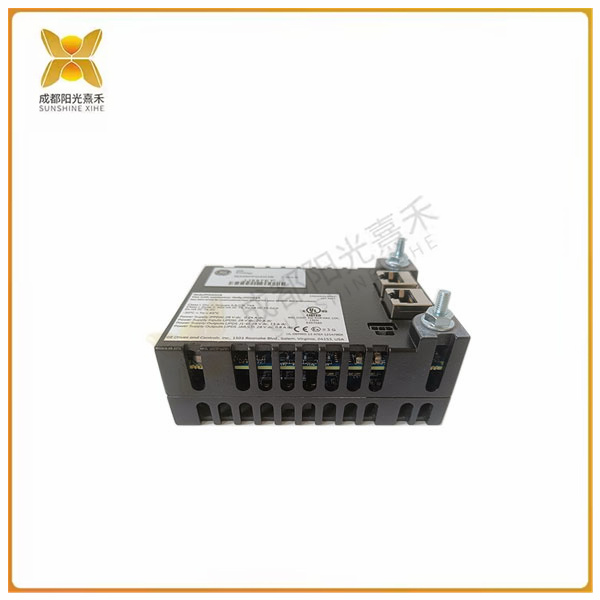

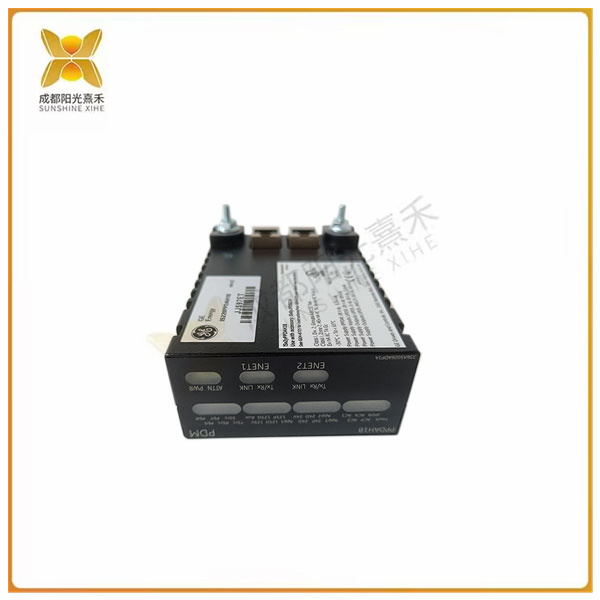

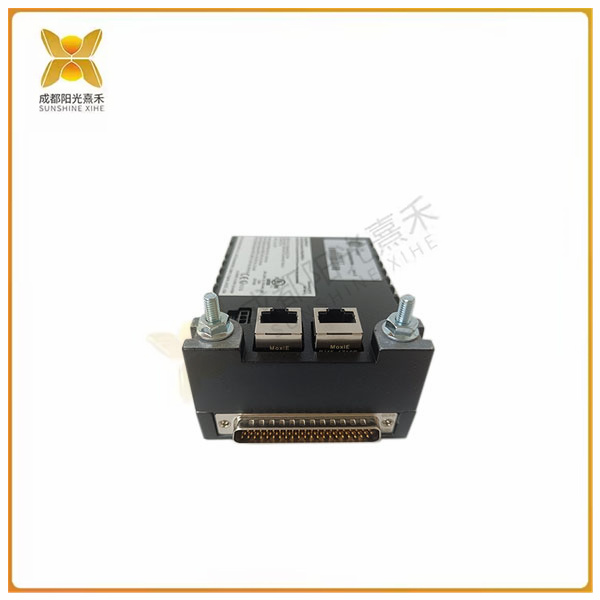

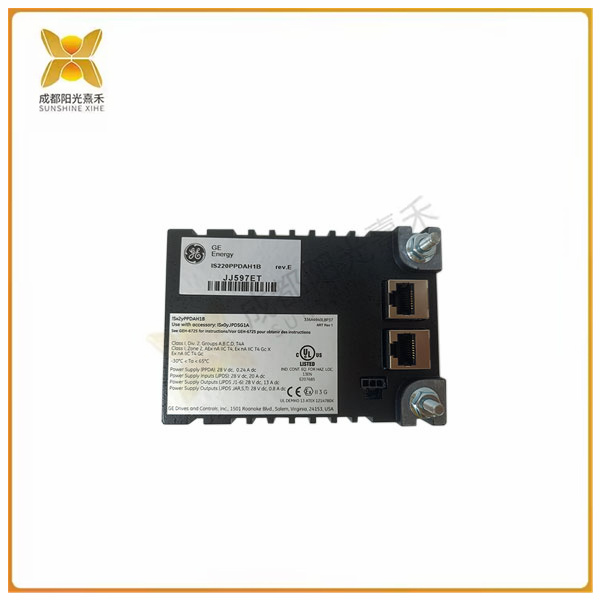

>>>>>型号:IS220PPDAH1B 配电系统反馈模型 调节电路板反馈信号
【功能描述】
IS220PPDAH1B板是通用电气为Mark VIe系统制作的配电系统反馈模型。该型号用于调节电路板反馈信号，还可以为连接的控制器提供以太网接口。此电池组的反馈安排为即插即用，它将使用它插入的电子ID来确定所连接配电型号的功率。来自配电模型的信息将继续用于占用IONet输出，以提供来自连接的正确反馈。
虽然IS220PPDAH1B包与JPDC、JPDS、JPDM和JPDG电源板兼容，但它仅与来自JPDB、JPDF和JPDE板的反馈信号兼容。通常，此PPDA包安装在以下板之一上;JPDM、JPDC或JPDS。通过使用50针带状电缆跳线通过引脚一对一连接器的接线，该电池组可以连接到更多电路板。
自动重新配置是IS220PPDAH1B包的主要操作组件之一。自动重新配置功能允许轻松更换I/O包，因为更换包无需重新配置。请注意，在进行自动重新配置时，用户在重新配置完成之前将无法重新启动。在重新配置过程中，无法进行其他需要进行的下载。
>>>>>型号:IS220PPDAH1B 配电系统反馈模型 调节电路板反馈信号
【英文介绍】
The IS220PPDAH1B board is a power distribution system feedback model developed by General Electric for the Mark VIe system. This model is used to regulate circuit board feedback signals and can also provide an Ethernet interface to the connected controller. The feedback arrangement of this battery pack is plug-and-play, and it will use the electronic ID it plugs in to determine the power of the connected distribution model. The information from the distribution model will continue to be used to occupy the IONet output to provide the correct feedback from the connection.
While the IS220PPDAH1B package is compatible with JPDC, JPDS, JPDM, and JPDG power boards, it is only compatible with feedback signals from JPDB, JPDF, and JPDE boards. Typically, this PPDA package is installed on one of the following boards; JPDM, JPDC, or JPDS. The battery pack can be connected to more circuit boards by wiring 50-pin ribbon cable jumpers through pin-to-pin connectors.
Automatic reconfiguration is one of the main operating components of the IS220PPDAH1B package. The automatic reconfiguration feature allows easy replacement of I/O packets, as replacement packets do not require reconfiguration. Note that when automatic reconfiguration is performed, the user will not be able to restart until the reconfiguration is complete. Other required downloads cannot be performed during the reconfiguration process.
>>>>>型号:IS220PPDAH1B 配电系统反馈模型 调节电路板反馈信号
