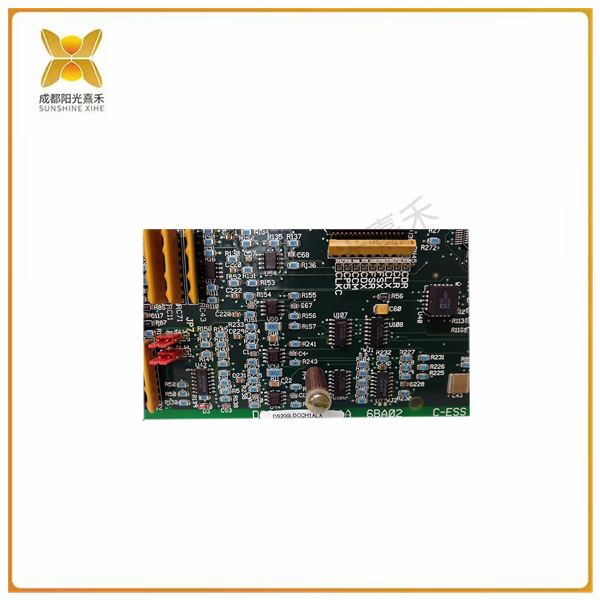

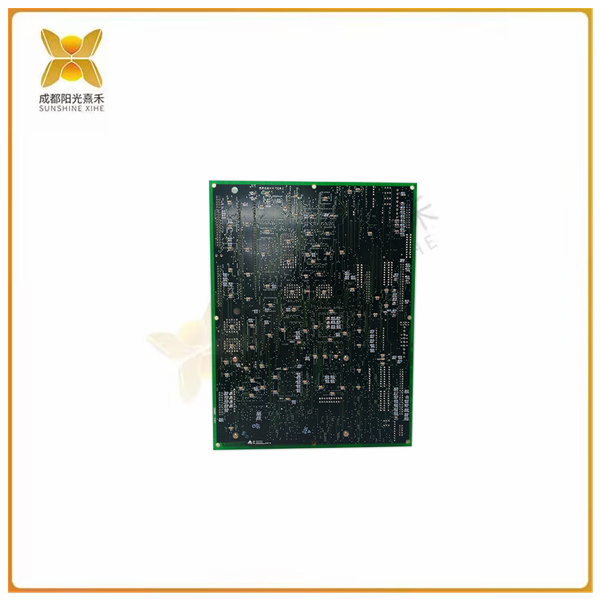

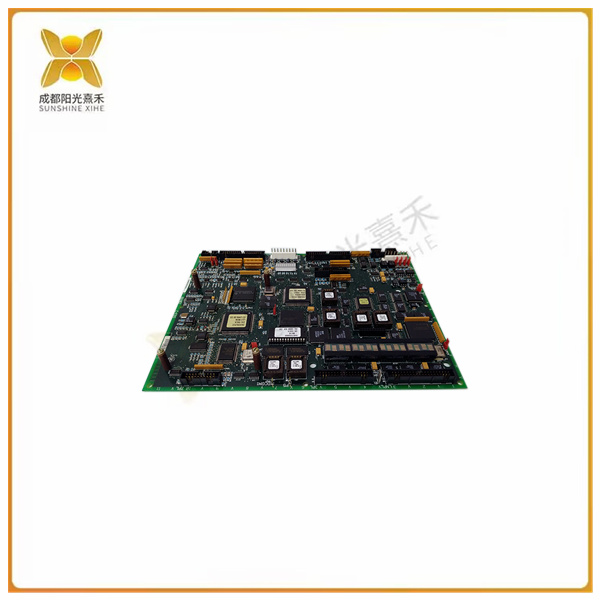

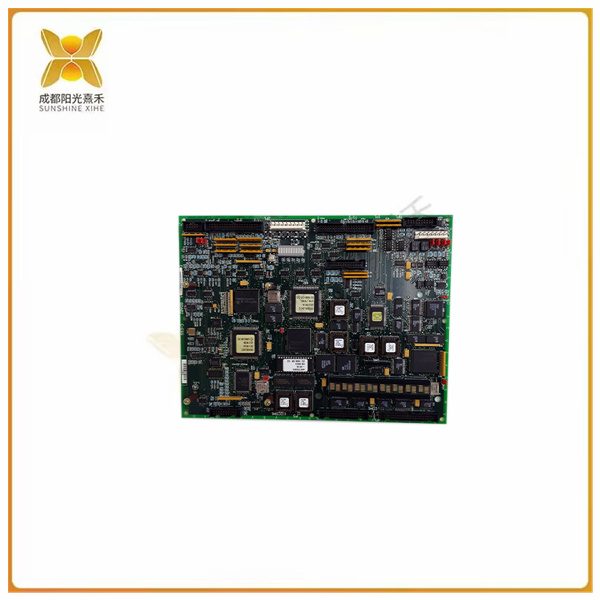

>>>>>型号:DS200LDCCH1ALA 驱动控制局域网通信板
【功能描述】
通用电气将DS200LDCCH1ALA板制造为驱动器控制和局域网 （LAN） 通信卡。 该卡是作为Mark V系列驱动板的成员而开发的。DIRECTO-MATIC 2000 系列的变频器被开发为将此卡安装在其变频器柜中。该板提供一系列功能，例如器件、电机和 I/O 控制功能。
该驱动控制和LAN通信板具有四个微处理器，用于过滤卡信号。发送到电路板的数字和模拟 I/O 由板载驱动控制处理器 （DCP） 接收和过滤。馈送到驱动器的 LAN 系统通过板载的 LAN 控制处理器 （LCP） 进行过滤。其余两个处理器，即电机控制处理器 （MCP） 和协电机处理器 （CMP），相互协同工作。MCP 为数字 I/O 通信提供初始处理空间。如果信号所需的计算量超过MCP提供的空间功率，CMP将补充处理能力。该板配有一个可连接的字母数字键盘。
>>>>>型号:DS200LDCCH1ALA 驱动控制局域网通信板
【英文介绍】
Ge manufactured the DS200LDCCH1ALA board as a driver control and local area network (LAN) communication card. The card was developed as a member of the Mark V Series driver board. DIRECTO-MATIC 2000 series drives were developed to have this card installed in their converter cabinet. The board offers a range of features such as device, motor and I/O control functions.
The driver control and LAN communication board has four microprocessors for filtering card signals. The digital and analog I/O sent to the board is received and filtered by the onboard Drive Control Processor (DCP). The LAN system fed to the drive is filtered through an onboard LAN control processor (LCP). The remaining two processors, the Motor control processor (MCP) and the Comotor processor (CMP), work in tandem with each other. MCP provides initial processing space for digital I/O communications. If the amount of computation required for the signal exceeds the spatial power provided by the MCP, the CMP will supplement the processing power. The board is equipped with a connectable alphanumeric keyboard.
