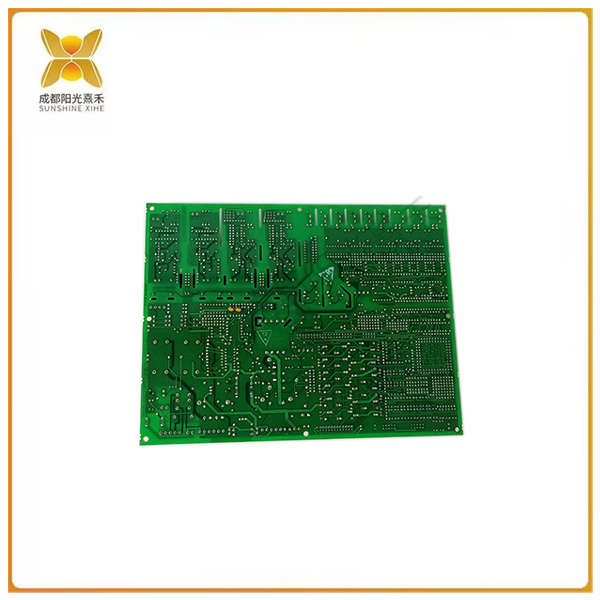

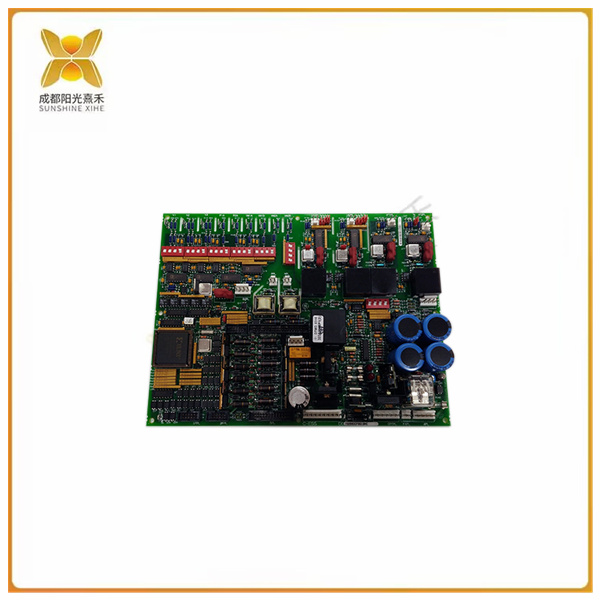

>>>>>型号:DS200DCFBG1BNC 电源板 励磁机和驱动器兼容
【功能描述】
DS200DCFBG1BNC 是为通用电气的 Mark V 系列替换板和可选板制造的电源板。DS200DCFBG1BNC电路板是 Speedtronic Mark V 控制系统的一部分。系统控制级电源以及机柜风扇由此卡供电。该卡与许多GE品牌的励磁机和驱动器兼容，可以安装在各种系统中。FC2000、AC2000、DC2000、ME2000 和 CB2000 系列的驱动器可以使用此板。馈入电路板的电压可在 38 至 115 VAC 范围内安全额定值。
DS200DCFBG1BNC电路板周围有五个电路。这些电路包括驱动电路、控制级电源电路、电机励磁电源电路以及交流和直流监控电路。为确保电路不中断，船上的三个保险丝受到保护。如果需要注意任何保险丝，集成的 LED 和霓虹灯指示灯将提醒用户。监控电压电平很重要，可以使用卡上的五个测试点之一来完成。用户可使用 12 个跳线和 7 个 DIP 开关进行配置。
>>>>>型号:DS200DCFBG1BNC 电源板 励磁机和驱动器兼容
【英文介绍】
The DS200DCFBG1BNC is a power supply board manufactured for General Electric's Mark V Series replacement boards and optional boards. The DS200DCFBG1BNC circuit board is part of the Speedtronic Mark V control system. The card supplies power to the system control power supply and the fan of the cabinet. The card is compatible with many GE branded exciters and drives and can be installed in a variety of systems. Drives in the FC2000, AC2000, DC2000, ME2000, and CB2000 series can use this board. The voltage fed into the board can be rated safely in the range of 38 to 115 VAC.
There are five circuits around the DS200DCFBG1BNC circuit board. These circuits include drive circuits, control level power supply circuits, motor excitation power supply circuits, and AC and DC monitoring circuits. To ensure that the circuit is not interrupted, the three fuses on the ship are protected. If any fuses need attention, integrated LED and neon indicators will alert the user. Monitoring voltage levels is important and can be done using one of the five test points on the card. The user can configure with 12 jumpers and 7 DIP switches.
