>>>>>型号:IS200VSVOH1B 伺服控制 以太网通信功能
【功能描述】
IS200VSVOH1B伺服控制具有以太网通信功能。
以太网通信功能是一种常见的通信方式,用于连接计算机、交换机、路由器等设备,实现数据的传输和共享。在IS200VSVOH1B伺服控制中,以太网通信功能允许设备之间进行高速、稳定的数据传输,实现远程监控、故障诊断、参数调整等功能。
需要注意的是,具体的应用和功能可能会因实际设计和应用需求而有所不同。因此,在使用IS200VSVOH1B伺服控制时,建议参考相关的技术文档和数据手册,以了解其详细的功能和应用范围。
IS200VSVOH1B是通用电气为Mark VI制造的电路板组件。Mark VI由GE发布,作为其长期运行且广受欢迎的Speedtronic燃气轮机/蒸汽轮机管理系列的一部分,该系列始于1960年代,当时该公司发布了Mark I系统。直到2000年代,随着Mark VI和Mark VIe的推出,这一系列涡轮机控制一直持续发展。Mark VI包括以太网通信功能、基于PC的操作界面以及专为涡轮机控制而设计的集成硬件和软件。

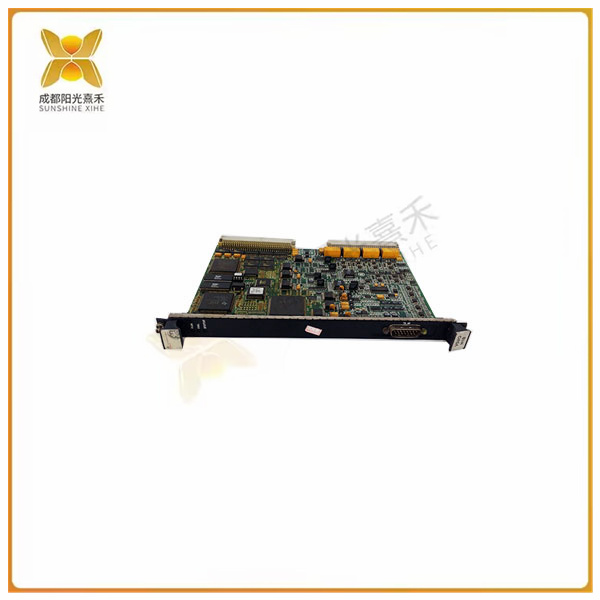

该IS200VSVOH1B用作伺服控制板。该板通过控制四个电液伺服阀来驱动燃料/蒸汽阀。该板还提供脉冲速率流量输入、LVDT激励和LVDT位置反馈。该IS200VSVOH1B可用于三重冗余系统,也可用于单工系统。
IS200VSVOH1B有一个连接到PCB的单插槽前面板。该面板包括一个电缆连接器(J5)以及用于状态信息的LED指示灯。前面板中的三个LED包括一个RUN灯(绿色)、一个FAIL灯(红色)和一个STATUS灯。STATUS指示灯通常未通电。但是,如果存在警报条件,则此LED将通电并显示为稳定的橙色。

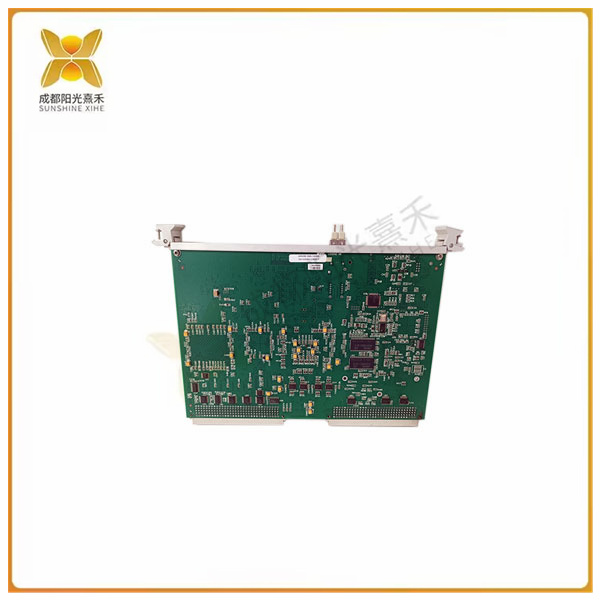

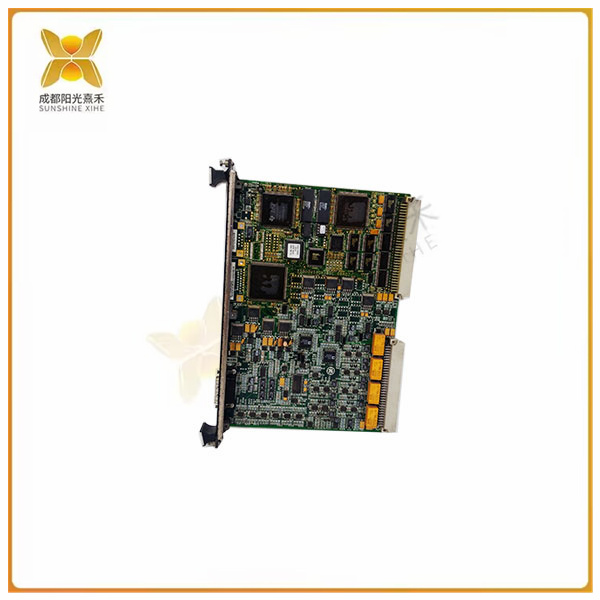

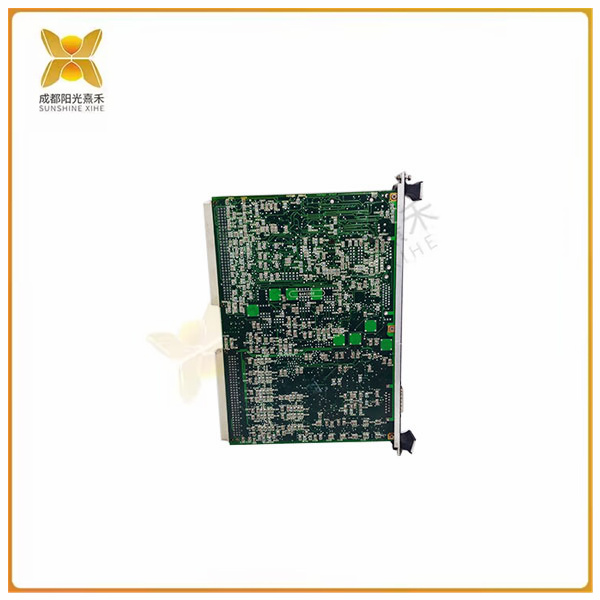

该IS200VSVOH1B有六个连接器,包括两个背板(P1/P2)和四个带导电走线的连接器(P3至P6)。该板包括四个继电器(K1到K4)。这些组件中的每一个在其顶面上都有一个打印的图表。该板装有电阻器、电容器和TP测试点。它还具有电感磁珠(L1-L10)。该板有70多个集成电路。
>>>>>型号:IS200VSVOH1B 伺服控制 以太网通信功能
【英文介绍】
IS200VSVOH1B servo control has Ethernet communication function.
Ethernet communication function is a common communication mode, which is used to connect computers, switches, routers and other devices to realize data transmission and sharing. In the IS200VSVOH1B servo control, the Ethernet communication function allows high-speed and stable data transmission between devices to achieve remote monitoring, fault diagnosis, parameter adjustment and other functions.
It is important to note that specific applications and features may vary depending on actual design and application requirements. Therefore, when using IS200VSVOH1B servo control, it is recommended to refer to the relevant technical documents and data manuals to understand its detailed functions and application scope.
The IS200VSVOH1B is a board component manufactured by General Electric for the Mark VI. The Mark VI was released by GE as part of its long-running and popular Speedtronic gas turbine/steam turbine management series, which began in the 1960s when the company released the Mark I system. This range of turbine controls continued to evolve until the 2000s with the introduction of Mark VI and Mark VIe. The Mark VI includes Ethernet communication capabilities, a PC-based operating interface, and integrated hardware and software designed specifically for turbine control.
The IS200VSVOH1B is used as a servo control board. The board drives the fuel/steam valve by controlling four electro-hydraulic servo valves. The board also provides pulse rate flow input, LVDT excitation, and LVDT position feedback. The IS200VSVOH1B can be used in triple-redundant systems, as well as simplex systems.
The IS200VSVOH1B has a single slot front panel connected to the PCB. The panel includes a cable connector (J5) and LED indicators for status information. The three leds in the front panel include a RUN light (green), a FAIL light (red), and a STATUS light. The STATUS indicator is usually not powered on. However, if an alarm condition is present, this LED will be powered on and display as a stable orange color.
The IS200VSVOH1B has six connectors, including two backplanes (P1/P2) and four connectors with conductive wires (P3 to P6). The board includes four relays (K1 to K4). Each of these components has a printed chart on its top surface. The board is equipped with a resistor, capacitor and TP test point. It also has an inductive magnetic bead (L1-L10). The board has more than 70 integrated circuits.
