>>>>>型号:IS200VCMIH2BEE 印刷电路板 单元数据高速公路
【功能描述】
IS200VCMIH2BEE是一款印刷电路板（PCB）单元，具有数据高速公路功能。
在PCB设计中，数据高速公路是用于传输高速数字信号的通道，通常用于连接多个芯片或模块之间的数据传输。IS200VCMIH2BEE作为PCB单元，可以提供高速、稳定的数据传输能力，以满足各种复杂的应用需求。
具体来说，IS200VCMIH2BEE印刷电路板单元可能具有以下特点：
高带宽：能够支持高速数据传输，满足高带宽应用的需求。
低延迟：具有低延迟特性，确保数据传输的实时性。
可靠性：采用高质量的材料和制造工艺，确保数据传输的稳定性和可靠性。
易于集成：具有易于集成的接口和连接器，方便与其他组件和模块连接。
可扩展性：能够支持多种接口和协议，满足未来扩展的需求。
需要注意的是，具体的应用和功能可能会因实际设计和应用需求而有所不同。因此，在使用IS200VCMIH2BEE印刷电路板单元时，建议参考相关的技术文档和数据手册，以了解其详细的功能和应用范围。
该IS200VCMIH2BEE由通用电气设计，作为其工业燃气轮机和蒸汽轮机控制系统Speedtronic Mark VI的一部分。此版本的Speedtronic系统通常用于加工厂和发电应用，以控制涡轮机启动期间的速度、同步发电机、提供涡轮机负载控制以及防止负载损失和涡轮机超速情况。
该IS200VCMIH2BEE是单元数据高速公路（UDH）的一部分。它用作主通信控制器板。数据通过光纤以太网（IONet）读取并传输到其他板。
VCMI板可设计用于单工或TMR（三重模块化冗余）应用。单工板有一个IONet端口，而TMR板将有三个。IS200VCMIH2BEE板是TMR板。
IS200VCMIH2BEE使用SIFT投票（软件实现的容错）。数据在一个数据包中广播到所有远程机架。这些远程位置的VCMI板提取适当的数据包数据。
IS200VCMIH2BEE是双面板。电路板的背面主要装有电阻器和电容器。电路板的正面更复杂，包括连接器端口（包括两个背板）、电感器/扼流圈、tp测试点和集成电路。连接的前面板有三个IONet端口以及一个公串行端口。它有一个复位按钮、两个固定螺钉和四组LED指示灯（一组3个、一组6个、一组8个和另一组3个）。面板上还标有公司徽标和主板编号。
>>>>>型号:IS200VCMIH2BEE 印刷电路板 单元数据高速公路
【英文介绍】
The IS200VCMIH2BEE is a printed circuit board (PCB) unit with data highway capabilities.
In PCB design, a data highway is a channel used to transmit high-speed digital signals, usually used to connect data transmission between multiple chips or modules. As a PCB unit, IS200VCMIH2BEE can provide high-speed, stable data transmission capability to meet the needs of a variety of complex applications.
Specifically, the IS200VCMIH2BEE printed circuit board unit may have the following characteristics:
High bandwidth: Supports high-speed data transmission to meet the requirements of high-bandwidth applications.
Low latency: It has low latency characteristics to ensure real-time data transmission.
Reliability: The use of high-quality materials and manufacturing processes to ensure the stability and reliability of data transmission.
Easy integration: Easy to integrate interfaces and connectors for easy connection with other components and modules.
Scalability: Can support a variety of interfaces and protocols to meet the needs of future expansion.
It is important to note that specific applications and features may vary depending on actual design and application requirements. Therefore, when using the IS200VCMIH2BEE printed circuit board unit, it is recommended to refer to the relevant technical documentation and data manual to understand its detailed function and application scope.
The IS200VCMIH2BEE was designed by General Electric as part of its Speedtronic Mark VI industrial gas turbine and steam turbine control system. This version of the Speedtronic system is commonly used in processing plants and power generation applications to control turbine speed during start-up, synchronize generators, provide turbine load control, and prevent load loss and turbine overspeed situations.
The IS200VCMIH2BEE is part of the Unit Data Highway (UDH). It is used as the main communication controller board. Data is read and transmitted to other boards via Fiber Optic Ethernet (IONet).
VCMI boards can be designed for simplex or TMR (Triple modular redundancy) applications. The simplex board will have one IONet port, while the TMR board will have three. The IS200VCMIH2BEE board is a TMR board.
IS200VCMIH2BEE uses SIFT voting (software-implemented fault tolerance). The data is broadcast to all remote racks in one packet. The VCMI board at these remote locations extracts the appropriate packet data.

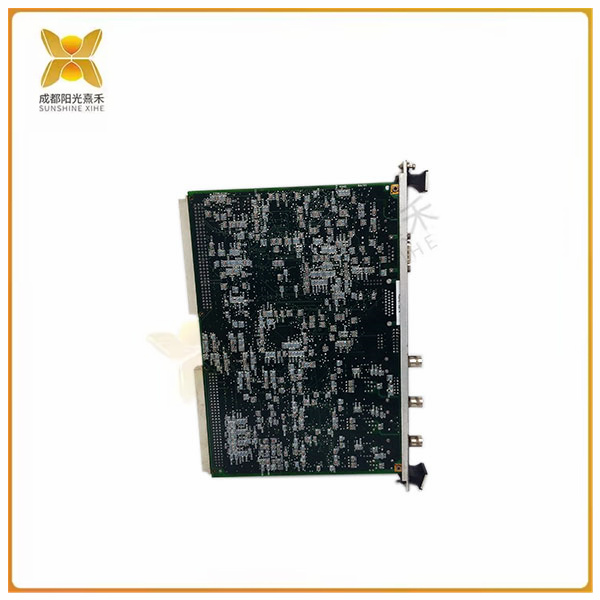

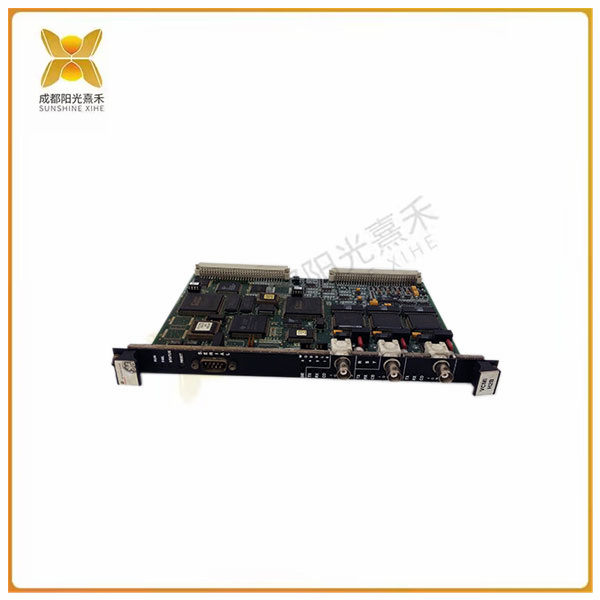

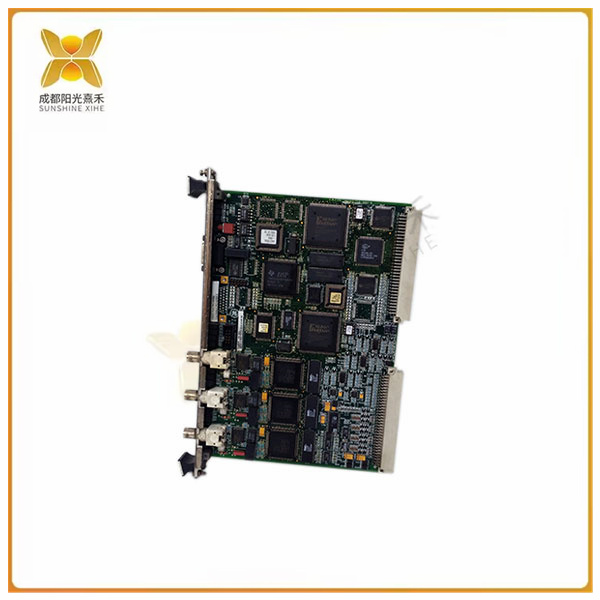

The IS200VCMIH2BEE is dual panel. The back of the circuit board is mainly equipped with resistors and capacitors. The front of the board is more complex and includes connector ports (including two backplanes), inductors/chokes, tp test points, and integrated circuits. The connected front panel has three IONet ports as well as a public serial port. It has a reset button, two setting screws, and four sets of LED indicators (one set of three, one set of six, one set of eight, and another set of three). The panel is also marked with the company logo and motherboard number.
