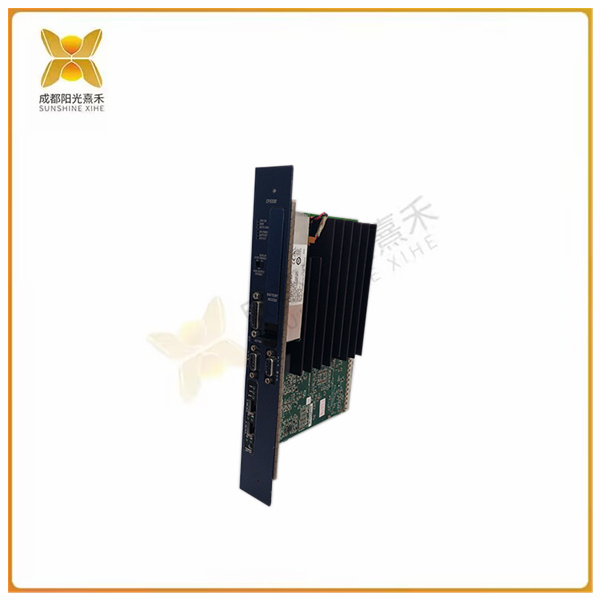

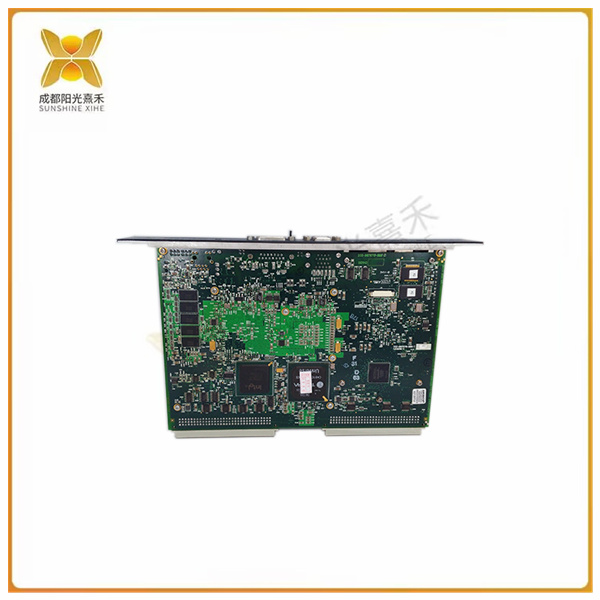

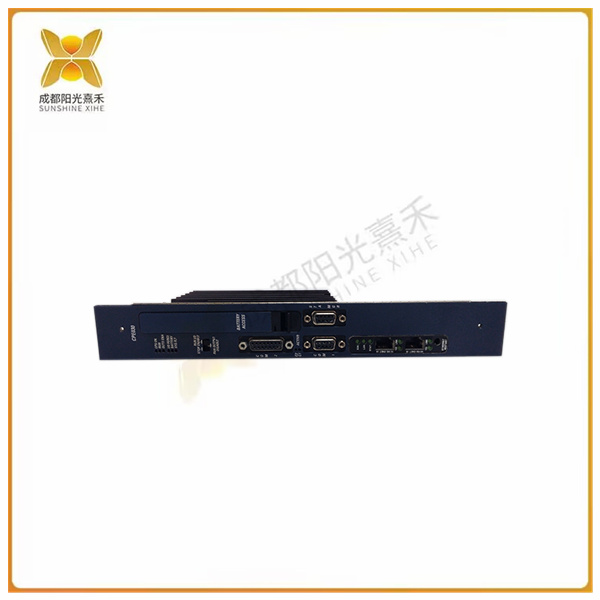

>>>>>型号:IC698CPE030 中央处理器 可配置数据/程序存储器
【功能描述】
IC698CPE030是GE Fanuc为RX7i系列生产的600 MHz CPU（中央处理器）。该IC698CPE030的部分功能包括电池供电的用户存储器和非易失性数据闪存、大容量存储器访问、可配置数据/程序存储器和自动定位符号变量等。该CPU支持90-70系列离散和模拟I/O、通信和其他模块，包括VME模块。
该CPU配备Pentium-M微处理器。它具有64 MB的用户内存和用户闪存。作为RX7i CPU，IC698CPE030配置为实时控制流程和物料搬运结构。IC698CPE030单元通过采用VME64标准格式的机架安装背板与I/O和智能选件模块进行通信。为了与编程器和不同的HMI设备进行通信，使用了嵌入式以太网端口。使用SNP Slave协议的串行端口也可用于通信。
通电后，IC698CPE030开始进行完整的自诊断检查。在初始化过程中，LED灯将按特定顺序发出ON或OFF状态。初始化过程完成后，OK LED灯将闪烁，然后亮起。
为避免内存丢失，例行维护步骤应由用户启动。锂电池组（第IC698ACC701部分）应按计划更换。这很重要，因为CPU的电池维护程序和数据存储器。此外，如果断电，它会运行日历时钟。
该CPU标配三个隔离串行端口：RS-485串行端口、RS-232串行端口和RS-232以太网站管理器串行端口。
>>>>>型号:IC698CPE030 中央处理器 可配置数据/程序存储器
【英文介绍】
The IC698CPE030 is a 600 MHz CPU (central processing unit) produced by GE Fanuc for the RX7i series. Some of the features of the IC698CPE030 include battery-powered user memory and non-volatile data flash memory, mass memory access, configurable data/program memory, and automatic positioning of symbol variables. The CPU supports the 90-70 series discrete and analog I/O, communication, and other modules, including the VME module.
The CPU is equipped with a Pentium-M microprocessor. It has 64 MB of user memory and user flash memory. As an RX7i CPU, the IC698CPE030 is configured for real-time control of processes and material handling structures. The IC698CPE030 unit communicates with the I/O and smart option modules through a rack-mounted backplane in the VME64 standard format. In order to communicate with programmers and different HMI devices, an embedded Ethernet port is used. Serial ports using the SNP Slave protocol can also be used for communication.
When powered on, the IC698CPE030 begins a complete self-diagnostic examination. During initialization, the LED lights will emit ON or OFF states in a specific order. After the initialization process is complete, the OK LED light will flash and then light up.
To avoid memory loss, routine maintenance should be initiated by users. The lithium battery pack (Part IC698ACC701) shall be replaced as scheduled. This is important because of the CPU's battery maintenance program and data storage. In addition, it will run the calendar clock if the power is off.
The CPU comes standard with three isolated serial ports: RS-485 serial port, RS-232 serial port, and RS-232 Ethernet web Manager serial port.
