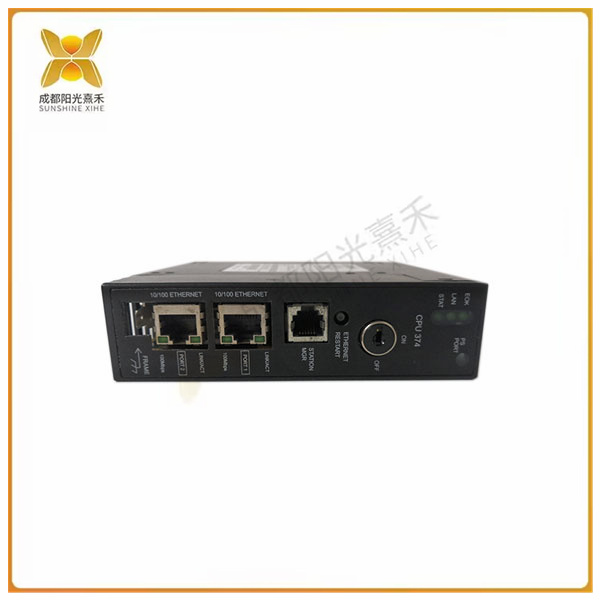

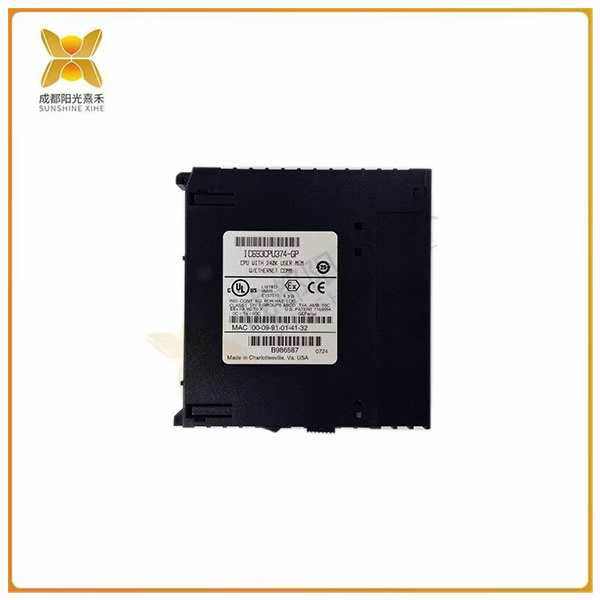

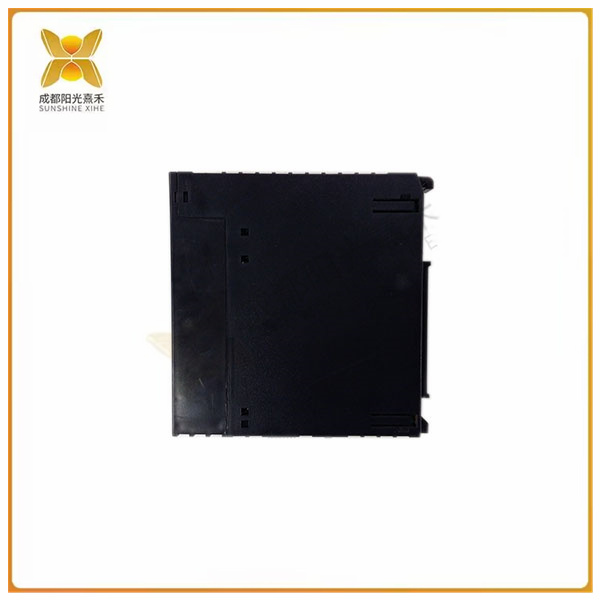

>>>>>型号:IC693CPU374 单插槽CPU模块 嵌入了以太网接口
【功能描述】
产品信息
一般：GE Fanuc IC693CPU374是一款单插槽CPU模块，处理器速度为133 MHz。该模块嵌入了以太网接口。
内存：IC693CPU374使用的用户内存总量为240 KB。与用户程序存储器相关的实际大小主要取决于配置的存储器类型，例如寄存器存储器（%R）、模拟输入（%AI）和模拟输出（%AO）。为每种内存类型配置的内存量为128到大约32,640个字。
功率：IC693CPU374所需的功率为7.4V直流电压tage.它还支持供电时的RS-485端口
。当通过此端口供电时，此模块支持协议SNP和SNPX。
操作：该模块在0°C至60°C的环境温度范围内运行。储存所需的温度在-40°C至+85°C之间。
特点：IC693CPU374配备了两个以太网端口，都具有自动感应功能。该模块每个系统有八个底板，包括一个CPU底板。其余7个是扩展或远程底板，与可编程通信协处理器兼容。
电池：IC693CPU374模块的备用电池可以运行几个月。内置电池可作为电源长达1.2个月，可选的外部电池可支持模块长达12个月。
90-30系列IC693CPU374模块是GE Fanuc制造的单插槽CPU（AMD SC250），带有嵌入式以太网控制器。此CPU 374模块配备240 KB用户可配置内存、4K I/O和8个机架。嵌入式以太网控制器支持高达100 Mbps的通信速度，并配有内置交换机。它支持SRTP和以太网全局数据以及Modbus/TCP客户端/服务器协议。此模块中没有串行端口。该处理器具有133 Mhz的速度，典型扫描速率为每1K逻辑0.15毫秒。它带有用于存储的RAM和闪存。IC693CPU374模块的额定功率为7.4瓦，并提供5伏直流电压。操作时，环境温度应设置在0至60摄氏度之间。不使用时，它可以存放在-40到85摄氏度的温度下。
GE Fanuc 90-30系列IC693CPU374模块带有2048个固定的离散输入和输出点。它具有1280位的离散全局存储容量。该模块的寄存器存储器可配置为128至32640字。CPU中有28个固定系统寄存器，带有定时器和计数器。CPU模块由电池供电，为系统时钟和RAM供电。IC693CPU374模块配备一个CPU底板和7个扩展或远程底板。CPU支持不同的编程语言，并且可以处理浮点数据。可以使用VersaPro或CIMPLICITY机器版逻辑软件对其进行配置。
>>>>>型号:IC693CPU374 单插槽CPU模块 嵌入了以太网接口
【英文介绍】
Product information
General: The GE Fanuc IC693CPU374 is a single-slot CPU module with a processor speed of 133 MHz. The module is embedded with an Ethernet interface.
Memory: The total user memory used by the IC693CPU374 is 240 KB. The actual size associated with the user program memory mainly depends on the type of memory configured, such as register memory (%R), analog input (%AI), and analog output (%AO). The amount of memory configured for each memory type ranges from 128 to approximately 32,640 words.
Power: IC693CPU374 requires a 7.4V DC voltage tage. It also supports an RS-485 port when powered. When powered through this port, this module supports protocols SNP and SNPX.
Operation: The module operates in an ambient temperature range of 0°C to 60°C. The temperature required for storage is between -40°C and +85°C.
Features: The IC693CPU374 is equipped with two Ethernet ports, both with automatic sensing function. The module has eight backboards per system, including a CPU backboard. The remaining seven are extended or remote backboards that are compatible with programmable communication coprocessors.
Battery: The backup battery of the IC693CPU374 module can run for several months. The built-in battery can be used as a power source for up to 1.2 months, and an optional external battery can support the module for up to 12 months.
The 90-30 Series IC693CPU374 module is a single socket CPU (AMD SC250) manufactured by GE Fanuc with an embedded Ethernet controller. This CPU 374 module comes with 240 KB of user-configurable memory, 4K I/O, and eight racks. The embedded Ethernet controller supports communication speeds of up to 100 Mbps and comes with a built-in switch. It supports SRTP and Ethernet global data as well as Modbus/TCP client/server protocols. There is no serial port in this module. The processor has a speed of 133 Mhz and a typical scan rate of 0.15 milliseconds per 1K of logic. It comes with RAM and flash memory for storage. The IC693CPU374 module is rated at 7.4 watts and provides 5 volts DC. When operating, the ambient temperature should be set between 0 and 60 degrees Celsius. When not in use, it can be stored at a temperature of -40 to 85 degrees Celsius.
The GE Fanuc 90-30 Series IC693CPU374 module comes with 2048 fixed discrete input and output points. It has a discrete global storage capacity of 1280 bits. The module's register memory can be configured from 128 to 32640 words. There are 28 fixed system registers in the CPU, with timers and counters. The CPU module is battery-powered, powering the system clock and RAM. The IC693CPU374 module is equipped with one CPU backboard and seven expansion or remote backboards. The CPU supports different programming languages and can handle floating-point data. It can be configured using the VersaPro or CIMPLICITY machine edition logic software.
