>>>>>型号:IC693CPU372 以太网通信接口 用于实现以太网通信
【功能描述】
IC693CPU372是TCP I/P以太网通信接口。该模块主要用于实现以太网通信，并支持Modbus TCP服务器/客户端和工业以太网等系统协议。该模块可用于使用以太网全局数据（EGD）、SRTP和SRTP客户端定期执行数据交换。
该IC693CPU372支持完整的PLC编程和配置服务。它带有共享相同IP地址的双以太网端口，可用作内部以太网交换机，允许菊花链连接以实现网络和设备级环网（DLR）拓扑。每个端口都支持网络自动感应，无需将模块分配给现有网络的速度。
该IC693CPU372配备了时钟速度为133 MHz的专用处理器。对于配置，内置的Web服务器允许远程连接配置站，该站可用于将简单的配置引入模块以及模块监控。对于可编程逻辑控制器（PLC）功能的编程，IC693CPU372使用Proficy Machine Edition软件包的PLC Logic Developer的Machine版本进行配置。
IC693CPU372支持它支持2048个离散输入、2048个离散输出、128-32,640个模拟输入字和128-32640个模拟输出字（最大），总用户内存为240 KB。此内置内存为随机存取存储器（RAM）类型，由电池备份。可选的非易失性存储器可以添加或闪存，以提供不需要电池能量来保留存储器内容的存储器。
IC693CPU372模块由GE Fanuc设计和制造。该工业通信模块用于通过TCP/IP协议运行的工业以太网网络进行通信。该装置与90-30系列或VersaMax系列提供的GE PLC设备兼容，或与PACSystems中的PLC设备兼容。IC693CPU372模块具有用于以太网通信的集成接口，可与安装了所有必要软件工具的主机一起使用。以太网接口支持多达3个不同的90-30系列模块，可提供额外的功能。90-30系列可编程逻辑控制器的背板可以使用组合模块来提高整个系统的性能。

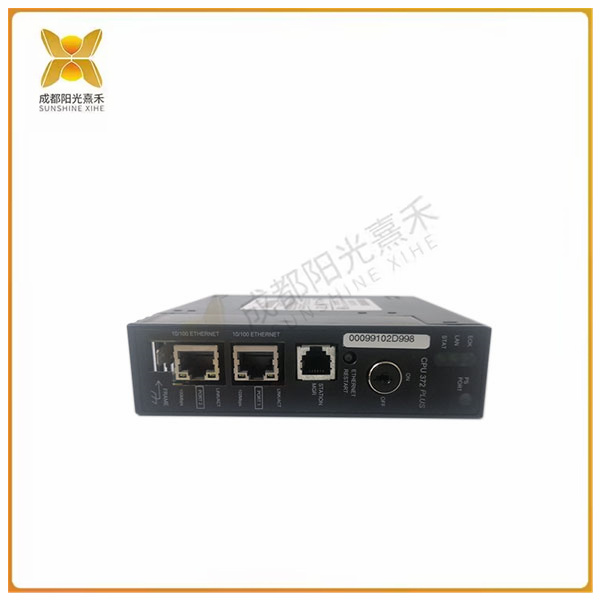

IC693CPU372通信模块具有2048个输入/输出点，并提供240 KB的存储容量。与该系列中的大多数类似组件一样，该模块具有80386EX型处理器，旨在用于32位系统。该装置支持通过100BaseTX、IEEE 802.3和10BaseT网络等流行网络进行通信。为此，该装置包括2个具有自动感应功能的屏蔽以太网端口。该装置有一对以太网连接器、一个Station Manager功能连接器、LED状态指示灯、一个主开关和一个重启按钮。IC693CPU372模块支持浮点数学运算、双工模式、简单的配置和编程以及SRTP服务器选项。IC693CPU372模块的处理器工作在133兆赫兹，它支持RAM或闪存进行存储。该装置使用备用电池运行，在7.4伏直流电下需要5瓦。
>>>>>型号:IC693CPU372 以太网通信接口 用于实现以太网通信
>>>>>型号:IC693CPU372 以太网通信接口 用于实现以太网通信
【英文介绍】
IC693CPU372 is a TCP I/P Ethernet communication interface. The module is mainly used to implement Ethernet communication and supports system protocols such as Modbus TCP server/client and industrial Ethernet. The module can be used to perform regular data exchange using Ethernet Global Data (EGD), SRTP, and SRTP clients.
The IC693CPU372 supports full PLC programming and configuration services. It comes with dual Ethernet ports that share the same IP address and can be used as an internal Ethernet switch, allowing daisy-chain connectivity for network and device-level ring network (DLR) topologies. Each port supports network automatic sensing, eliminating the need to assign modules to existing network speeds.
The IC693CPU372 comes with a dedicated processor with a clock speed of 133 MHz. For configuration, the built-in Web server allows remote connection to the configuration station, which can be used to introduce simple configuration into the module as well as module monitoring. For programming programmable Logic controller (PLC) functions, the IC693CPU372 is configured using the Machine version of PLC Logic Developer in the Proficy Machine Edition package.
IC693CPU372 Support It supports 2048 discrete inputs, 2048 discrete outputs, 128-32,640 analog input words, and 128-32,640 analog output words (Max.) for a total user memory of 240 KB. This internal memory is of the random access memory (RAM) type and is backed up by the battery. Optional non-volatile memory can be added or flash to provide memory that does not require battery power to retain the contents of the memory.
The IC693CPU372 module is designed and manufactured by GE Fanuc. The industrial communication module is used to communicate over an industrial Ethernet network running over the TCP/IP protocol. The unit is compatible with GE PLC equipment provided in the 90-30 series or VersaMax series, or with PLC equipment in PACSystems. The IC693CPU372 module has an integrated interface for Ethernet communication and can be used with hosts that have all the necessary software tools installed. The Ethernet interface supports up to 3 different 90-30 series modules to provide additional functionality. The backplane of the 90-30 series programmable logic controllers can use combination modules to improve the performance of the entire system.
The IC693CPU372 communication module has 2048 input/output points and provides 240 KB of storage capacity. Like most similar components in the series, the module has a type 80386EX processor and is intended for use in 32-bit systems. The device supports communication over popular networks such as 100BaseTX, IEEE 802.3, and 10BaseT networks. For this purpose, the device includes two shielded Ethernet ports with automatic sensing functions. The unit has a pair of Ethernet connectors, a Station Manager functional connector, LED status indicators, a master switch, and a restart button. The IC693CPU372 module supports floating point math, duplex mode, simple configuration and programming, and SRTP server options. The processor of the IC693CPU372 module operates at 133 MHZ, and it supports RAM or flash memory for storage. The unit runs on a backup battery and requires 5 watts at 7.4 volts direct current.
