>>>>>型号:DS200TCTGG1AFF 装有 21 个插入式继电器
【功能描述】

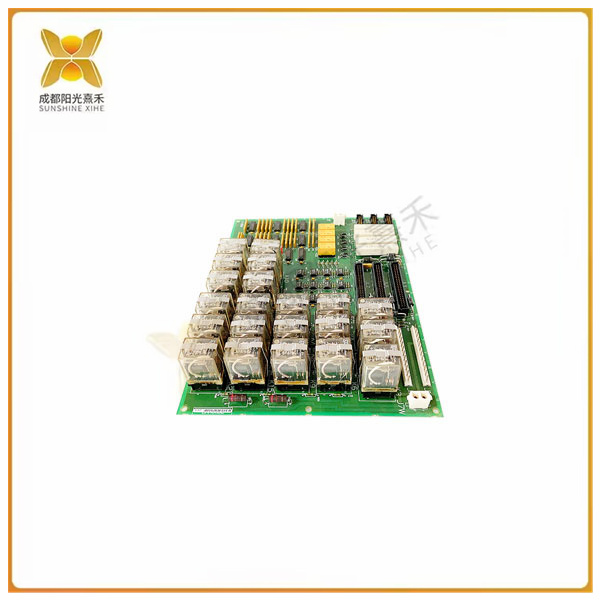

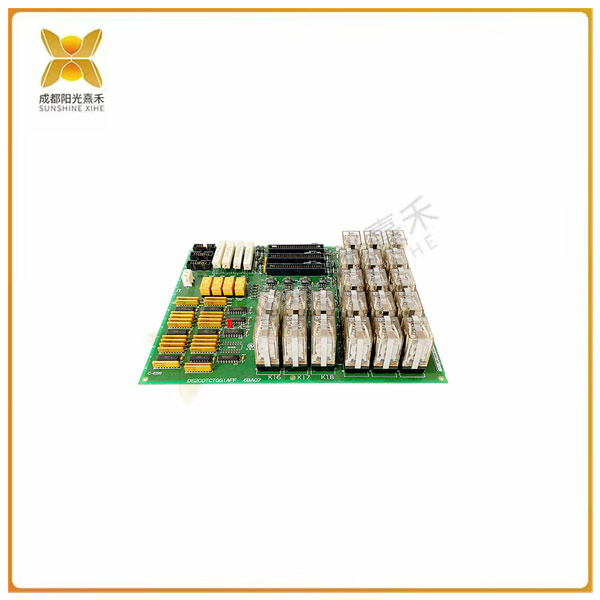

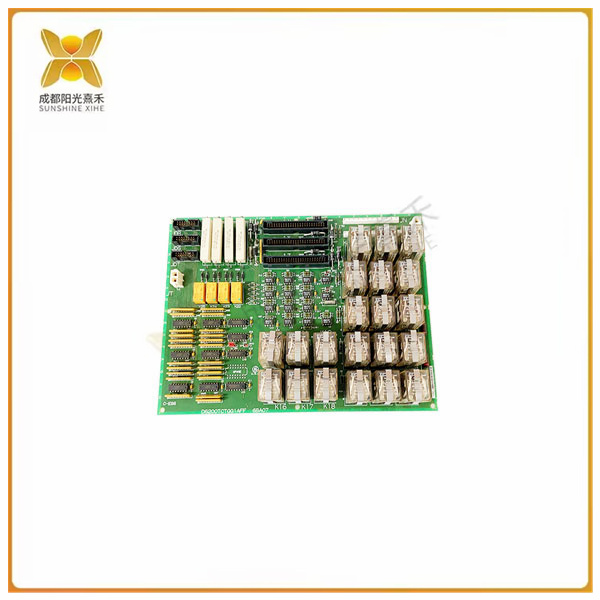

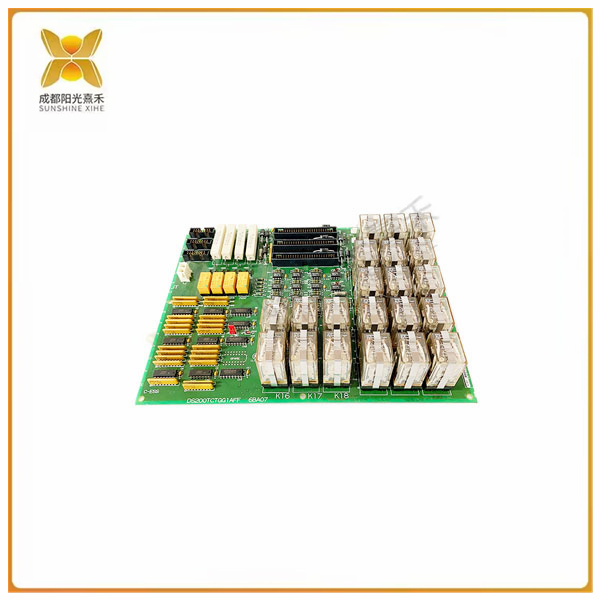

GE Simplex Trip Board DS200TCTGG1AFF装有 21 个插入式继电器。它还具有 3 个 50 针连接器和 2 个 12 针连接器。分配给 50 针连接器的 ID 为 JLY、JLX 和 JLZ。分配给 12 针连接器的 ID 是 JN 和 JM。
21 个插入式继电器的 ID 以 K 为前缀，以数字结尾。数字按从 1 开始的顺序排列。一些 ID 是 K1、K5、K10 和 K21。继电器卡入电路板上，并用金属带帮助就位。要卸下继电器，请拆下金属带并将继电器从连接器中拉出。要安装继电器，请将其与连接器对齐并将其压入连接器。然后，将金属带的一端夹到连接器上，将金属带排列在继电器的顶部，然后将其夹在连接器的另一侧。
DS200TCTGG1AFF。与熟悉驱动器安装并具有连接到驱动器的电源经验的工程师或安装人员进行沟通。通过断开保险丝或根据需要通过其他方式禁用电源。在继续操作之前，请使用测试设备测试驱动器内部的电流。断开电缆与主板的连接，并绘制电缆的位置图，以便在重新安装主板时将电缆连接到正确的连接器。
>>>>>型号:DS200TCTGG1AFF 装有 21 个插入式继电器
【英文介绍】
The GE Simplex Trip Board DS200TCTGG1AFF is equipped with 21 plug-in relays. It also features three 50-pin connectors and two 12-pin connectors. The ids assigned to 50-pin connectors are JLY, JLX, and JLZ. The ids assigned to the 12-pin connector are JN and JM.
The ID of the 21 plug-in relays is prefixed with K and ends with a number. The numbers are listed in order starting from 1. Some ids are K1, K5, K10, and K21. The relay snaps into the circuit board and is helped in place by a metal strap. To remove the relay, remove the metal band and pull the relay out of the connector. To install the relay, align it with the connector and press it into the connector. Then, clip one end of the metal band to the connector, arrange the metal band on top of the relay, and clip it to the other side of the connector.
DS200TCTGG1AFF. Talk to an engineer or installer who is familiar with driver installation and has experience with the power supply connected to the drive. Disable the power supply by disconnecting the fuse or by other means as needed. Before proceeding, test the current inside the drive using a test device. Disconnect the cable from the motherboard and plot the cable's location so that you can connect the cable to the correct connector when reinstalling the motherboard.
