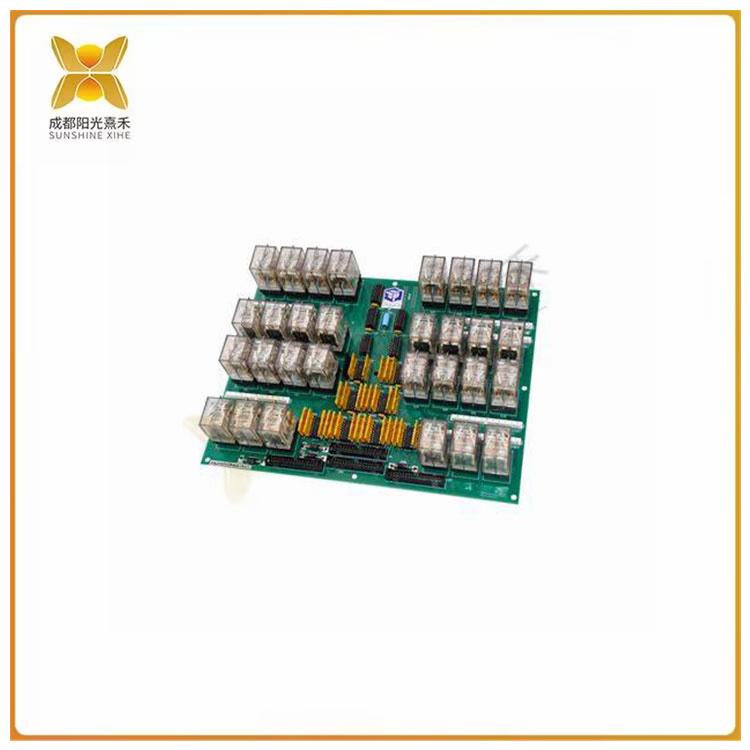

>>>>>型号:DS200TCRAG1ACC 继电器输出板 装有30个插入式继电器
【功能描述】
GE继电器输出板DS200TCRAG1ACC装有30个插入式继电器。它还具有 4 个 34 针连接器和 4 个 12 针连接器。分配给 34 针连接器的 ID 为 JOR、JOS、JOT 和 JO。分配给 12 针连接器的 ID 为 JS3、JS4、JS5 和 JS6。由于 GE 继电器输出板DS200TCRAG1ACC上有多个连接器，因此必须遵循准则以确保您可以快速将电缆连接到替换板上的正确连接器。在开始更换之前，请确保您知道提供给驱动器的电流的紧急关闭装置的位置。而且，您必须了解如何操作关闭并验证其是否处于良好的工作状态。熟悉驱动器安装的人员将获得有关电源和紧急切断的详细信息。下一步是验证驱动器周围区域的地板是否清洁且没有湿气或积水。使用清洁剂清除地板上的油或油脂。您还应该拔下所有未接地的两芯电源线，因为有触电的危险。
>>>>>型号:DS200TCRAG1ACC 继电器输出板 装有30个插入式继电器
【英文介绍】
The GE relay output board DS200TCRAG1ACC contains 30 plug-in relays. It also features four 34-pin connectors and four 12-pin connectors. The ids assigned to the 34-pin connector are JOR, JOS, JOT, and JO. The ids assigned to 12-pin connectors are JS3, JS4, JS5, and JS6. Because there are multiple connectors on the GE relay output board DS200TCRAG1ACC, guidelines must be followed to ensure that you can quickly connect the cable to the correct connector on the replacement board. Before starting the replacement, make sure you know the location of the emergency shut-off device for the current supplied to the drive. Moreover, you must understand how to operate the shutdown and verify that it is in good working order. Those who are familiar with the installation of the drive will get detailed information on power supply and emergency cut-off. The next step is to verify that the floor in the area around the drive is clean and free of moisture or standing water. Use a cleaner to remove oil or grease from the floor. You should also unplug all ungrounded two-core power cords, as there is a risk of electric shock.
