>>>>>型号:DS200DCFBG1BNC 替换和可选板制造的电源板
【功能描述】

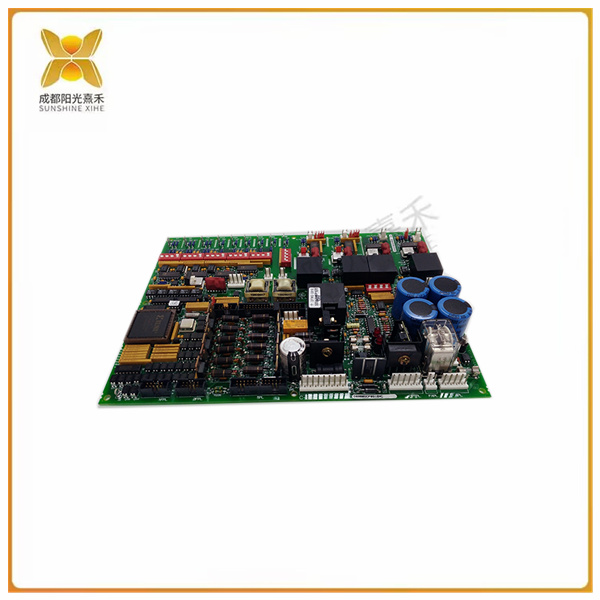

该DS200DCFBG1BNC是为通用电气的 Mark V 系列替换和可选板制造的电源板。DS200DCFBG1BNC电路板是 Speedtronic Mark V 控制系统的一部分。系统控制级电源以及机柜风扇由此卡供电。该卡与许多GE品牌的励磁机和驱动器兼容，可以安装在各种系统中。FC2000、AC2000、DC2000、ME2000 和 CB2000 系列的驱动器可以使用此板。馈入电路板的电压可以安全地额定为 38 至 115 VAC。
DS200DCFBG1BNC包括围绕电路板的五个电路。其中包括驱动器电路、控制级电源电路、电机现场电源电路以及交流和直流监控电路。为确保电路不中断，板上的三个保险丝受到保护。如果有任何保险丝需要注意，集成的 LED 和霓虹灯指示灯会提醒用户。监测电压电平很重要，可以使用卡上的五个测试点之一来完成。用户可使用 12 个跳线和 7 个 DIP 开关进行配置。
应满足主板和驱动器随附的安装参数。遵循这些操作将确保DS200DCFBG1BNC和驱动器按预期运行。设备的手册和数据表中提供了有关电路板接线和安装板的图解指南。
>>>>>型号:DS200DCFBG1BNC 替换和可选板制造的电源板
【英文介绍】
The DS200DCFBG1BNC is a power board manufactured for General Electric's Mark V Series replacement and optional boards. The DS200DCFBG1BNC circuit board is part of the Speedtronic Mark V control system. The card supplies power to the system control power supply and the fan of the cabinet. The card is compatible with many GE branded exciters and drives and can be installed in a variety of systems. Drives in the FC2000, AC2000, DC2000, ME2000, and CB2000 series can use this board. The voltage fed into the board can be safely rated from 38 to 115 VAC.
The DS200DCFBG1BNC consists of five circuits surrounding the board. These include driver circuits, control level power circuits, motor field power circuits, and AC and DC monitoring circuits. To ensure that the circuit is not interrupted, the three fuses on the board are protected. Integrated LED and neon indicators alert users if there are any fuses that need attention. Monitoring voltage levels is important and can be done using one of the five test points on the card. The user can configure with 12 jumpers and 7 DIP switches.
The installation parameters included with the motherboard and driver should be met. Following these actions will ensure that the DS200DCFBG1BNC and the drive operate as expected. Illustrated instructions for circuit board wiring and mounting boards are provided in the equipment's manual and data sheet.
