>>>>>型号:DS200DCFBG1BLC 电源板 提供系统控制级电源
【功能描述】

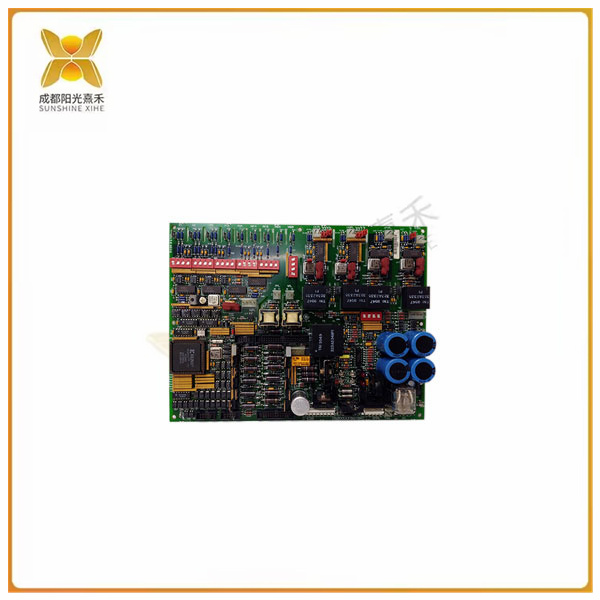

DS200DCFBG1BLC是通用电气为Mark V系列选装板和替换板设计的电源板。该系列的成员与许多GE品牌的励磁器和驱动器交叉兼容。DC2000、AC2000、CB2000、ME2000 和 FC2000 的驱动器都可以接受此电源板。该卡为其安装的驱动器提供系统控制级电源，并为机柜风扇提供电源。该板的源交流输入的额定电压为 38 至 115 VAC。该 VAC 随附的频率范围为 0 至 500 kHz，具体取决于输入电压的强度。
DS200DCFBG1BLC包含许多复杂的电路系统，旨在为大部分驱动器供电。该卡包括交流和直流监控电路、控制级电源电路、电机现场电源电路和驱动器电路。用户可以在卡上配置 12 个跳线和 7 个 DIP 开关，以满足任何外部要求。电路板状态通过板载指示器传达给用户。卡内置两个 LED 和一个霓虹灯指示灯，为用户提供重要的诊断和状态信息。 电路板的三个保险丝受到保护，确保中断或浪涌不会中断电流。请务必使用集成在电路板中的五个测试点定期监控电压电平。
必须遵循DS200DCFBG1BLC和驱动器提供的安装参数。这些指南将确保电路板及其安装的系统按预期运行。 有关接线和安装指南，请参阅系列手册以及设备数据表。 Mark V 系列中所有主板的技术支持最初由制造商通用电气提供。
>>>>>型号:DS200DCFBG1BLC 电源板 提供系统控制级电源
【英文介绍】
The DS200DCFBG1BLC is a power board designed by General Electric for the Mark V Series optional and replacement boards. Members of the family are cross-compatible with many GE branded exciters and drivers. The drives of DC2000, AC2000, CB2000, ME2000, and FC2000 can accept this power strip. The card provides system control level power to the driver it is mounted on and power to the cabinet fan. The board's source AC input is rated from 38 to 115 VAC. The VAC comes with a frequency range of 0 to 500 kHz, depending on the strength of the input voltage.
The DS200DCFBG1BLC contains a number of complex circuit systems designed to power most of the drivers. The card includes AC and DC monitoring circuits, control level power circuits, motor field power circuits and driver circuits. The user can configure 12 jumpers and 7 DIP switches on the card to meet any external requirements. The status of the board is communicated to the user via onboard indicators. Two leds and a neon indicator light are built into the card to provide users with important diagnostic and status information. The board's three fuses are protected to ensure that interruptions or surges do not interrupt the current. Be sure to regularly monitor voltage levels using the five test points integrated into the board.
You must follow the installation parameters provided by the DS200DCFBG1BLC and the drive. These guidelines will ensure that the board and the system on which it is installed operate as intended. For wiring and installation instructions, refer to the series manual and the equipment data sheet. Technical support for all motherboards in the Mark V series was initially provided by manufacturer General Electric.
