SLS1508  RRS3202   |T8110B型|冗余逻辑求解器|

硬件:

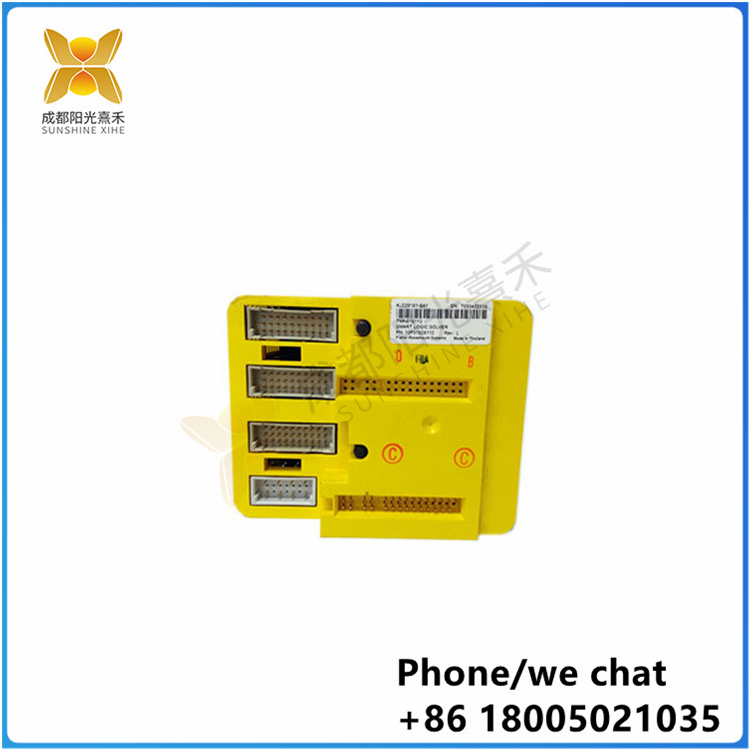

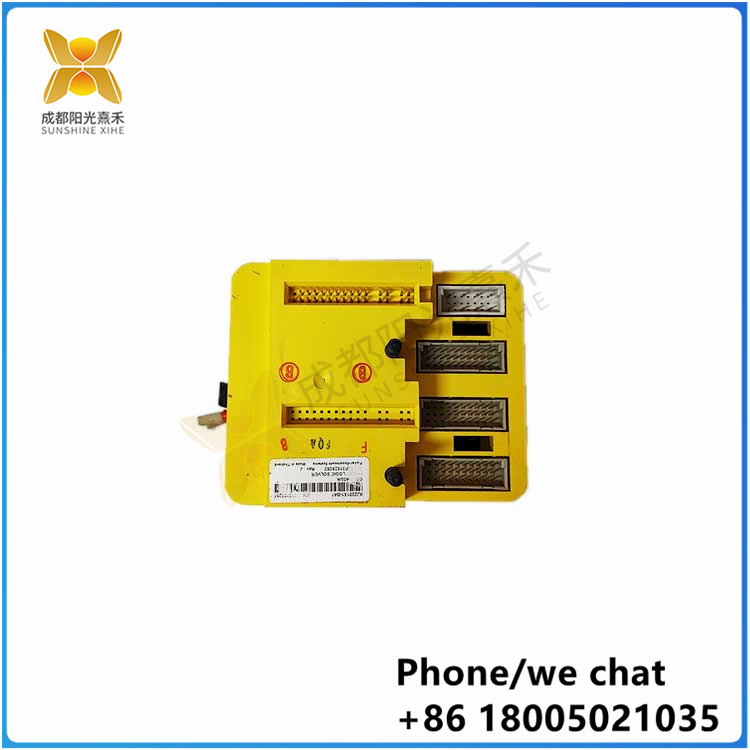

冗余逻辑求解器(SLS 1508)和终止块

SISNet中继器(参见单独的产品数据表)

载波扩展电缆

冗余sls1508逻辑求解器。

本地对等总线扩展电缆

右1宽载波终端

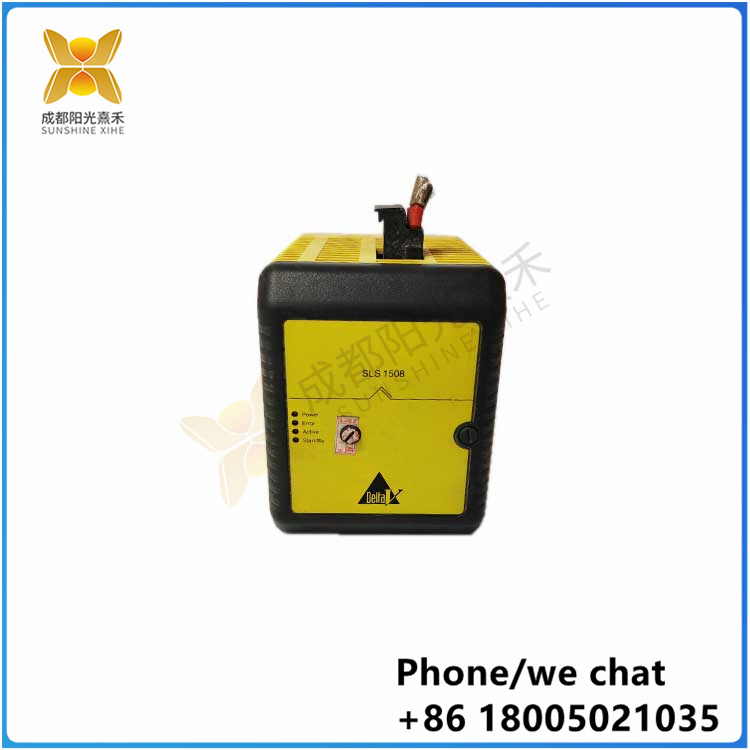

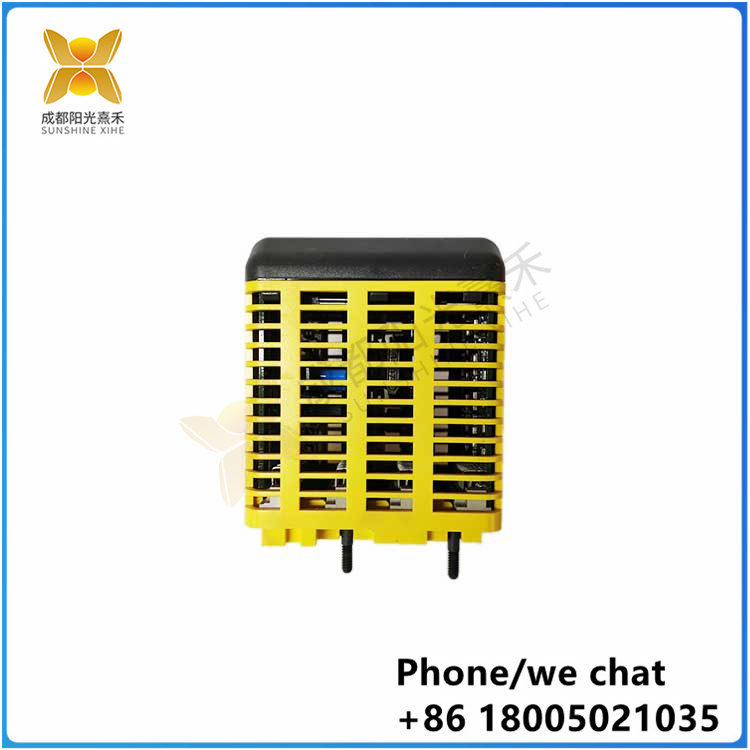

逻辑求解器(SLS 1508)包含逻辑求解功能

并提供一个接口到16个I/O通道，可以

配置为离散输入，

离散输出，模拟输入

(HART)和HART两态输出通道。逻辑解决者

终端块安装在8宽的载体上。

逻辑求解器之间通过

运营商通过双通道，本地对等总线(SISnet)和远程

同行的戒指。本地逻辑求解器由相同的delta托管

控制器和远程逻辑求解器由不同的

均控制器。逻辑求解器由24v直流电源供电

电源与驱动电动机的电源是分开的

DeltaV控制器和I/O。逻辑解算器以奇数安装

插槽(1,3,5,7)上的8宽载体。冗余逻辑求解器

使用四个插槽

Hardware:

Redundant logic solver (SLS 1508) and termination block

SISNet Repeater (see separate product data sheet)

Carrier extension cable

Redundant sls1508 logic solver.

Local peer bus extension cable

Right 1 wide carrier terminal

The logic solver (SLS 1508) contains the logic solver function

And provide an interface to 16 I/O channels, yes

Configured for discrete input, discrete output, analog input

(HART) and HART two state output channels. Logical solver

The terminal block is mounted on an 8-wide carrier.

Logic solvers pass between them

Operators operate through dual channels, local peer-to-peer bus (SISnet) and remote

A companion ring. The local logic solver is hosted by the same delta

Controllers and remote logic solvers are different

Equalizing controller. The logic solver is powered by a 24v DC supply

The power supply is separate from the power supply that drives the motor

DeltaV controller and I/O. Logical solvers are installed in odd numbers

Slots (1,3,5,7) on the 8-wide carrier. Redundant logic solver

Use four slots
