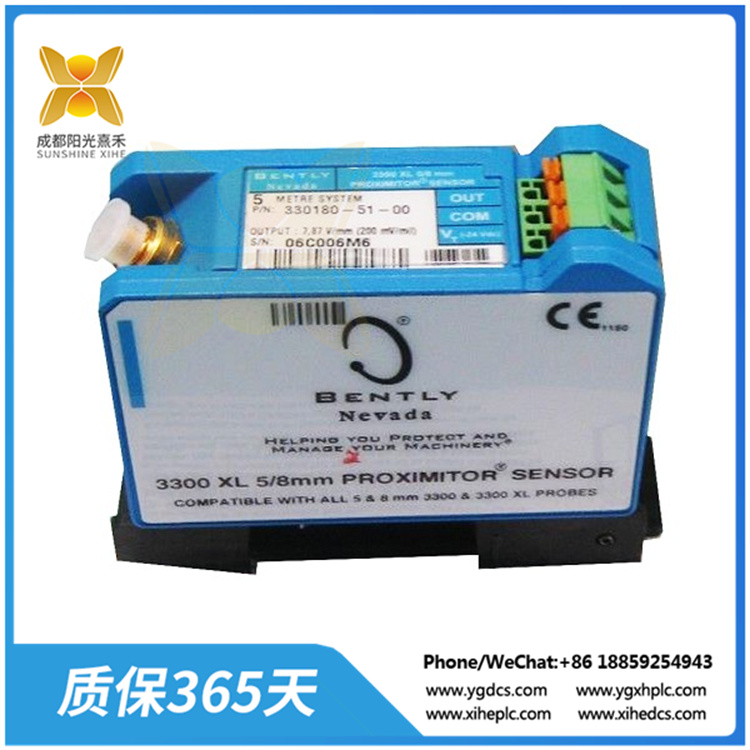

>>>型号:330180-X1-CN 前置传感器 用于工业自动化和控制系统
【功能描述】
330180-X1-CN是一款前置传感器，它属于其3300 XL系列监测系统的一部分。该前置传感器设计用于轴承机械的轴振动、轴位移、键相位和转速测量，符合美国石油学会(API)制定的670标准。
这意味着它具有高可靠性和准确性，适用于各种工业环境。
330180-X1-CN前置传感器具有强大的抗无线电干扰能力，即使在安装于玻璃纤维防护罩中时，也不会受到附近无线电信号的干扰。这一特点确保了传感器在各种复杂环境中的稳定性和可靠性。
该前置传感器还用于接收非接触式bently3300 XL系列5mm、8mm电涡流探头和延伸电缆的信号，频率响应为0-10kHz。这种广泛的频率响应范围使其能够准确捕捉设备的振动和位移信息。
电源规格为-17.5Vdc至-26Vdc，电流最大为12mA，线性范围为2mm，灵敏度为7.87V/mm（200mV/mil）±5%。这些规格参数确保了传感器在测量过程中的精确性和稳定性。
该前置传感器的重量为246g，这使得它便于安装和维护。此外，由于其出色的性能和广泛的应用范围，330180-X1-CN前置传感器在工业领域中受到了广泛的认可和应用。
>>>>型号:330180-X1-CN 前置传感器 用于工业自动化和控制系统
【英文介绍】
The 330180-X1-CN is a front-facing sensor that is part of its 3300 XL series monitoring system. The front sensor is designed for shaft vibration, shaft displacement, key phase and speed measurement of bearing
machinery and complies with the 670 standard established by the American Petroleum Institute (API). This means that it has high reliability and accuracy and is suitable for a variety of industrial environments.
The 330180-X1-CN front sensor has strong radio interference resistance, even when installed in a fiberglass shield, it will not be interfered by nearby radio signals. This feature ensures the stability and reliability
of the sensor in a variety of complex environments.
The front sensor is also used to receive signals from the non-contact bently3300 XL series 5mm and 8mm eddy current probes and extended cables with a frequency response of 0-10kHz. This wide frequency r
esponse range enables it to accurately capture vibration and displacement information of the device.
Power supply specifications range from -17.5Vdc to -26 VDC, current up to 12mA, linear range of 2mm, sensitivity of 7.87V/mm (200mV/mil) ±5%. These specifications ensure the accuracy and stability of the sensor during measurement.
The front sensor weighs 246g, which makes it easy to install and maintain. In addition, due to its excellent performance and wide range of applications, the 330180-X1-CN front sensor has been widely recognized and applied in the industrial field.
