>>>>>型号:1900/65A 设备监视器是旨在持续监测和保护设备
【功能描述】
描述
1900/65A通用设备监视器是旨在持续监测和保护设备用于各种应用和行业。的
Monitor的低成本使其成为一般用途机器和过程的理想解决方案，可以从中受益持续监控和保护。输入
1900/65A提供4个传感器输入和4个温度输入。软件可以配置每个传感器输入支持2线和3线加速度计，速度传感器或接近传感器。每个温度输入支持E型，J型，K型和T型热电偶，以及2线或3线rtd。输出1900/65A提供6个继电器输出，4个4-20 mA记录仪输出，以及专用缓冲输出。用户可以用1900组态软件配置继电器吗根据OK, Alert和任何航道或航道组合的危险状况;并提供来自任何渠道的任何变量的数据记录器输出。专用缓冲区输出可以提供每个换能器输入信号。
Modbus网关选项允许监视器提供静态变量，状态，事件列表，时间和日期信息
直接到任何Modbus客户端，包括分布式控制系统(dcs)，监控和数据采集(SCADA)系统，可编程逻辑控制器(plc)，或系统1软件。监视器使用一个内部计数器和一个Modbus客户端/主端时间参考生成时间和日期信息。用户可以升级监视器而不需要Modbus网关通过订购1900/01进行通信1900/65A通用设备监视器
数据表
本特利内华达机械状态监测
支持通过以太网进行Modbus通信
和一个软件可配置的RS232/485串行
端口。
配置
用户定义监控操作和
Modbus网关由注册表映射使用
在笔记本电脑或个人电脑上运行的软件
配置文件，下载到
监视器通过内置的以太网
连接。1900/65A永久存储
非易失性的配置信息
内存，并可以将此信息上传到
PC进行更改。
显示模块
1900/65A可选支持
显示/键盘查看通道信息或
进行一些小的配置更改。这允许
1900/65A作为独立操作
包中。如果需要，用户可以挂载
显示距离最远75米(250英尺)
监控模块。
>>>>>型号:1900/65A 设备监视器是旨在持续监测和保护设备
【英文介绍】
Description

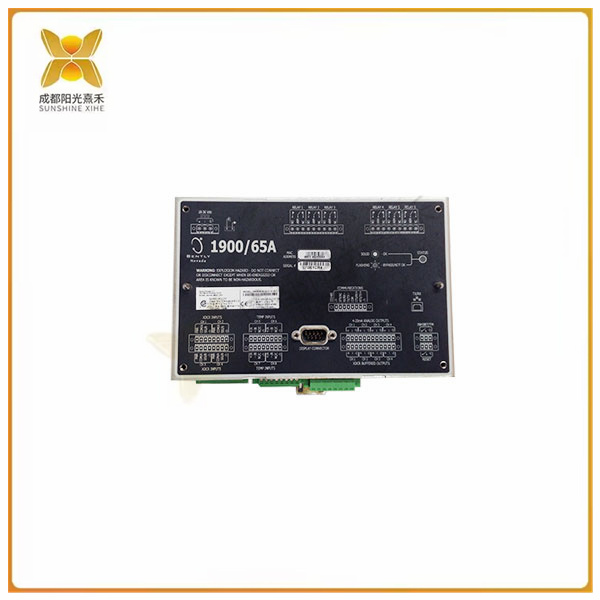

The 1900/65A Universal Device monitor is
Designed for continuous monitoring and protection of equipment
Used in a variety of applications and industries. the
Monitor's low cost makes it an ideal solution for general purpose machines and processes that can benefit from it
Continuous monitoring and protection.
input
The 1900/65A offers 4 sensor inputs and 4
Temperature input. Software can be configured for each sensor
Input supports 2-wire and 3-wire accelerometers, speeds
Sensor or proximity sensor. Each temperature input is supported
Type E, type J, type K and type T thermocouples, as well as 2-wire or 3-wire RTDS.
exportation
The 1900/65A offers six relay outputs, four 4-20 mA
Recorder output, and dedicated buffer output. user
Can you configure relays with 1900 configuration software
According to OK, Alert and
Hazardous condition of any channel or combination of channels;
And provide data on any variable from any channel
Recorder output. Dedicated buffer output can be provided
Each transducer input signal.
The Modbus gateway option allows the monitor to provide
Static variables, states, event lists, time and date information
Direct to any Modbus client, including distributed control
Systems (dcs), monitoring and data acquisition
(SCADA) system, Programmable logic Controller (plc), or
System 1 software. The monitor uses an internal counter and a
Modbus Client/primary time Refer to the generation time and
Date information. Users can upgrade the monitor without the need
The Modbus gateway communicates by ordering 1900/01
Upgrade (see Ordering Information section). The 1900/65A
Document :173401
Start T
1900/65A Universal device monitor
Data sheet
Bentley Nevada mechanical condition monitoring
Supports Modbus communication over Ethernet
And a software configurable RS232/485 serial
Port.
disposition
User-defined monitoring operations and
The Modbus gateway is used by the registry map
Software that runs on a laptop or personal computer
Configuration file, download to
Monitor via built-in Ethernet
Connect. 1900/65A Permanent storage
Non-volatile configuration information
Memory and can upload this information
The PC changes.
Display module
1900/65A Optional
Display/Keyboard View channel information or
Make some minor configuration changes. This allows
1900/65A as a standalone operation
It's in the bag. If necessary, the user can mount it
Display distance up to 75 m (250 ft)
Monitoring module.
