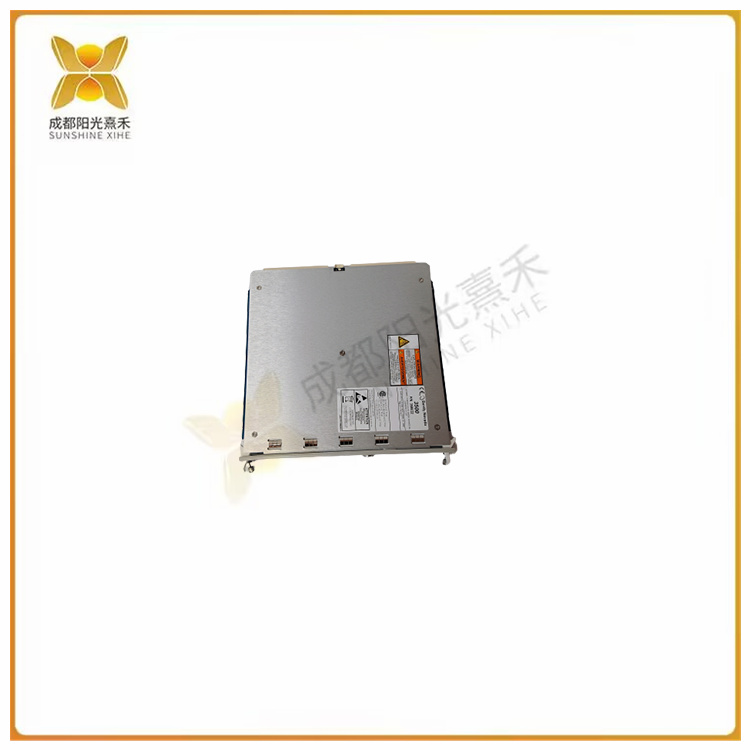

>>>>>型号:288055-01 瞬态数据接口模块 框架接口模块
【功能描述】
3500/22M框架接口模块是连接3500框架的基本接口。它支持本特利内华达公司专有协议，用作组态框架和收集机器信息。RIM必须安装在框架的槽位(与电源模块紧挨着)。
RIM提供一个连接，它支持当前本特利内华达通讯处理器(外部瞬态数据接口TDIX和外部动态数据接口DDIX)。
RIM使用两种类型的I/O模块，即框架接口I/O模块和数据管理I/O模块。这些I/O模块让你把主计算机和通讯处理器与3500框架连接起来，一次只能在RIM(盘装或架装框架中)的后面或RIM(壁挂式框架)的上面安装一个框架接口I/O模块。
对于3500监测系统，有效的两种框架接口I/O模块是RS-232/RS-422I/O 模块和调制解调器I/O模块。以下特性为两种I/O模块共有的。
框架接口I/O模块必须安装在框架接口模块的后面(盘装或架装框架)或者在框架接口模块的上面(壁挂式框架)。
>>>>>型号:288055-01 瞬态数据接口模块 框架接口模块
【英文介绍】
The 3500/22M frame interface module is the basic interface to connect to the 3500 frame. It supports Bentley Nevada proprietary protocols and is used as a configuration framework and to collect machine information. The RIM must be installed in a slot in the frame (next to the PSU).
RIM provides a connection that supports current Bentley Nevada communications processors (External Transient Data Interface TDIX and External Dynamic Data Interface DDIX).
RIM uses two types of I/O modules, the Framework Interface I/O module and the data management I/O module. These I/O modules allow you to connect the main computer and communication processor to the 3500 frame, and only one frame interface I/O module can be installed at a time behind the RIM(disk or rack frame) or on top of the RIM(wall-mounted frame).
For 3500 monitoring systems, the two effective frame interface I/O modules are the RS-232/RS-422I/O module and the modem I/O module. The following features are common to both types of I/O modules.
The frame interface I/O module must be mounted behind the frame interface module (disk or rack mounted frame) or on top of the frame interface module (wall mounted frame).
