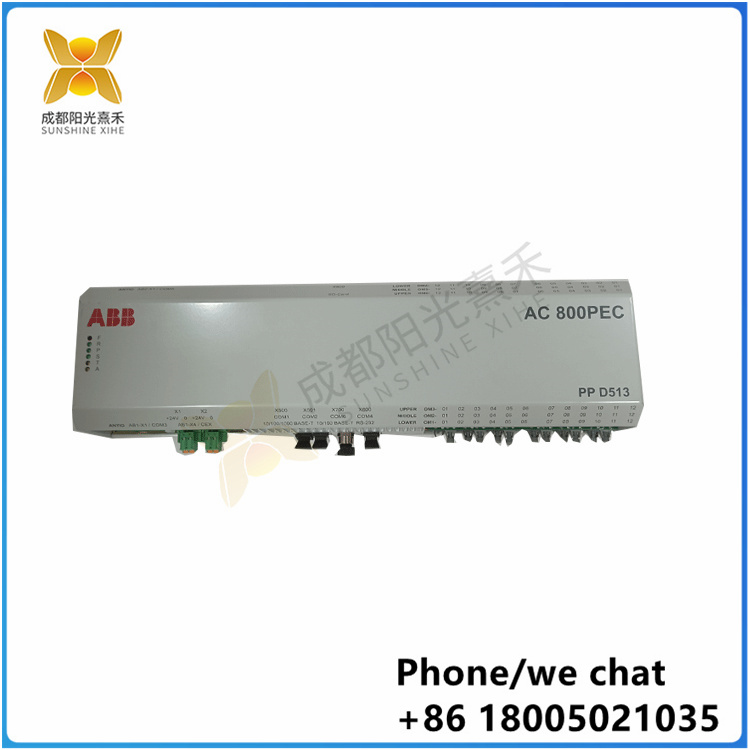

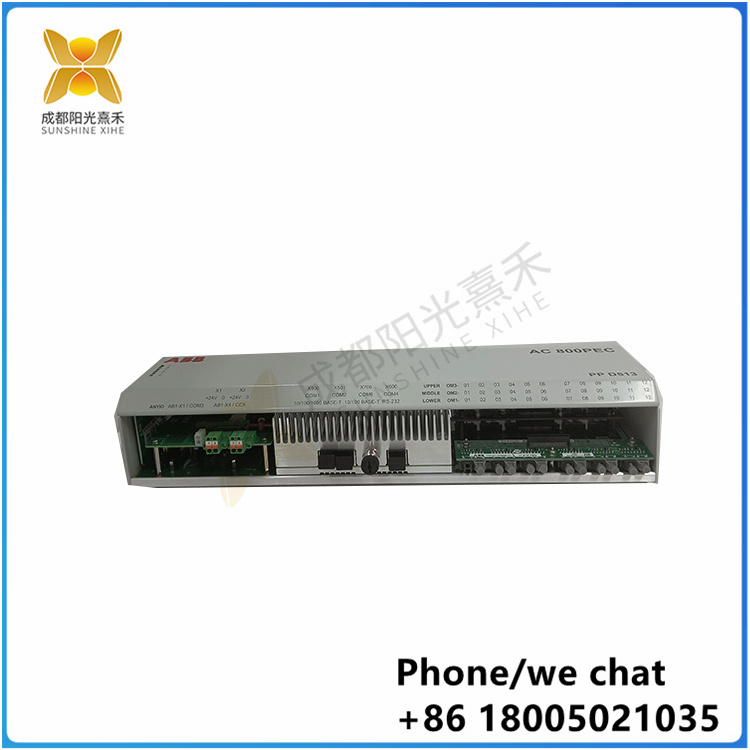

PPD513   3BHE039724R1060 |DS200TCPDG1BEC|单元控制器|

型号与应用：PPD513A-23-111615 是 AC 800PEC 单元控制器的一个型号，适用于各种工业自动化和控制应用 。

AC 800PEC 控制系统：这是一个模块化的控制器，适用于过程控制，具有多种 I/O 模块，可以满足所有功率电子控制要求 。

通信能力：AC 800PEC 控制器支持多种通信协议和接口，包括 Ethernet TCP/IP、Fieldbus (AnyBus-S)、RS-232/RS-422 等 。

存储与处理：控制器拥有固态 16 MB Flash 存储器，用于存储程序和数据，并配备 64 MB SDRAM 缓存，以运行活动程序 。

PPW 和 PPD 电压互感器：PPD513 可能与 PPW 和 PPD 类型的电压互感器一起使用，这些互感器设计用于轻便的计量负载，具有紧凑的尺寸和良好的机械、热和电气特性 。

硬件配置：AC 800PEC 控制器包含处理器、光学接口、现场总线和与上级控制的接口。它采用 750 MHz RISC 处理器，具有 64 位 IEEE 浮点单元 (FPU)，优化了非常快速控制周期的应用 。

附加接口和模块：AC 800PEC 系统还包括多种附加接口和模块，如 PEBB 接口板、测量接口 PECMI、S800 I/O 模块等，用于直接 IGBT 转换器控制、电流和电压测量、慢速过程信号交换等

编程和开发环境：AC 800PEC 支持多种编程和开发环境，包括 Automation Builder、Panel Builder、FPGA Framework 以及 MATLAB/Simulink，适用于不同的应用开发和控制算法 。

通信协议支持：控制器支持多种通信协议，包括 MMS、Modbus TCP Slave、IEC61850、ABB Fast Fiber Optic Link、Drivebus (DDCS) 等，还可以通过 ABB CEX 模块和 Anybus 模块扩展更多协议支持

Model and Application: PPD513A-23-111615 is a model of AC 800PEC unit controller for a variety of industrial automation and control applications.

AC800PEC Control System: This is a modular controller for process control with a variety of I/O modules that can meet all power electronic control requirements.

Communication capability: The AC 800PEC controller supports a variety of communication protocols and interfaces, including Ethernet TCP/IP, Fieldbus (AnyBus-S), RS-232/RS-422, etc.

Storage and Processing: The controller has solid-state 16 MB Flash memory for storing programs and data, and is equipped with 64 MB SDRAM cache for running active programs.

PPW and PPD voltage Transformers: PPD513 may be used with PPW and PPD type voltage transformers, which are designed for lightweight metering loads with compact dimensions and good mechanical, thermal and electrical characteristics.

Hardware configuration: The AC800PEC controller contains a processor, optical interface, fieldbus, and interface to the superior control. It uses a 750 MHz RISC processor with a 64-bit IEEE floating point unit (FPU), optimized for applications with very fast control cycles.

Additional interfaces and modules: The AC 800PEC system also includes a variety of additional interfaces and modules, such as PEBB interface board, measuring interface PECMI, S800 I/O module, etc., for direct IGBT converter control, current and voltage measurement, slow process signal exchange, etc

Programming and development environment: AC 800PEC supports a variety of programming and development environments, including Automation Builder, Panel Builder, FPGA Framework, and MATLAB/Simulink, for different application development and control algorithms.

Communication protocol support: The controller supports a variety of communication protocols, including MMS, Modbus TCP Slave, IEC61850, ABB Fast Fiber Optic Link, Drivebus (DDCS), etc. Additional protocol support can also be extended through ABB CEX modules and Anybus modules
