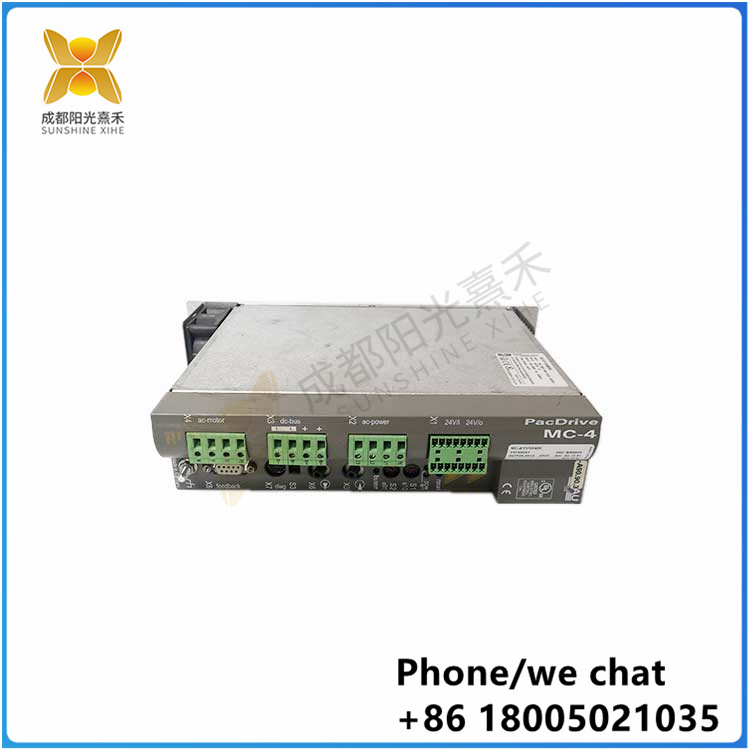

MC422C  587929-01| IC200GBI001 | CPU模块 |

MC422C  587929-01控制器是指能够按照预定顺序改变主电路或控制电路的接线和改变电路中电阻值，从而控制电动机的启动、调速、制动和反向等的主令装置。在更广泛的意义上，控制器是一种用于管理和协调其他设备的硬件或软件设备，其基本功能包括任务分配、资源调度、数据处理和监视与管理。

任务分配：控制器可以将任务分配给其他设备，并确保它们被正确地执行。例如，在工业自动化系统中，控制器可以将生产线上的任务分配给机器人，以便完成生产和装配工作。

资源调度：控制器可以为其他设备分配资源，以确保它们可以按时完成任务。例如，在计算机网络中，控制器可以为服务器和存储设备分配带宽、处理器时间等资源，以实现最佳性能。

数据处理：控制器可以收集和处理其他设备产生的数据，并做出相应的反应。例如，在工业自动化系统中，控制器可以收集生产线上机器人的位置数据，并使用这些数据来调整机器人的运动轨迹。

监视与管理：控制器可以监视其他设备的状态和行为，并采取必要的措施来确保这些设备正常运行。例如，在计算机网络中，控制器可以监视交换机和路由器之间的流量和连接状态，并在需要时重新配置网络拓扑。

二、MC422C  587929-01组成结构

控制器通常由多个部件组成，包括程序计数器、指令寄存器、指令译码器、时序产生器和操作控制器等。这些部件共同协作，完成控制器的各项功能。

程序计数器：用于存储当前执行的指令地址，确保指令按预定顺序执行。

指令寄存器：用于暂存从内存取出的指令，以便指令译码器进行译码。

指令译码器：对指令寄存器中的指令进行译码，产生相应的控制信号，控制其他部件的工作。

时序产生器：产生时序信号，协调各部件的工作节奏。

操作控制器：根据指令译码器的输出和时序信号，产生具体的操作控制信号，控制各部件的具体操作

MC422C 587929-01 controller refers to the main command device that can change the wiring of the main circuit or control circuit and change the resistance value in the circuit according to the predetermined sequence, so as to control the start, speed regulation, braking and reverse of the motor. In a broader sense, a controller is a hardware or software device used to manage and coordinate other devices, and its basic functions include task allocation, resource scheduling, data processing, and monitoring and management.

Task assignment: The controller can assign tasks to other devices and ensure that they are executed correctly. For example, in an industrial automation system, a controller can assign tasks on a production line to a robot in order to complete production and assembly work.

Resource scheduling: The controller can allocate resources to other devices to ensure that they can complete tasks on time. For example, in a computer network, a controller can allocate resources such as bandwidth, processor time, etc. to servers and storage devices for optimal performance.

Data processing: The controller can collect and process data generated by other devices and react accordingly. For example, in an industrial automation system, a controller can collect data on the position of a robot on a production line and use this data to adjust the robot's motion trajectory.

Monitoring and Management: The controller can monitor the status and behavior of other devices and take the necessary actions to ensure that these devices are functioning properly. For example, in a computer network, a controller can monitor the traffic and connection status between switches and routers and reconfigure the network topology when needed.

Second, MC422C 587929-01 composition structure

A controller usually consists of several components, including a program counter, an instruction register, an instruction decoder, a timing generator, and an operation controller. These components work together to complete the functions of the controller.

Program counter: Used to store the address of the currently executed instruction, ensuring that the instruction is executed in a predetermined order.

Instruction register: Used to temporarily store instructions removed from memory for decoding by the instruction decoder.

Instruction decoder: Decode the instructions in the instruction register, generate the corresponding control signal, and control the work of other components.

Timing generator: generates timing signals to coordinate the working rhythm of each component.

Operation controller: According to the output and timing signal of the instruction decoder, the specific operation control signal is generated to control the specific operation of each component
