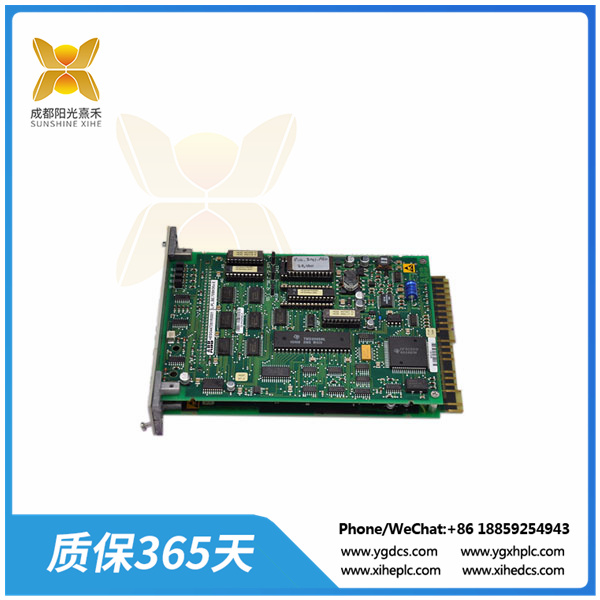

NTAI06 | 端子板 | SNAT607 MCI | NTAI06

　　型号：NTAI06

　　类别：端子板

　　成色：全新/非全新

　　质保：一年

　　快递：顺丰/德邦

　　端子板是一种用于电气连接的电子元器件，其主要作用在于方便各种电器元器件之间的连线。以下是关于端子板的详细介绍：

　　一、定义与构成

　　端子板，也被称为接线板或插针板，通常由一个可固定于电子设备外壳上的基板和一排用于连接电线或其他电气组件的端子条构成。这些端子条上设有用于夹紧电线的结构，以确保电线与端子之间的紧密电气连接。

　　二、功能特点

　　模块化结构：NTAI06端子板采用模块化设计，包括信号输入输出、电源分配等功能，使得控制柜内的接线附件更加标准化和系列化。这种设计不仅美观，而且提高了工作效率。

　　功能全面：端子板具有信号隔离和驱动、回路供电、卡件供电、信号指示、报警指示、回路保护、电源保护、信号转接等多项功能，可支持多品牌安全栅和隔离器，全面提升配线质量。

　　简化设计与布线：NTAI06通过板上跳线的型式，解决了外部设备与系统卡件接线的差异化和复杂化问题，使得同一个卡件可以接驳不同类型的仪表和信号，减少了线路节点，简化了施工图纸设计和盘内布线过程。

　　省略端子排：NTAI06外部接线端配备的拔插式接线端子块可方便端子维修，更换端子板可不拆除接线。内部接线端采用专用接口，使用特制电缆与PLC或DCS快速插接，提高了工作效率。

　　Model: NTAI06

　　Category: Terminal board

　　Finish: New/not new

　　Warranty: One year

　　Express: SF Express/Debon

　　The terminal board is an electronic component used for electrical connection, and its main function is to facilitate the connection between various electrical components. The following is a detailed introduction to the terminal board:

　　I. Definition and composition

　　A terminal board, also known as a patch board or pin board, usually consists of a substrate that can be fixed to the housing of an electronic device and a row of terminal strips for connecting wires or other electrical components. These terminal strips are provided with a structure for clamping the wire to ensure a tight electrical connection between the wire and the terminal.

　　Second, functional characteristics

　　Modular structure: NTAI06 terminal board adopts modular design, including signal input and output, power distribution and other functions, making the wiring accessories in the control cabinet more standardized and serialized. This design is not only beautiful, but also improves the work efficiency.

　　Comprehensive function: the terminal board has a number of functions such as signal isolation and drive, loop power supply, card power supply, signal indication, alarm indication, loop protection, power protection, signal switching, etc., which can support multi-brand safety grid and isolator, and comprehensively improve the wiring quality.

　　Simplified design and wiring: NTAI06 through the type of jumper on the board, to solve the difference and complex problems of external equipment and system card wiring, so that the same card can be connected to different types of instruments and signals, reduce the line node, simplify the construction drawing design and the wiring process in the disk.

　　Omit terminal block: The external terminal of NTAI06 is equipped with a plug and insert terminal block to facilitate terminal maintenance. Replacing the terminal board does not remove the cable. The internal terminal uses a special interface, and uses a special cable to quickly plug into PLC or DCS, which improves the work efficiency.
