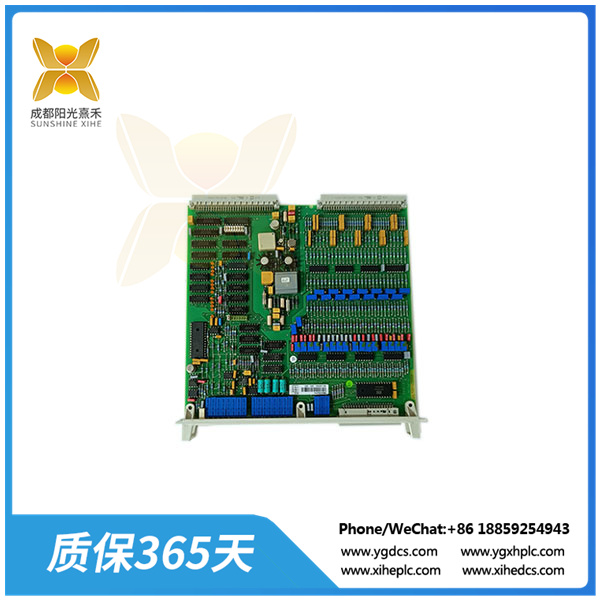

P7LA HNEF105323R0002 | 直流电源导入模块 | CI871AK01 3BSE092693R1
型号:P7LA HNEF105323R0002
类别:直流电源导入模块
质保:365天
货期:3-5天/周
发货方式:顺丰/联邦
P7LA HNEF105323R0002 直流电源导入模块主要涉及电源的稳定转换和供应,以下是关于直流电源导入模块的详细解释:
基本原理:
P7LA HNEF105323R0002 交流电源首先通过整流电路转换为脉动的直流电。整流电路通常采用二极管桥式整流电路,实现交流电的负半周和正半周分别转换为直流电。
脉动的直流电随后通过滤波电路进行平滑处理,滤波电路主要由电容器组成,将脉动的直流电转换为较为稳定的直流电。
稳压电路对直流电进行调节,使其保持在一定的稳定电压范围内。稳压电路通常采用反馈控制的方式,通过比较输出电压和参考电压来调节控制元件(如晶体管或集成电路)的导通程度,从而实现对输出电压的精确调节。
应用领域:
通信电源:P7LA HNEF105323R0002 直流电源导入模块在通信电源中占据重要地位,为通信设备和网络提供稳定、可靠、高质量的直流电源。其应用领域包括程控交换机、传输设备、数据中心、移动基站等。
医疗设备:医疗设备对稳定可靠的电源更为敏感,直流
Model: P7LA HNEF105323R0002
Category: DC power import module
Warranty: 365 days
Delivery time: 3-5 days/week
Delivery method: SF Express/Federal
The P7LA HNEF105323R0002 DC power import module mainly involves the stable conversion and supply of power supplies. The following is the detailed explanation of the DC power import module:
The basic principle:
The P7LA HNEF105323R0002 AC power supply is first converted to pulsating direct current by a rectifier circuit. The rectifier circuit usually uses a diode bridge rectifier circuit to convert the negative half cycle and positive half cycle of alternating current into direct current respectively.
The pulsating DC is then smoothed through a filter circuit consisting mainly of capacitors, which converts the pulsating DC into a more stable DC.
The voltage regulator circuit regulates the direct current to keep it within a certain stable voltage range. Voltage regulator circuit usually adopts feedback control, by comparing the output voltage and reference voltage to adjust the degree of control components (such as transistors or integrated circuits), so as to achieve accurate regulation of the output voltage.
Application field:
Communication power supply: The P7LA HNEF105323R0002 DC power import module plays an important role in the communication power supply, providing stable, reliable, and high-quality DC power supply for communication devices and networks. Its application areas include program-controlled switches, transmission equipment, data centers, mobile base stations and so on.
Medical equipment: Medical equipment is more sensitive to a stable and reliable power supply, DC
