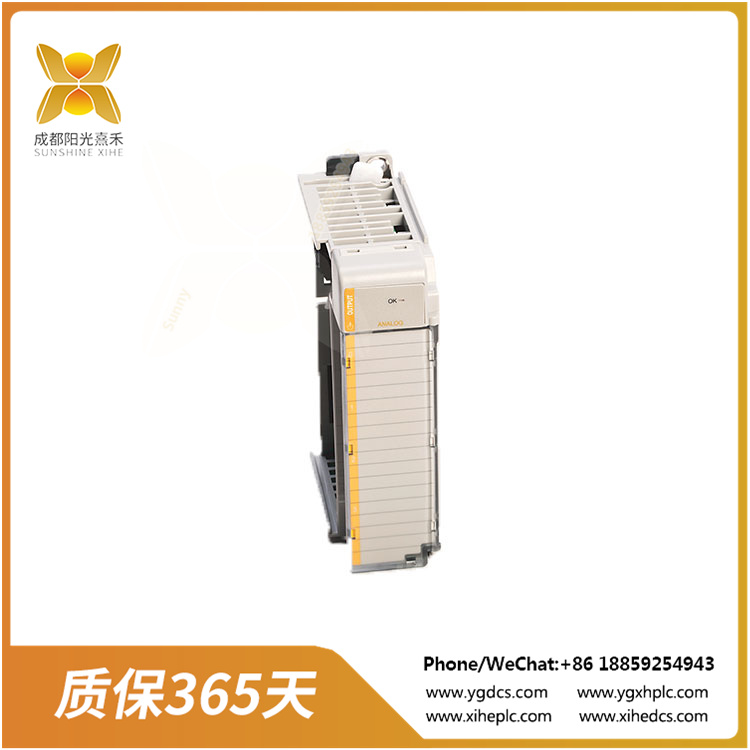

1769-0W16,也称为 1769-OW16,是 Allen-Bradley(罗克韦尔自动化)生产的 CompactLogix 系列的 16 点数字交流/直流继电器触点输出模块。
这个模块具备以下特性:
含有 16 个常开触点,分为两组,每组 8 个触点
触点的额定值在 125 伏直流电时为 0.22 安培,28 伏安,在 240 伏交流电时为 7.5 安培,闭合时为 1800 伏安,断开时为 180 伏安
工作电压范围是 5 到 265 伏交流电和 5 到 125 伏直流电
模块的电流消耗在 24 伏时为 180 毫安,在 5.1 伏时为 205 毫安
具有每个模块 20 安培的最大电流和每个点 2.5 安培的最大电流
最大功耗为 4.75 瓦,最大关断状态泄漏电流为 0 毫安,在 5 伏直流电下最小导通状态电流为 10 毫安
工作温度范围为 0 到 60 摄氏度,非冷凝相对湿度范围为 5% 至 95%
能够承受工作冲击约 30G,工作时可承受约 2G 的振动
模块在开启和关闭状态下均有 10 毫秒的延迟
1769-OW16 模块提供灵活性,并且与 CompactLogix 控制器等各种应用兼容。它还可以用作 MicroLogix 1500 控制器组件,以及带有 1769-ADN DeviceNet 或 1769-AENTR 以太网适配器的组件中的扩展 I/O
The 1769-0W16, also known as the 1769-OW16, is a 16-point digital AC/DC relay contact output module for the CompactLogix series manufactured by Allen-Bradley (Rockwell Automation).
This module has the following features:
Contains 16 normally open contacts, divided into two groups, each group of 8 contacts
Contacts are rated 0.22 amps at 125 VDC, 28 volt amps at 240 VAC, 7.5 amps at 1800 volt amps when closed, and 180 volt amps when disconnected
The operating voltage range is 5 to 265 volts AC and 5 to 125 volts DC
The current consumption of the module is 180 mah at 24 volts and 205 mah at 5.1 volts
It has a maximum current of 20 amps per module and 2.5 amps per point
The maximum power consumption is 4.75 watts, the maximum turn-off leakage current is 0 MA, and the minimum on-state current is 10 mA at 5 volts DC
The operating temperature range is 0 to 60 degrees Celsius and the non-condensing relative humidity range is 5 to 95%
It can withstand the working shock of about 30G, and can withstand the vibration of about 2G when working
The module has a 10ms delay in both on and off states
The 1769-OW16 module provides flexibility and is compatible with various applications such as CompactLogix controllers. It can also be used as a MicroLogix 1500 controller component, as well as extended I/O in components with a 1769-ADN DeviceNet or 1769-AENTR Ethernet adapter
联系:sunny
电话 :18859254943
QQ : 3561040004
邮箱 :sales@ygdcs.com
包装和运输
1)有现货的货物,我们将在收到付款后3天内发出订单。
2)我们可以通过DHL,UPS,Fedex和EMS将货物运送到世界各地。包装很结实。如果您有任何特殊要求,请告诉我。
3) 您将在我们发送货物后大约 7 天收到货物。
您可能有任何问题
问: 你们的包装条件是什么?
答: 一般来说,我们将货物包装在带有泡沫衬垫的纸箱中,以防止货物损坏。
问: 你们的付款条件是什么?
答: 装运前 100% T/T。西联汇款,信用卡也是可以接受的
问: 你们的交货时间呢?
答: 一般在收到付款后 1-3 天。具体交货时间取决于订单的类型和数量。
