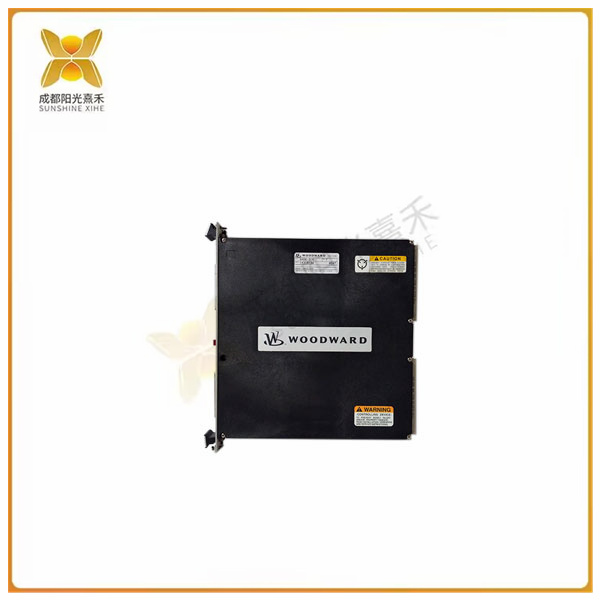

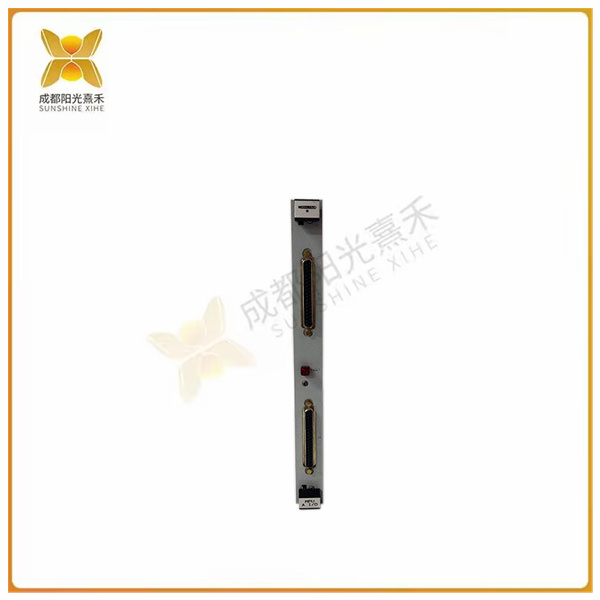

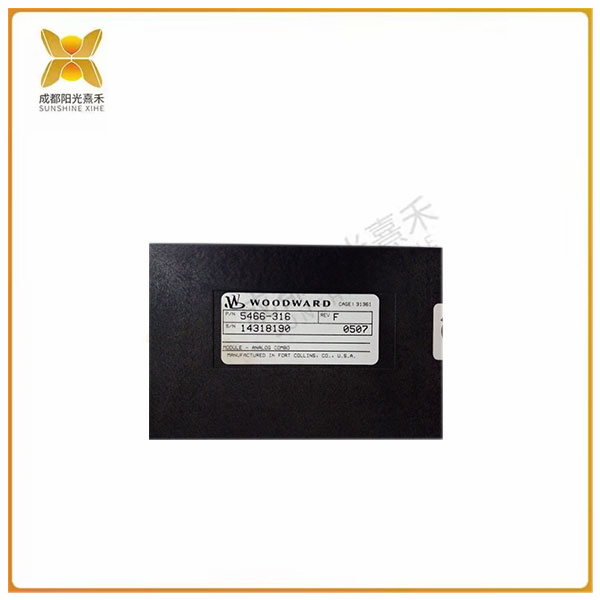

>>>>>型号:5466-316 四个速度输入调速器 增加单独的双通道
【功能描述】
MicroNet 5466-253和5466-316 HDCombo模块于1997年首次推出，用于蒸汽控制市场。该模块包括8个模拟输入，4个模拟输入
输出，四个速度输入，和两个比例执行器输出。-253版本具有TMR和5009系统控制阀与比例执行器的I/O的理想组合。
Woodward最新的速度/模拟组合模块(5466-1115)缺乏老式HDCombo模块的板载比例执行器功能，需要增加单独的双通道
致动器模块。这消耗了主TMR机箱中宝贵的I/O空间。自2016年以来，Woodward一直提供HDCombo模块，主要用于备件和系统升级，并推动蒸汽和压缩机客户使用5466-1115以及补充的2CH执行器控制模块。伍德沃德的5009标准汽轮机控制也改为利用较新的组合模块。
从2020年底开始，标准的5009XT汽轮机控制将改为使用5466-253 HDCombo模块代替5466-1115 Combo模块。自定义编程
微网TMR系统可以使用任何一种配置。伍德沃德建议使用5466-253对TMR系统，如果涡轮机使用比例致动器，并使用5466-1115，如果涡轮机使用集成致动器或单独的伺服控制器，如SPC。5466-316可用于需要该模块提供的特定I/O和FTM的改造系统。
输入/输出通道： 5466-316 模块通常具有多个输入和输出通道，用于连接外部传感器、执行器和设备。
数字和模拟信号： 这种类型的模块通常支持数字输入和输出，以及模拟输入和输出，以满足不同类型的信号和传感器需求。
电压/电流范围： 这些模块通常支持不同的电压和电流范围，以适应不同类型的信号和负载。
通信接口： 5466-316 模块通常具有标准的通信接口，以便与PLC或其他控制系统进行数据交换和通信。
可编程性： 用户通常可以配置和编程这些模块，以生成特定的输入/输出逻辑和控制。
状态监测： 这些模块通常具有状态监测功能，允许实时监测输入和输出通道的状态。
保护功能： 输入模块通常具有保护功能，例如过压保护、过流保护，以确保系统的安全性和可靠性。
>>>>>型号:5466-316 四个速度输入调速器 增加单独的双通道
【英文介绍】
The MicroNet 5466-253 and 5466-316 HDCombo modules were first introduced in 1997 for the steam control market. The module includes 8 analog inputs and 4 analog inputs
Outputs, four speed inputs, and two proportional actuator outputs. The -253 version has the ideal combination of TMR and 5009 system control valves with proportional actuator I/O.
Woodward's latest speed/analog combination module (5466-1115) lacks the on-board proportional actuator feature of the older HDCombo module, requiring the addition of a separate dual channel
Actuator module. This eats up valuable I/O space in the main TMR chassis. Woodward has been offering the HDCombo module since 2016, primarily for spare parts and system upgrades, and to drive steam and compressor customers to the 5466-1115 as well as the complementary 2CH actuator control module. Woodward's 5009 standard turbine control was also changed to utilize a newer combination module.
From the end of 2020, the standard 5009XT turbine control will be replaced by 5466-253 HDCombo modules instead of 5466-1115 Combo modules. Custom programming
Microgrid TMR systems can be used in either configuration. Woodward recommends using 5466-253 for TMR systems if the turbine uses proportional actuators, and using 5466-1115 if the turbine uses integrated actuators or a separate servo controller, such as an SPC. The 5466-316 can be used in retrofit systems that require the specific I/O and FTM provided by this module.
Input/output channels: 5466-316 modules typically have multiple input and output channels for connecting external sensors, actuators, and devices.
Digital and analog signals: This type of module typically supports digital inputs and outputs, as well as analog inputs and outputs, to meet different types of signal and sensor needs.
Voltage/current range: These modules typically support different voltage and current ranges to accommodate different types of signals and loads.
Communication interface: The 5466-316 module usually has a standard communication interface for data exchange and communication with a PLC or other control system.
Programmability: Users can typically configure and program these modules to generate specific input/output logic and controls.
Condition monitoring: These modules often have condition monitoring capabilities that allow real-time monitoring of the status of input and output channels.
Protection function: The input module usually has protection functions, such as overvoltage protection and overcurrent protection, to ensure the safety and reliability of the system.
