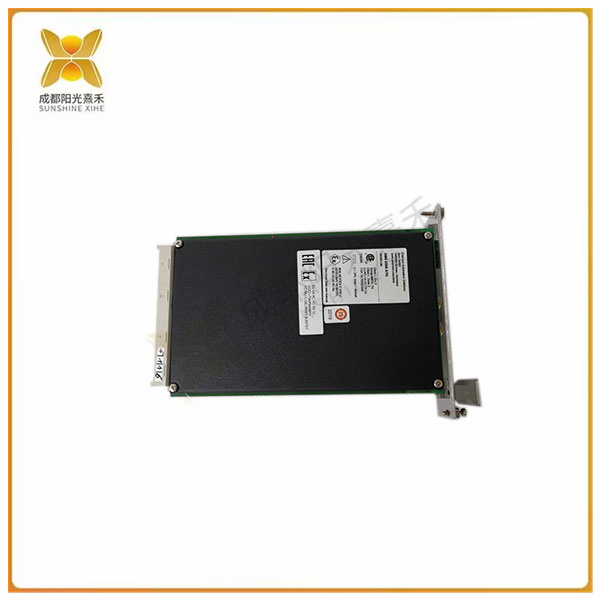

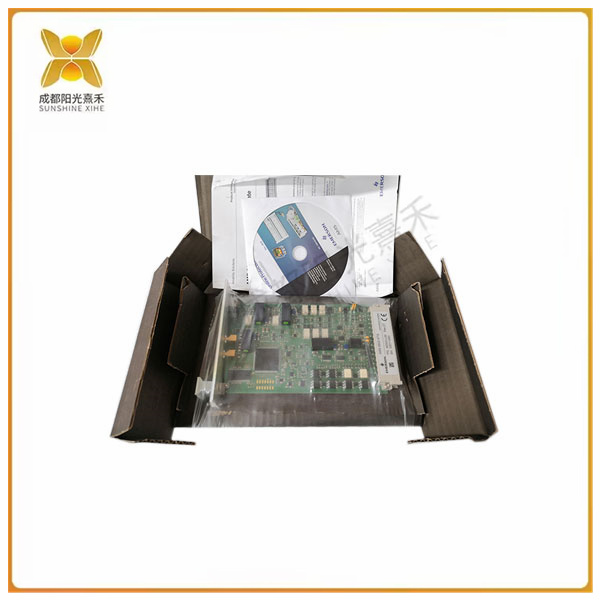

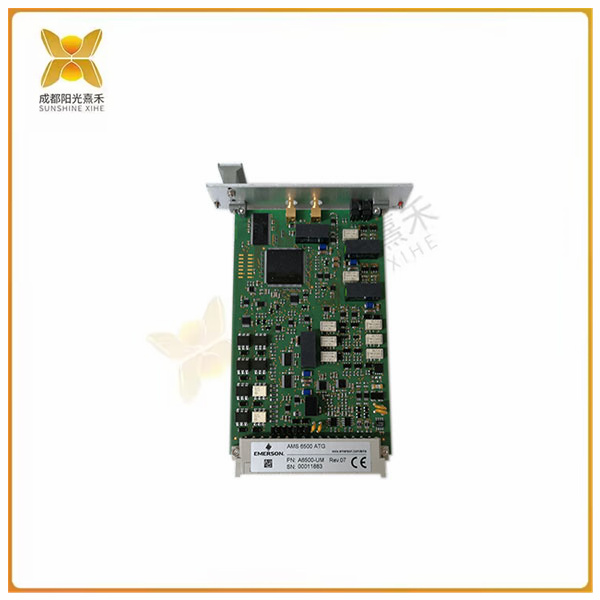

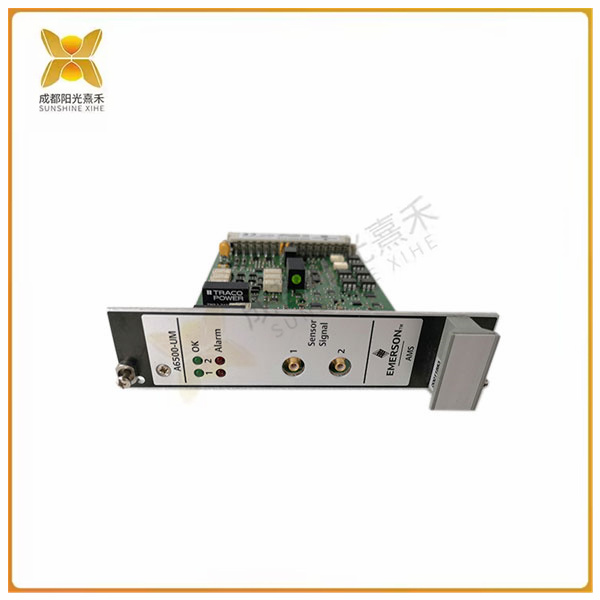

>>>>>型号:A6500-UM ATG机械保护系统 输入通道
【功能描述】
A6500-UM通用测量卡是AMS 6500 ATG机械保护系统的一个组成部分。该卡配备了2个传感器输入通道(独立或组合，根据所选的测量模式)，可与最常见的传感器一起工作，如涡流、压电(加速度计或速度计)、地震(电动力)、LF(低频轴承振动)、霍尔效应和LVDT(与A6500-LC结合)传感器。除此之外，该卡包含5个数字输入和6个数字输出。
测量信号通过内部rs485总线传输到A6500-CC Com卡，并转换为Modbus RTU和Modbus TCP/ IP协议，进一步传输到主机或分析系统。此外，Com卡通过面板上的USB插座提供通信，用于连接PC/笔记本电脑进行卡的配置和测量结果的可视化。除此之外，测量结果可以通过模拟输出0/4 – 20 mA输出。
>>>>>型号:A6500-UM ATG机械保护系统 输入通道
【英文介绍】
The A6500-UM Universal measuring card is an integral part of the AMS 6500 ATG mechanical protection system. The card is equipped with 2 sensor input channels (independent or combined, depending on the selected measurement mode) that work with the most common sensors such as vortex, piezoelectric (accelerometer or speedometer), seismic (electro-dynamic), LF(low frequency bearing vibration), Hall effect and LVDT(combined with A6500-LC) sensors. In addition, the card contains 5 digital inputs and 6 digital outputs.
The measurement signal is transmitted to the A6500-CC Com card via the internal rs485 bus and converted to Modbus RTU and Modbus TCP/ IP protocols for further transmission to the host or analysis system. In addition, the Com card provides communication through a USB socket on the panel, which is used to connect a PC/ laptop for card configuration and visualization of measurement results. In addition, the measurement results can be output by analog output 0/4-20 mA.
