型号:USB-6525
类别:隔离式数字I/OM模块
品牌:NI
16通道、60V、8个固态继电器、8路输入、通道间隔离式数字I/O设备,

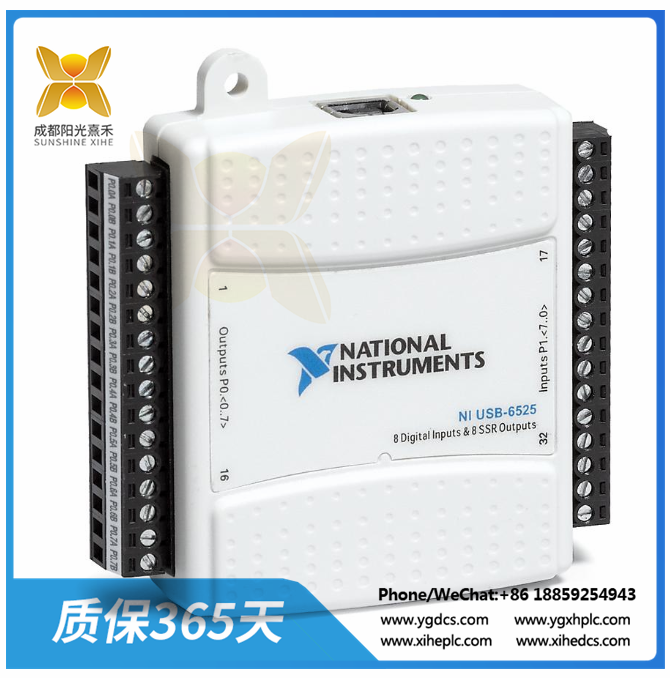

USB-6525是一款总线供电的工业USBIO设备,即使是最苛刻的应用程序也能实现自动化。固态继电器输出非常适合控制泵、阀门、电机和其他各种工业执行器。USB-6525具有通道间隔离数字输入,可用于从工业数字传感器读取数据,以及8个固态继电器输出,开关电压为60 VDC/30Vmms,每通道最大开关电流为500mA。使用可编程上电状态,您可以在软件中配置初始输出状态,以确保连接到工业执行器时无毛刺、安全运行。
触发和排序
NI USB-6525 系列 有 四 种 触发 模式, 用于 控制 波形 生成 的 开始 和 停止 - 单 次 、 连续 、 步进 和 突发 。通过这些触发模式与NI USB-6525系列的链接和环路灵活性相结合,可以创建复杂的波形。借助 256 MB 的内存配置,可以将超过 100 万个波形存储在内存中,并以任意顺序链接。每个波形段最多可以循环 16,777,216 次或无限期循环。可 从 软件 以及 前 面板 连接器 、 PXI 触发 线、 PXI 星形 触发 或 RTSI 总线 接收 触发 信号。
LVDS 数字码型输出
除了 生成 模拟 信号 外,USB-6525系列 的 32 和 256 MB 配置 还 可以 生成 低压 差分 信号 (LVDS) 数字 码 型。LVDS因其降低功耗、降低电磁干扰和抗噪声等特点,越来越多地用于数字信号传输。在数字数据和控制 (DDC) 前面板连接器上生成的数字码型与正在生成的模拟波形相对应,并利用所有链接、环路、触发和定时功能。DDC I/O 连接器上还提供采样时钟,以锁存数字码型。或者,用户可以通过DDC前面板连接器对NI USB-6525系列进行外部时钟。NI 数字 波形 编辑 器 可 作为 附加 软件 包 提供 , 为 创建 LVDS 数字 模式 提供 更多 功能。
Model: USB-6525
Category: Isolated digital I/OM module
Brand :NI
16 channels, 60V, 8 solid-state relays, 8 inputs, isolated digital I/O devices between channels,
The USB-6525 is a bus-powered industrial USBIO device that automates even the most demanding applications. Solid state relay outputs are ideal for controlling pumps, valves, motors, and a variety of other industrial actuators. The USB-6525 features interchannel isolated digital inputs that can be used to read data from industrial digital sensors, as well as eight solid-state relay outputs with a switching voltage of 60 VDC/30Vmms and a maximum switching current of 500mA per channel. With programmable power-on states, you can configure the initial output state in the software to ensure burr free and safe operation when connected to industrial actuators.
Trigger and sort
The NI USB-6525 series has four trigger modes to control the start and stop of waveform generation - single, continuous, step and burst. By combining these trigger modes with the link and loop flexibility of the NI USB-6525 series, complex waveforms can be created. With a memory configuration of 256 MB, more than 1 million waveforms can be stored in memory and linked in any order. Each waveform segment can cycle up to 16,777,216 times or indefinitely. Trigger signals can be received from the software as well as from the front panel connector, PXI trigger wire, PXI star trigger, or RTSI bus.
LVDS digital code type output
In addition to generating analog signals, the 32 and 256 MB configurations of the USB-6525 series can also generate low-voltage differential signal (LVDS) digital code types. LVDS is increasingly used in digital signal transmission because of its characteristics of reducing power consumption, reducing electromagnetic interference and anti-noise. The digital code pattern generated on the digital Data and Control (DDC) front panel connector corresponds to the analog waveform being generated and utilizes all link, loop, trigger and timing functions. A sampling clock is also provided on the DDC I/O connector to latch the digital code type. Alternatively, users can clock the NI USB-6525 series externally via the DDC front panel connector. The NI Digital Waveform editor is available as an add-on software package that provides additional functionality for creating LVDS digital patterns.
