>>>>>型号:2711-K6C5 操作终端 提供实时监控和过程接口
【功能描述】

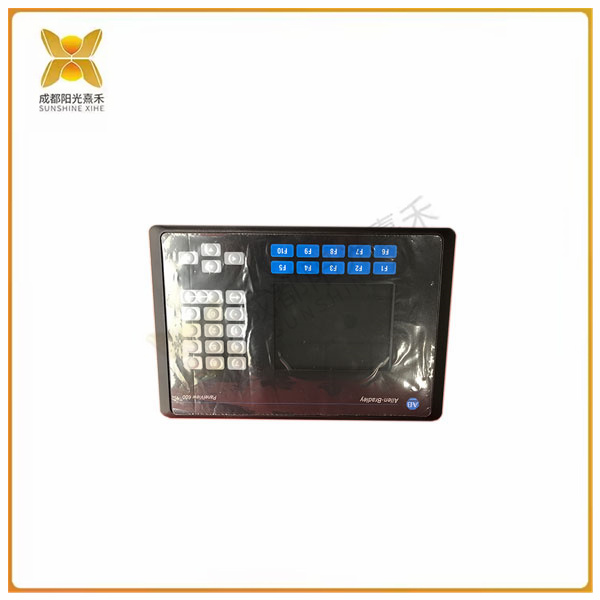

目录号为 2711-K6C5 的 PanelView Standard 操作终端是 Allen-Bradley 的 PanelView 600 可视化组件。该操作终端更广为人知的是人机界面 （HMI），其主要目的是通过嵌入在 HMI 中的功能组合为过程操作员提供实时监控和过程接口。
过程可视化是通过 5 英寸彩色图形显示器实现的，其中可以实现带有颜色编码信息的动画。这款彩色屏幕的功能显示区域为 115 x 86 毫米（4.54 x 3.4 英寸）。屏幕分辨率为 320 x 234 像素。屏幕与内部背光配对，可现场更换，预计运行时间可达 50,000 小时。 操作员控制和界面由嵌入式键盘提供，该键盘由十 （10） 个功能键、导航键和数字键组成。
每个键都执行单独的功能，功能键能够接受本地和全局分配。这些键预计最多可执行 100 万次操作，并可与功能键图例插入一起安装。
2711-K6C5 具有 DH485 通信端口，与 Allen-Bradley 的不同可编程逻辑控制器 （PLC） 产品兼容，例如 SLC 500、MicroLogix、CompactLogix 和 ControlLogix 处理器。它还与第三方控制器和设备兼容，以实现过程可视化和集中监控。
2711-K6C5 是小型机器和工艺的理想选择。它具有内置的 0 240KB 非易失性存储器和 190KB 运行时应用程序存储器。它的额定电源输入范围为 85-264V AC，频率为 47-63 Hz。 这款 PV 600 具有鲜艳的 5 英寸。
>>>>>型号:2711-K6C5 操作终端 提供实时监控和过程接口
【英文介绍】
The PanelView Standard Operating terminal, catalog number 2711-K6C5, is Allen-Bradley's PanelView 600 visual component. Better known as the Human Machine Interface (HMI), the main purpose of this operating terminal is to provide process operators with real-time monitoring and process interfaces through a combination of functions embedded in the HMI.
Process visualization is achieved through a 5-inch color graphic display where animations with color-coded information can be implemented. The color screen has a functional display area of 115 x 86 mm (4.54 x 3.4 inches). The screen resolution is 320 x 234 pixels. The screen is paired with an internal backlight and can be replaced on site, with an estimated operating time of up to 50,000 hours. Operator control and interface are provided by an embedded keyboard consisting of ten (10) function keys, navigation keys, and number keys.
Each key performs a separate function, and function keys are capable of accepting both local and global assignments. These keys are expected to perform up to 1 million operations and can be installed with function key legend inserts.
The 2711-K6C5 has a DH485 communication port and is compatible with different programmable logic controller (PLC) products from Allen-Bradley, such as the SLC 500, MicroLogix, CompactLogix, and ControlLogix processors. It is also compatible with third-party controllers and devices for process visualization and centralized monitoring.
The 2711-K6C5 is ideal for small machines and processes. It has built-in 0 240KB of non-volatile memory and 190KB of runtime application memory. It has a rated power input range of 85-264V AC and a frequency of 47-63 Hz. This PV 600 has a vivid 5-inch.
