>>>>>型号:1753-L32BBBM-8A 安全控制器 高速计数器
【功能描述】

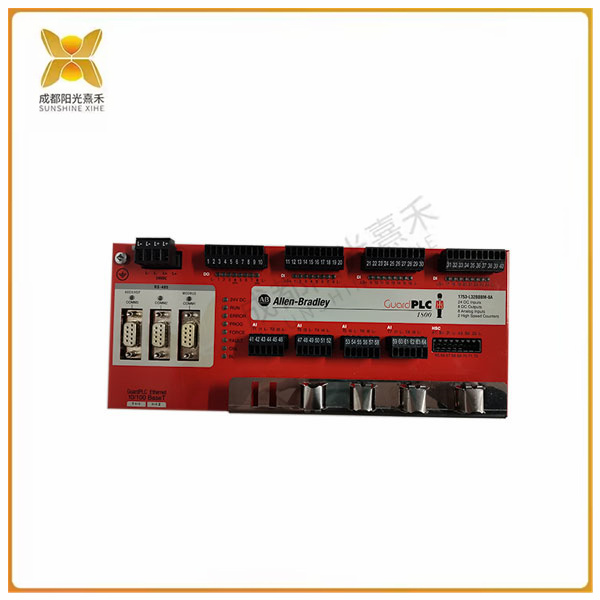

Allen-Bradley 1753-L32BBBM-8A 是 GuardPLC 1800 系列的安全控制器。该控制器在 GuardPLC 控制器中具有最多的 I/O 点。它配备了 32 个 I/O 点（24 个输入和 8 个输出，没有一个是电气隔离的）。输出通道 4 和 8 在 60 摄氏度时可承受 1 安培的电流，其他通道的额定电流为 0.5 安培。1753-L32BBBM-8A 控制器还具有 2 个（非电气隔离）高速计数器，分辨率为 24 位。安装了 250 KB 的用户程序存储器和 250 KB 的应用数据存储器，以支持微处理器进行故障处理。该设备将检测其控制系统行为中的故障，并将故障模块的所有受影响的输入和输出置于安全状态。
1753-L32BBBM-8A GuardPLC 1800 控制器的特点是 Modbus 通信选项。用户可以使用此通信协议与其他工业自动化设备交换信号值和其他数据。Allen-Bradley 1753-L32BBBM-8A 设计用于连接到 24 伏直流/8 安培电源。它采用 IP20 防护外壳，尺寸为 114 毫米（4.49 英寸）x 257 毫米（10.1 英寸）x 80 毫米（3.15 英寸），包括屏蔽板。它的重量约为 2.6 磅（1.2 千克）。请勿在 0 至 60 摄氏度（32 至 140 华氏度）温度范围之外使用本设备。该控制器已通过严格的测试，通过了 CE、C-Tick 和 c-UL-us 标准认证。
>>>>>型号:1753-L32BBBM-8A 安全控制器 高速计数器
【英文介绍】
Allen-Bradley 1753-L32BBM-8A is the GuardPLC 1800 series safety controller. This controller has the most I/O points among GuardPLC controllers. It is equipped with 32 I/O points (24 inputs and 8 outputs, none of which are electrically isolated). Output channels 4 and 8 can withstand a current of 1 amp at 60 degrees Celsius, while the other channels are rated for 0.5 amp. The 1753-L32BBM-8A controller also features 2 (non-electrically isolated) high-speed counters with a resolution of 24 bits. 250 KB of user program memory and 250 KB of application data memory were installed to support the microprocessor for troubleshooting. The device will detect faults in the behavior of its control system and place all affected inputs and outputs of the failed module in a safe state.
The 1753-L32BBM-8A GuardPLC 1800 controller features a Modbus communication option. Users can use this communication protocol to exchange signal values and other data with other industrial automation equipment. Allen-Bradley 1753-L32BBM-8A is designed to connect to a 24 volt DC /8 amp power supply. It features an IP20 protective housing measuring 114 mm (4.49 in) x 257 mm (10.1 in) x 80 mm (3.15 in), including a shield plate. It weighs about 2.6 pounds (1.2 kg). Do not use this device outside the temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). The controller has passed rigorous testing and is certified to CE, C-Tick and c-UL-us standards.
