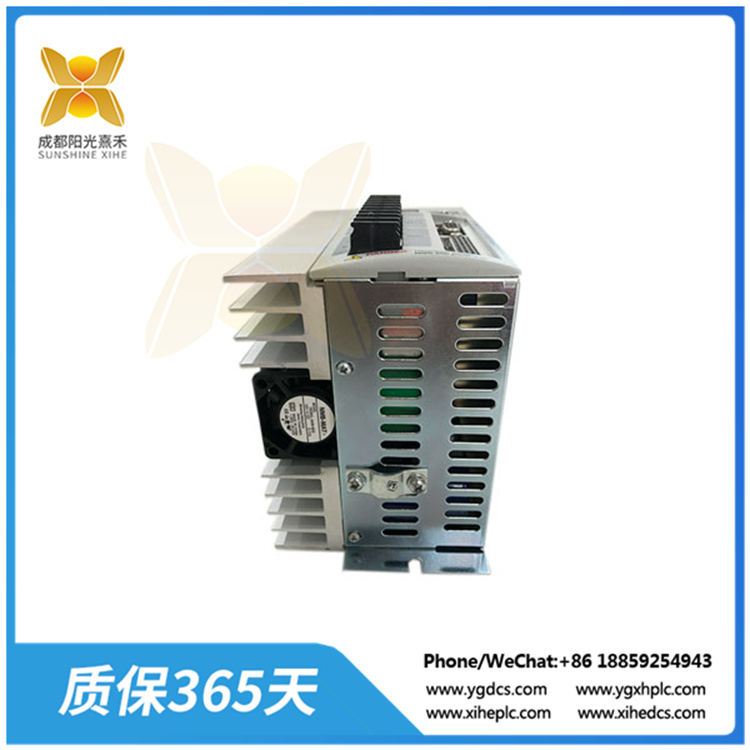

>>>型号:2098-DSD-020X 运动控制元件 用于工业自动化和控制系统 内置索引功能
【功能描述】
2098-DSD-020X是一款运动控制元件，具体属于Ultra 3000产品系列中的数字伺服驱动器（DSD）。这款驱动器在工业自动化和控制系统中扮演着至关重要的角色，尤其在需要高精度和稳定性能的应用场景中。
2098-DSD-020X它主要用于连接伺服电机，并接受来自Allen-Bradley正弦/余弦编码器的反馈位置数据，以及来自特定型号的增量外部编码器的数据。这使得它能够精确地控制伺服电机的运动，满足各种复杂的运动控制需求。
在电源和性能方面，2098-DSD-020X可在120VAC / 240 VAC、单相、50-60 Hz的输入电源电压和18安培的输入电流下工作。它提供120 / 240 VAC的输出电压，并具有3相、0-400 Hz的可编程频率范围。此外，该驱动器还具
有10安培的最大连续输出电流和30安培的最大峰值输出电流，能够在不同负载条件下提供稳定的动力输出。
在功率输出方面，2098-DSD-020X在115 VAC输入时产生115 kW的连续输出功率，在230 VAC输入时产生2.0 kW的连续输出功率。这样的功率输出能力使其能够满足各种高功率需求的应用场景。
2098-DSD-020X还具有多种高级功能。它集成了DeviceNet通信接口，允许驱动器直接与支持DeviceNet的控制器进行高速通信，覆盖更长的距离。这大大提高了数据传输的效率和可靠性，使得整个系统能够更快速地响应各种变化。
2098-DSD-020X还具有内置索引功能。通过分度功能，预配置的伺服电机运动可以存储在伺服驱动器的内存中。这使得用户能够为特定负载或产品类型选择预定义的分度曲线，从而简化了运动控制的设置和调整过程。
在环境适应性方面，2098-DSD-020X的工作冲击为15g (3个脉冲，11毫秒)，非操作冲击为30 g (3个脉冲，11 ms)，设计用于在2.5 g振动下保持最佳功能。此外，它可在高达1000米(3280英尺)的海拔高度下运行，无需降额。其工作
温度为0 -55摄氏度(32-131华氏度)，储存温度为-40-70°C(-40-158°F)，相对湿度为5-95%，无冷凝。这些特性使得该驱动器能够适应各种恶劣的工业环境。
>>>>型号:2098-DSD-020X 运动控制元件 用于工业自动化和控制系统 内置索引功能
【英文介绍】
The 2098-DSD-020X is a motion control element belonging specifically to the Digital Servo Drive (DSD) in the Ultra 3000 product family. These drives play a vital role in industrial automation and control systems, especially
in applications that require high precision and stable performance.
2098-DSD-020X It is primarily used to connect servo motors and accepts feedback position data from Allen-Bradley sine/cosine encoders, as well as data from incremental external encoders of specific models. This enables it
to precisely control the motion of the servo motor to meet a variety of complex motion control needs.
In terms of power supply and performance, the 2098-DSD-020X can operate at 120VAC / 240 VAC, single-phase, 50-60 Hz input power supply voltage and 18 amps input current. It offers an output voltage of 120/240 VAC
and has a 3-phase, 0-400 Hz programmable frequency range. In addition, the driver has a maximum continuous output current of 10 amps and a maximum peak output current of 30 amps, providing stable power output
under different load conditions.
In terms of power output, the 2098-DSD-020X produces 115 kW continuous output at 115 VAC input and 2.0 kW continuous output at 230 VAC input. This power output capability enables it to meet a variety of applications
with high power requirements.
The 2098-DSD-020X also has several advanced features. It integrates the DeviceNet communication interface, allowing drivers to communicate directly with Devicenet-enabled controllers at high speeds, covering longer distances.
This greatly improves the efficiency and reliability of data transmission, allowing the entire system to respond more quickly to various changes.
The 2098-DSD-020X also has a built-in indexing function. With the indexing function, pre-configured servo motor movements can be stored in the memory of the servo drive. This enables users to select a predefined indexing curve
for a specific load or product type, simplifying the process of setting up and adjusting motion controls.
In terms of environmental adaptability, the 2098-DSD-020X has a working shock of 15g (3 pulses, 11 ms) and a non-operating shock of 30 g (3 pulses, 11 ms) and is designed to maintain optimal function at 2.5 g vibration. In addition,
it can operate at altitudes up to 1,000 meters (3,280 feet) without derating. Its operating temperature is 0-55 degrees Celsius (32-131 degrees Fahrenheit), storage temperature is -40-70°C(-40-158°F), relative humidity is 5-95%, and
there is no condensation. These characteristics enable the drive to adapt to a variety of harsh industrial environments.
