>>>型号:1756-TBNH 可拆卸接线端子 用于多种工业环境和应用场景



【功能描述】

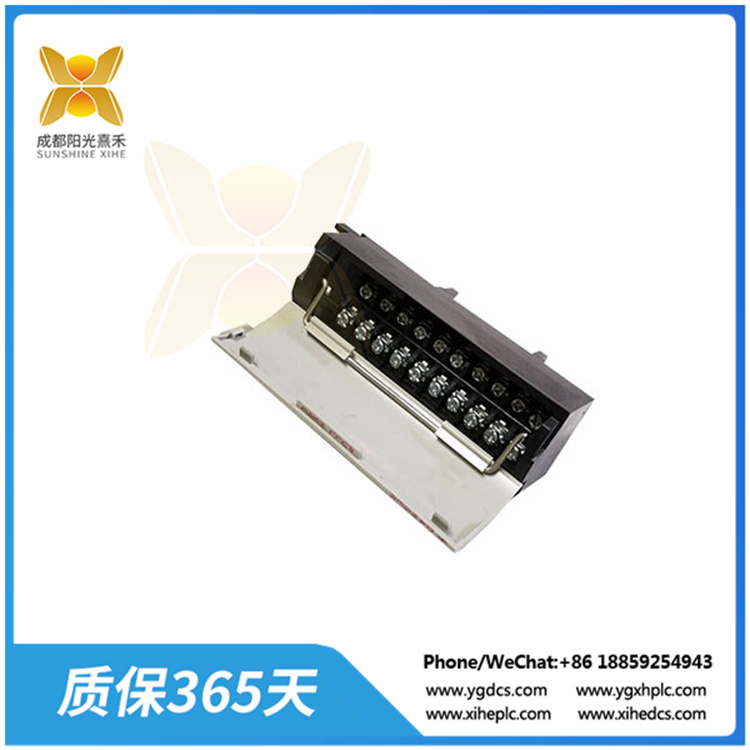

1756-TBNH是一款由在ControlLogix系列中制造的可拆卸接线端子或RTB(远程端子块)模块。它主要用于连接1756 I/O模块和工业厂房布线,能够灵活地互连这些组件。

1756-TBNH这款模块具有多种特性,如它是一个20位NEMA螺丝夹,具有1.36 Nm的螺丝扭矩和8毫米(5/16英寸)的螺丝刀宽度。其尺寸为5.51 x 4.41 x 5.71英寸,重量为0.3磅。此外,它还支持使用0.33~2.1 mm²

(22~14 AWG)实线或绞合铜线,这些线必须额定为90°C(194°F)或更高,并且绝缘规格最大为1.2 mm(3/64英寸)。

在功能方面,1756-TBNH模块能够接收、存储用户通过编程器等输入设备输入的程序和数据,通过I/O部件接收现场信号的状态或数据并存入输入映像寄存器或数据存储器中,执行用户程序,完成各种数据的处理、传输和

存储相应的内部控制信号,以完成用户指令规定的各种操作,并响应各种外围设备的请求。

总的来说,1756-TBNH是一款功能强大的可拆卸接线端子或RTB模块,适用于多种工业环境和应用场景。不过,对于具体的应用场景、接线方式、安装步骤等,建议参考产品手册或联系专业的技术支持以获取更详细的信息。

同时,在使用任何工业自动化设备时,务必遵循相关的安全操作规程,确保人员和设备的安全。


>>>>型号:1756-TBNH 可拆卸接线端子 用于多种工业环境和应用场景


英文介绍



The 1756-TBNH is a detachable terminal or RTB (Remote Terminal Block) module manufactured in the ControlLogix series. It is mainly used to connect 1756 I/O modules and industrial plant wiring, allowing

flexible interconnection of these components.

The 1756-TBNH module has a variety of features, such as it is a 20-bit NEMA screw clamp with 1.36 Nm of screw torque and an 8 mm (5/16 in) screwdriver width. It measures 5.51 x 4.41 x 5.71 inches and weighs

0.3 pounds. In addition, it supports the use of 0.33 to 2.1 mm² (22 to 14 AWG) solid or stranded copper wires, which must be rated at 90°C (194°F) or higher and have an insulation specification of up to 1.2 mm (3/64 inch).

In terms of functions, the 1756-TBNH module can receive and store the programs and data input by the user through the input device such as the programmer, receive the status or data of the field signal through the

I/O component and store it in the input image register or data memory, execute the user program, complete the processing of various data, transmit and store the corresponding internal control signal. To complete various

 operations specified by user instructions, and respond to various peripheral device requests.

Overall, the 1756-TBNH is a powerful detachable terminal or RTB module suitable for a variety of industrial environments and application scenarios. For details about application scenarios, cable connections, and installation

procedures, you are advised to refer to the product documentation or contact technical support engineers. At the same time, when using any industrial automation equipment, it is necessary to follow the relevant safety

operating procedures to ensure the safety of personnel and equipment.

>>>>型号:1756-TBNH 可拆卸接线端子 用于多种工业环境和应用场景
