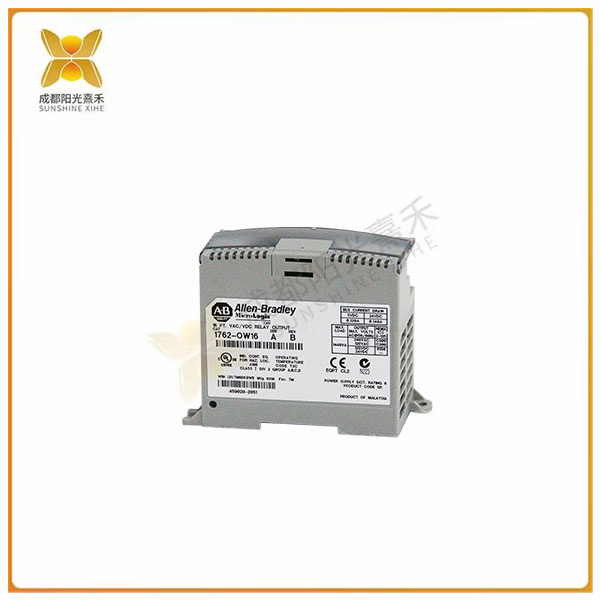

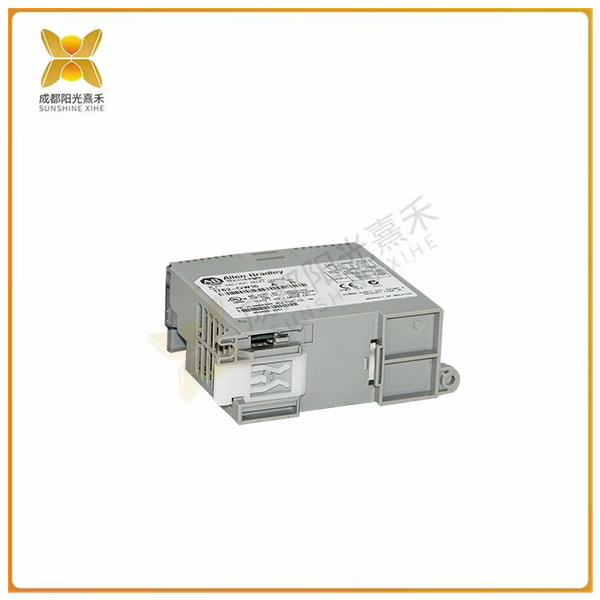

>>>>>型号:1762-OW16 继电器输出模块 兼容用于电气负载
【功能描述】
1762-OW16是一款MicroLogix继电器输出扩展模块。该模块用于增强MicroLogix 1100、1200和1400可编程逻辑控制器（PLC）的输出能力。它兼容用于电气负载的通电和断电。
该模块具有十六（16）个继电器触点输出，可在24-125VDC和120-240 VAC电压范围内运行。对于ON到OFF和OFF到ON的转换，每个输出通道的信号延迟时间为10 ms。模块每个点的额定连续电流为2.5 A，每个公共端的连续电流为8A，每个模块的连续电流为16A。1762-OW16有两（2）个输出组，每个组由八（8）个通道组成。第0组由输出0-7组成，而第1组由输出8-15组成。
建议将浪涌抑制器安装在感性负载上。这种浪涌抑制器可以为感性负载的高浪涌电流提供保护，从而有助于延长模块的使用寿命。
当与MixroLogix 1100控制器一起使用时，最多可以安装此模块的四（4）个实例。如果与MicroLogix 1200一起使用，则最多支持六（6）个模块，而与MicroLogix 1500一起使用时允许七（7）个模块。
该模块的物理尺寸为90 x 40.4 x 87毫米（3.54 x 1.59 x 3.43英寸）包括安装片在内的高度为110毫米（4.33英寸）。安装取决于基本控制器。作为MicroLogix 1100/1200和1400控制器的标准配置，该模块支持直接面板安装的DIN导轨。
>>>>>型号:1762-OW16 继电器输出模块 兼容用于电气负载
【英文介绍】
The 1762-OW16 is a MicroLogix relay output expansion module. This module is used to enhance the output capabilities of MicroLogix 1100, 1200 and 1400 programmable logic controllers (PLCS). It is compatible for powering on and off electrical loads.
The module has sixteen (16) relay contact outputs and operates in the 24-125VDC and 120-240 VAC voltage ranges. For ON-to-OFF and off-to-on conversions, the signal delay time for each output channel is 10 ms. The continuous current rating of each point of the module is 2.5 A, the continuous current of each common end is 8A, and the continuous current of each module is 16A. The 1762-OW16 has two (2) output groups, each consisting of eight (8) channels. Group 0 consists of outputs 0-7, while group 1 consists of outputs 8-15.
It is recommended to install the surge suppressor on the inductive load. This surge suppressor provides protection against the high surge current of inductive loads, thereby helping to extend the service life of the module.
When used with the MixroLogix 1100 controller, up to four (4) instances of this module can be installed. Up to six (6) modules are supported if used with the MicroLogix 1200, while seven (7) modules are allowed when used with the MicroLogix 1500.
The module has a physical dimension of 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 inches) and a height of 110 mm (4.33 inches) including mounting pieces. Installation depends on the base controller. As standard with the MicroLogix 1100/1200 and 1400 controllers, the module supports DIN rails for direct panel mounting.
