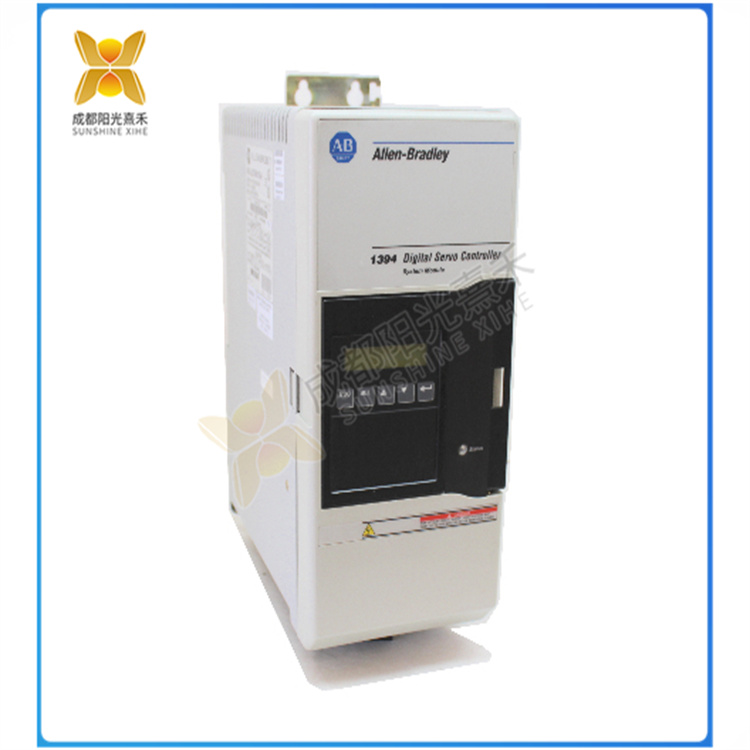

1394C-SJT22-A 伺服控制器

>>>>>型号:1394C-SJT22-A 伺服控制器 【功能描述】 1394C-SJT22-A是一款伺服控制器。这款控制器具有模拟模块功能,并配备10伏直流模拟接口。作为C系列系统模块,它拥有智能电源、EMI过滤和改进的终端等功能。该控制器最多可支持四个轴,可以用作速度或扭矩控制器。1394C-SJT22-A具有一个SCANport接口,能够在直流电压下提供高达

电话/Phone:18859254943 (微信同号)

邮箱/Email:sales@ygdcs.com

QQ:3561040004

产品详情

>>>>>型号:1394C-SJT22-A 伺服控制器



【功能描述】



1394C-SJT22-A是一款伺服控制器。

这款控制器具有模拟模块功能,并配备±10伏直流模拟接口。作为C系列系统模块,它拥有智能电源、EMI过滤和改进的终端等功能。该控制器最多可支持四个轴,可以用作速度或扭矩控制器。

1394C-SJT22-A具有一个SCANport接口,能够在直流电压下提供高达33.8安培的连续输出电流,并具备22千瓦的连续输出功率。它还配有一个三相电源,并具有多种电源输入选项。

在诊断功能方面,1394C-SJT22-A配备了电流监视器、热过载检测和反馈信号监视器,从而能够实时监控系统状态并及时发现潜在问题。

这款伺服控制器还具有数模转换器(DAC)板,用于执行数模转换。DAC板执行12位正真偏移二进制输入编码字的模拟转换,输出范围为-10至+10伏,为每个传感器

提供4.88mV的分辨率数字输入1 LSB变化。这种高分辨率的转换能力使得该控制器能够精确控制各种伺服系统。



>>>>>型号:1394C-SJT22-A 伺服控制器


英文介绍



The 1394C-SJT22-A is a servo controller.

The controller features an analog module function and a ±10 volt DC analog interface. As a CSeries system module, it has features such as intelligent power supply,

EMI filtering, and improved terminals. The controller supports up to four axes and can be used as a speed or torque controller.

The 1394C-SJT22-A features a SCANport interface that delivers up to 33.8 amps of continuous output current at DC voltage and 22 kW of continuous output power.

 It also comes with a three-phase power supply and has a variety of power input options.

In terms of diagnostic functions, the 1394C-SJT22-A is equipped with a current monitor, thermal overload detection and feedback signal monitor, which enables

real-time monitoring of system status and timely detection of potential problems.

This servo controller also has a digital-to-analog converter (DAC) board for performing digital-to-analog conversion. The DAC board performs an analog conversion

of a 12-bit true-offset binary input coded word with an output range of -10 to +10 volts, providing a resolution of 4.88mV per sensor for digital input with 1 LSB variation.

 This high resolution conversion capability enables the controller to precisely control a variety of servo systems.

>>>>>型号:1394C-SJT22-A 伺服控制器





标签: 1394C-SJT22-A
