0-60031-5 输入/输出分解器驱动PMI模块

>>>>>型号:0-60031-5 输入/输出分解器驱动PMI模块 【功能描述】 0-60031-5输入/输出分解器驱动PMI模块0-60031-5是电路板,作为其各种驱动系统的组件,最常见的是Automate系列驱动器,0-60031-5被视为过时零件,不再生产。0-60031-5是一个解析器和驱动I/0 PMI模块,该组件有一个附加的窄面板,其下半部分有两个母

电话/Phone:18859254943 (微信同号)

邮箱/Email:sales@ygdcs.com

QQ:3561040004

产品详情

>>>>>型号:0-60031-5 输入/输出分解器驱动PMI模块



【功能描述】



0-60031-5输入/输出分解器驱动PMI模块

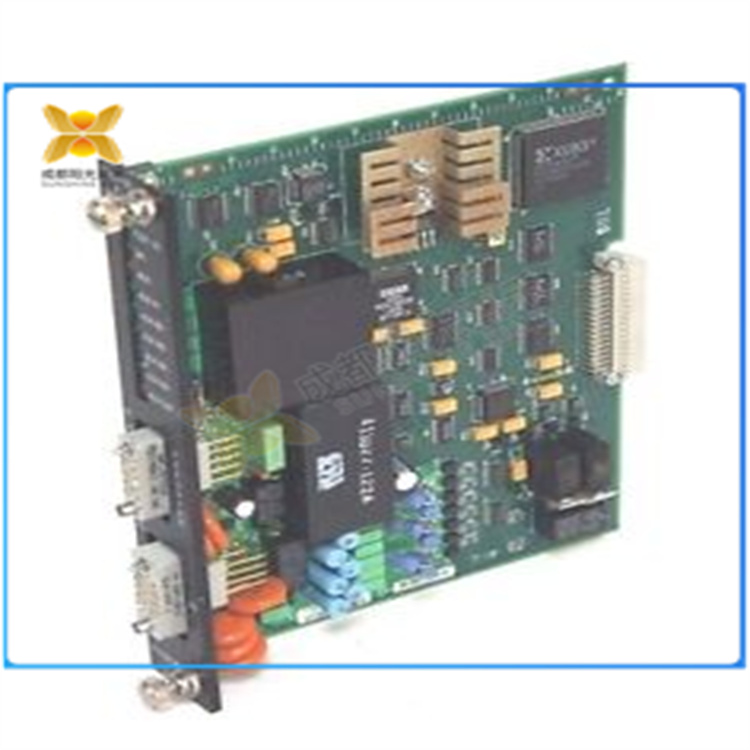

0-60031-5是电路板,作为其各种驱动系统的组件,最常见的是Automate系列驱动器,0-60031-5被视为过时零件,不再生产。

0-60031-5是一个解析器和驱动I/0 PMI模块,该组件有一个附加的窄面板,其下半部分有两个母插头连接器。这些标记为“解析器反馈”和“驱

动I/0”。该板还有九个led指示灯(装裱成两绿一红五绿一红的图案。)这些标记为fdbk ok、rpi、mcr、aux in1、aux in2、auxin3、aux in4.

auxin5和aux out.

0-60031-5板组件包括一个位于后边缘中心的多针直角接口连接器。它有三个继电器、一个电感线圈.

一个变压器、盘形电容器、高压电容器、晶体管、电阳器和二极管。该板有一个安装在散热器内的3000uV双极性运算放大器。

这位于左侧板边缘。它还拥有超过35个集成电路,包括现场可编程门阵列。



>>>>>型号:0-60031-5 输入/输出分解器驱动PMI模块


英文介绍



0-60031-5 I/O resolver Drives the PMI module

The 0-60031-5 is a circuit board, used as a component in its various drive systems, most commonly the

Automate series drives, and the 0-60031-5 is considered an obsolete part and is no longer produced.

The 0-60031-5 is a parser and driver I/0 PMI module that has an attached narrow panel with two female

plug connectors in its lower half. These are labeled "parser feedback" and "drive.

Move I/0 ". The board also has nine led indicators (framed in a pattern of two green, one red, five green

and one red). These are labeled fdbk ok, rpi, mcr, aux in1, aux in2, auxin3, aux in4.

auxin5 and aux out.

The 0-60031-5 board assembly includes a multi-pin right Angle interface connector located in the center

of the back edge. It has three relays and an inductor. A transformer, disk capacitor, high voltage capacitor,

transistor, electric generator and diode. The board has a 3000uV bipolar operational amplifier mounted

inside a heat sink. This is on the left edge of the plate. It also has more than 35 integrated circuits, including field programmable gate arrays.

>>>>>型号:0-60031-5 输入/输出分解器驱动PMI模块






标签: 0-60031-5
