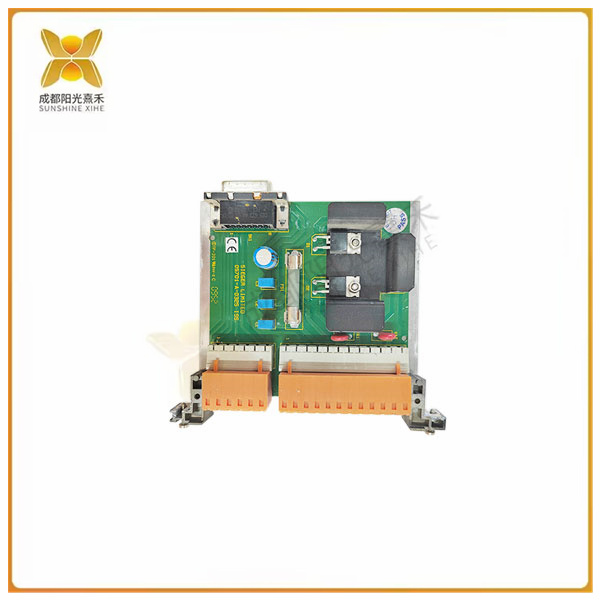

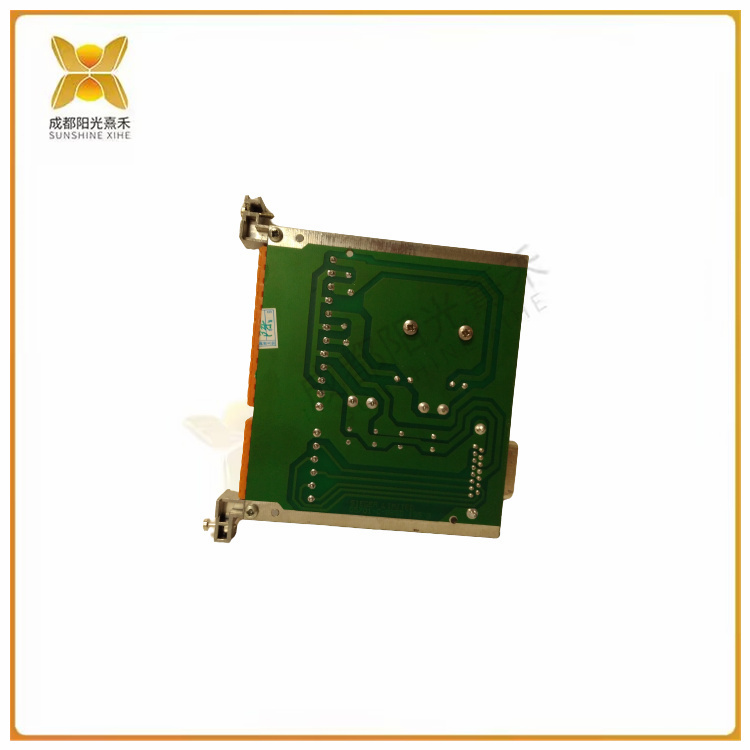

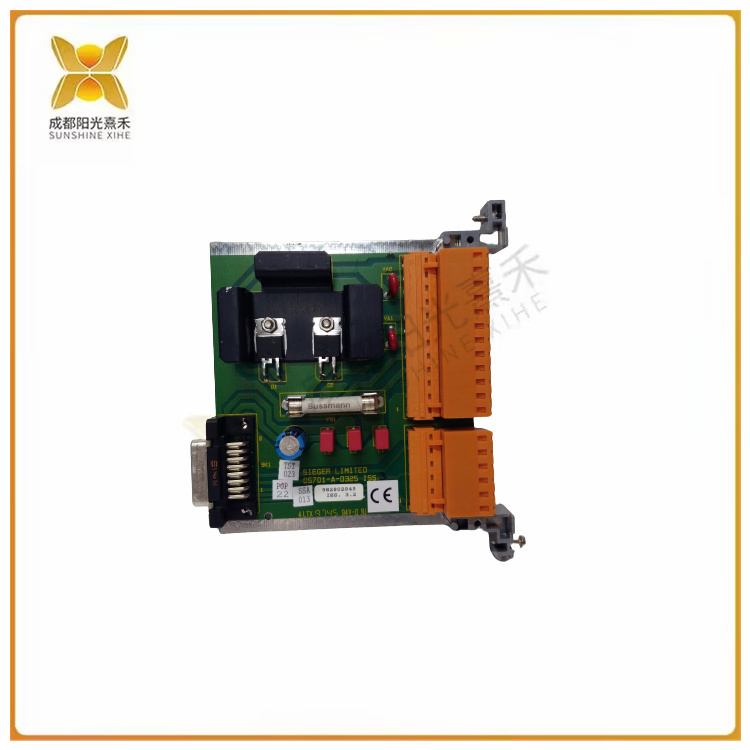

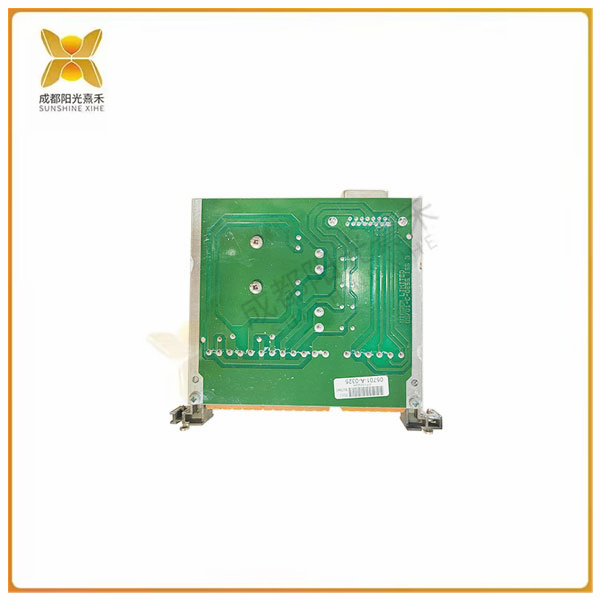

>>>>>型号:05701-A-0325 DC输入卡 24V直流电源提供
【功能描述】
制造商:霍尼韦尔
产品编号:05701-A-0325
产品类型:DC输入卡
机架的直流电可以通过dc输入卡进入子机架。该电源可由用户从外部标称24V直流电源提供。直流电源通过工程卡和子机架背板连接到机架中的所有卡，并由dc输入卡上的保险丝保护。有一个由两部分组成的端子板TB1，有助于在不断开每根连接导线的情况下移除卡。
为了防止在使用八个以上5704催化卡的安装中沿机架背板出现过大电流，建议控制卡通过其相关的四继电器接口卡和仅用于为工程卡供电的DC输入卡供电。
如果需要，备用电池电源也可以连接到辅助直流输入连接。
PSU和辅助连接通过二极管相互隔离。
DC输入卡还提供RFI过滤和反极性保护。
工业自动化:HONEYWELL 05701-A-0325通信模块通常用于工业自动化系统,以促进数据交换和控制的PLCS,SCAD系统和其他设备。它们能够在自动化网络中实现无缝通信和数据共享。
建筑物自动化:在商业和工业建筑中,HONEYWELL 05701-A-0325通信模块可用于不同的建筑物自动化系统之间的通信,如空调控制系统、照明控制系统和安全系统。
过程控制:HONEYWELL 05701-A-0325通信模块可用于过程控制应用,以便在各种仪器、控制器和监测系统之间连接和交换数据。
数据采集和远程监测:HONEYWELL 05701-A-0325通信模块通常用于数据采集和远程监测应用,需要将来自远程传感器或设备的数据传输到中央控制系统。
能源管理:在能源管理系统中,HONEYWELL 05701-A-0325通信模块可用于实现能源表、电力管理设备和能源监测系统之间的通信。
工业网络:HONEYWELL 05701-A-0325通信模块可用于工业网络应用,以建立不同网络节点和设备之间可靠和高效的通信。
>>>>>型号:05701-A-0325 DC输入卡 24V直流电源提供
【英文介绍】
Manufacturer: Honeywell
Product Number :05701-A-0325
Product type :DC input card
The direct current of the rack can enter the sub-rack through the dc input card. The power supply can be supplied by the user from an external nominal 24V DC power supply. The dc power supply is connected to all cards in the rack via the engineering card and subrack backplane, and is protected by a fuse on the DC input card. There is a two-part terminal board, TB1, which helps to remove the card while constantly opening each connecting wire.
To prevent excessive current along the rack backplane in installations using more than eight 5704 catalytic cards, it is recommended that the control card be powered through its associated four-relay interface card and the DC input card used to power the engineering card only.
Backup battery power can also be connected to a secondary DC input connection if required.
The PSU and auxiliary connections are isolated from each other by diodes.
The DC input card also provides RFI filtering and reverse polarity protection.
Industrial Automation :HONEYWELL 05701-A-0325 communication modules are commonly used in industrial automation systems to facilitate data exchange and control of PLCS,SCAD systems and other equipment. They enable seamless communication and data sharing in automated networks.
Building automation: In commercial and industrial buildings, the HONEYWELL 05701-A-0325 communication module can be used to communicate between different building automation systems, such as air conditioning control systems, lighting control systems and security systems.
Process control: The HONEYWELL 05701-A-0325 communication module can be used in process control applications to connect and exchange data between various instruments, controllers and monitoring systems.
Data acquisition and remote monitoring :HONEYWELL 05701-A-0325 communication modules are commonly used in data acquisition and remote monitoring applications that require the transmission of data from remote sensors or devices to a central control system.
Energy Management: In energy management systems, the HONEYWELL 05701-A-0325 communication module can be used to enable communication between energy meters, power management equipment and energy monitoring systems.
Industrial Networking: The HONEYWELL 05701-A-0325 communication module can be used in industrial networking applications to establish reliable and efficient communication between different network nodes and devices.
