>>>>>型号:369-HI-R-M-F-E-H-E 保护继电器 同时在两个控制输入功率级别
【功能描述】

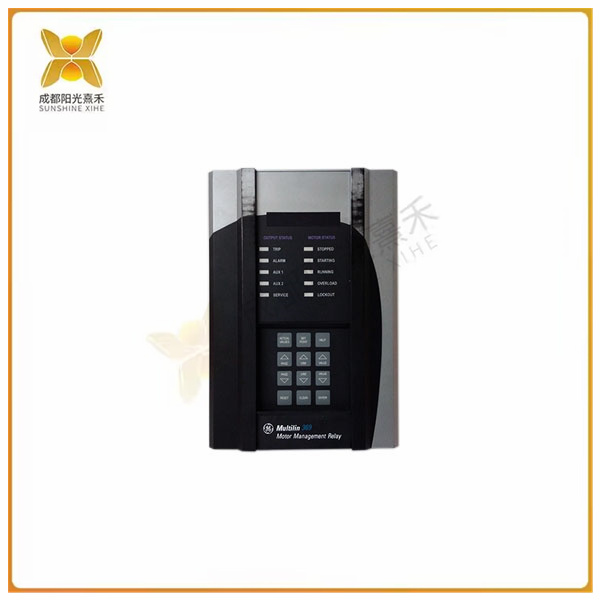

369-HI-R-M-F-0-H-E是一款369电机保护继电器。该系列继电器设计用于保护电机(三相)和相关系统,同时在两个控制输入功率级别上提供许多基本功能和选项。
369-HI-R-M-F-0-H-E 提供了多种选择。这包括 12 个 RTD 输入。RTD 单元位于单元背面的左侧。该装置还具有可选的计量包。计量包增加了对 VT 输入的访问,这将允许电压和功率元件。使用此选项可以计量 Hz、kVA、KW、伏特和兆瓦时。
369-LO-0-M-F-E-0 还安装了额外的光纤端口。光纤端口的波特率为 1200 至 19200,并使用 Modbus RTU 协议。这用于通道 3。当用于通道 3 时,通道 3 RS485 连接将被禁用。但是,该装置仍将有其他可用的 RS485 端口。此外,该装置还有一个 RS232 端口,可用于连接 PC。这通常用于与 GE 的 EnerVista 软件进行通信。
有关此版本 369 继电器的其他信息,或有关 369 安装、处理或维护的一般信息,可通过 GE 手册和用户指南找到。
>>>>>型号:369-HI-R-M-F-E-H-E 保护继电器 同时在两个控制输入功率级别
【英文介绍】
The 369-HI-R-M-F-0-H-E is a 369 motor protection relay. This series of relays is designed to protect motors (three-phase) and associated systems while providing many basic features and options at both control input power levels.
The 369-HI-R-M-F-0-H-E offers a variety of options. This includes 12 RTD inputs. The RTD unit is located on the left side of the back of the unit. The unit also has an optional metering package. The metering package increases access to the VT input, which will allow both voltage and power components. With this option, you can measure Hz, kVA, KW, volts, and megawatt-hours.
The 369-LO-0-M-F-E-0 also has an additional fiber optic port installed. The fiber optic port has a baud rate of 1200 to 19200 and uses the Modbus RTU protocol. This is used for channel 3. When used in channel 3, the RS485 connection in channel 3 is disabled. However, the device will still have other RS485 ports available. In addition, the unit has an RS232 port that can be used to connect to a PC. This is commonly used to communicate with GE's EnerVista software.
Additional information about this version of the 369 relay, or general information about the installation, handling, or maintenance of the 369, can be found in GE manuals and user guides.
