>>>>>型号:IS200TTURH1CFD 终端板 具有多个表面贴装继电器
【功能描述】
IS200TTURH1C是通用电气的终端板。该板旨在与该公司后来的Speedtronic系统兼容。这包括Mark VI和Mark VIe系统这两个系统以及早期Speedtronic系统的组件保留了现成的、随时可以发货的库存。自1960年代后期最早的迭代（Mark I）可用于工业燃气轮机和蒸汽轮机管理以来，Speedtronic系统逐渐变得更加复杂。
IS200TTURH1C主要是矩形的，有一些小切口。该板与其他PCB（如PTUR和VTUR板）一起使用，以控制发电机的同步。这主要是通过硬件和连接来完成的。

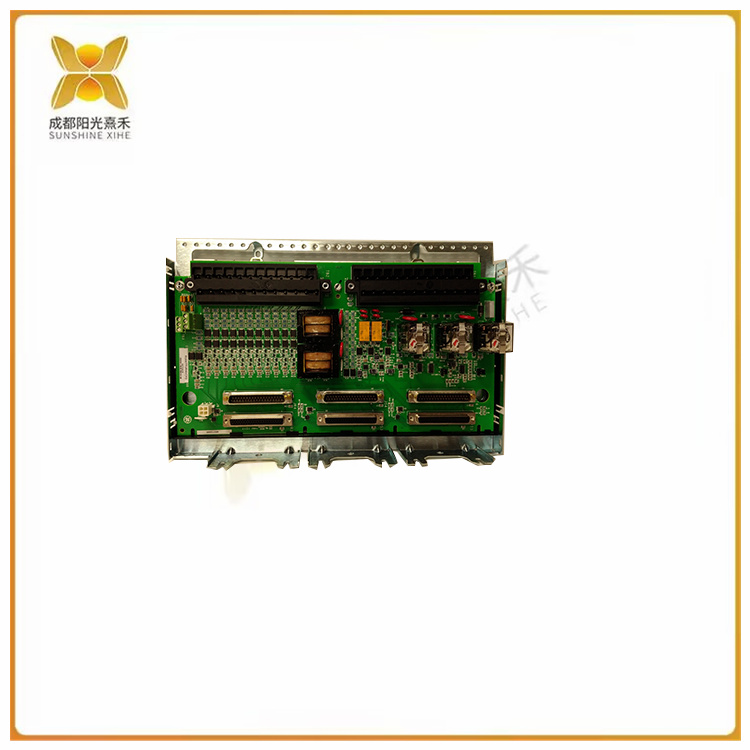

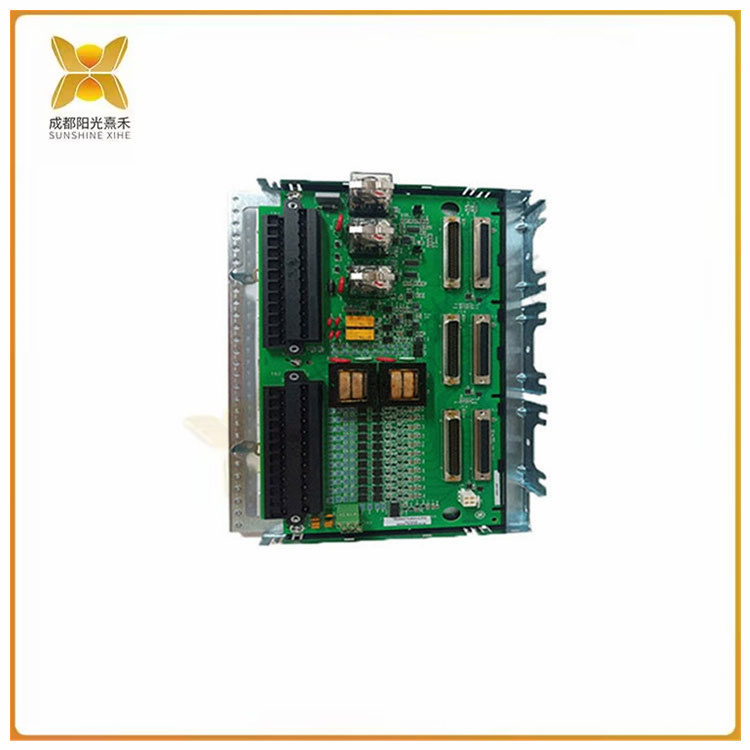

该IS200TTURH1C具有多个表面贴装继电器。此外，该板使用可变电阻器，并且在板中心附近还有两个变压器。与其他电路板组件的通信通过d-shell连接器（公头和母头）、插头连接器和接线端子进行。电路板上最大的两个接线端子具有螺钉安装连接器，这些连接器已编号以供参考。
>>>>>型号:IS200TTURH1CFD 终端板 具有多个表面贴装继电器
【英文介绍】
The IS200TTURH1C is a General Electric terminal board. The board was designed to be compatible with the company's later Speedtronic system. This includes the Mark VI and Mark VIe systems. AX Control maintains a ready-made, ready-to-ship inventory of components for both systems, as well as earlier Speedtronic systems. Since the earliest iterations (Mark I) became available for industrial gas turbine and steam turbine management in the late 1960s, Speedtronic systems have gradually become more complex.
The IS200TTURH1C is mostly rectangular with a few small cuts. The board is used in conjunction with other PCBS, such as PTUR and VTUR boards, to control the synchronization of the generator. This is mostly done through hardware and connectivity.
The IS200TTURH1C has multiple surface mount relays. In addition, the board uses variable resistors, and there are two transformers near the center of the board. Communication with other board components occurs through d-shell connectors (male and female), plug connectors, and terminal blocks. The two largest terminals on the board have screw mount connectors, which are numbered for reference.
