>>>>>型号:IS200TPROS1CBB 保护性终端卡 负责工业燃气轮机
【功能描述】

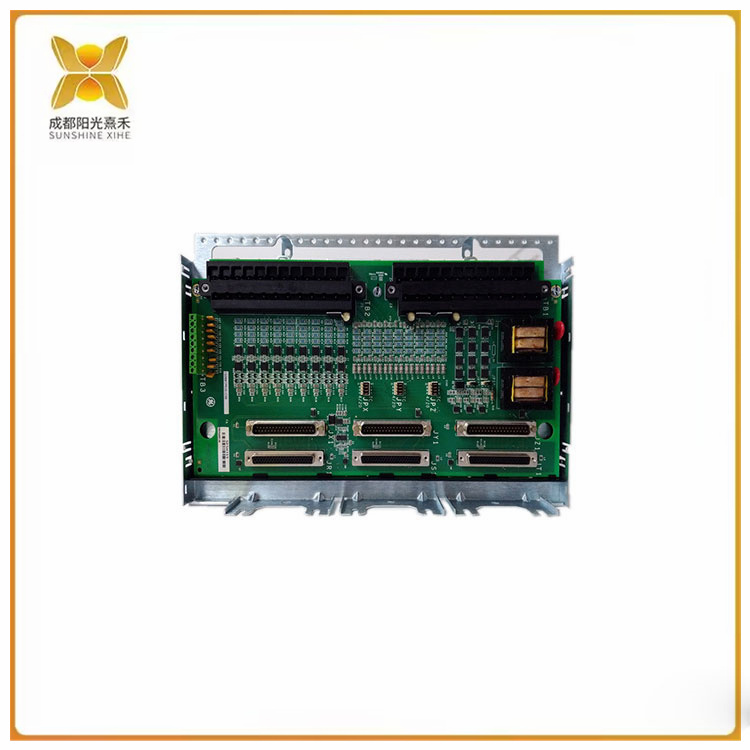

IS200TPROH1B是一种称为保护性终端卡的设备。这是一种长方形且较大的印刷电路板或PCB。IS200TPROH1B是通用电气或GE的Mark VI系列中的一个组件。这些系统负责工业燃气轮机和蒸汽轮机的管理和自动化。
IS200TPROH1B的左边缘被两（2）个黑色的大接线端子占据。这两款接线端子均具有24个立方体形状的银色金属端子，总共有48个端子。位于IS200TPROH1B顶部的是一对垂直配对的变压器。这些变压器大多是红色的，顶部有黄色部分。每个变压器旁边都有一个圆形的红色组件，称为MOV或金属氧化物压敏电阻。IS200TPROH1B的右边缘被一组黑色和银色的连接器端口占据。右侧的三个连接器端口比其他端口大。它们从上到下被标识为JZ1、JY1和JX1。在这些较大连接器端口的左侧是三（3）个小型连接器端口，从上到下分别标识为JZ5、JY5和JX5。与每个组件下方的每个小连接器端口配对的是一个非常小的黄色电容器。一长排由字母L标识的银色组件位于IS200TPROH1B的左半部分。
>>>>>型号:IS200TPROS1CBB 保护性终端卡 负责工业燃气轮机
【英文介绍】
The IS200TPROH1B is a device called a protective terminal card. This is a rectangular and large printed circuit board or PCB. The IS200TPROH1B is a component in the General Electric or GE Mark VI series. These systems are responsible for management and automation of industrial gas and steam turbines.
The left edge of the IS200TPROH1B is occupied by two (2) large black terminals. Both terminals feature 24 cube-shaped silver metal terminals for a total of 48 terminals. Located on top of the IS200TPROH1B is a pair of vertically paired transformers. Most of these transformers are red with a yellow section on top. Next to each transformer is a round red component called MOV or metal oxide varistor. The right edge of the IS200TPROH1B is occupied by a set of black and silver connector ports. The three connector ports on the right are larger than the other ports. They are identified from top to bottom as JZ1, JY1, and JX1. To the left of these larger connector ports are three (3) smaller connector ports, identified from top to bottom as JZ5, JY5, and JX5. Paired with each small connector port below each component is a very small yellow capacitor. A long row of silver components identified by the letter L is located on the left half of the IS200TPROH1B.
