>>>>>型号:IS200TDBTH6ACD 分立式单工板组件 两个固定螺钉
【功能描述】
该IS200TDBTH6ACD是Mark VI分立式单工板组件。这种类型的PCB（印刷电路板）由通用电气制造，用于该公司的Mark VI Speedtronic系列。Speedtronic控制系列用于管理各种复杂程度和尺寸的蒸汽轮机、燃气轮机和水轮机。
IS200TDBTH6ACD只是我们库存中可用的几个不同版本的TDBT板之一。请务必检查您当前的电路板，以确保您订购的TDBT电路板版本适合您的特定应用。
IS200TDBTH6ACD包括一个前面板，就像许多其他Mark VI组件一样。该面板包括两个固定螺钉，用于在安装后将电路板组件固定在机架中。前面板还包括两个连接器和三个LED指示灯。面板上标有GE徽标和主板ID。

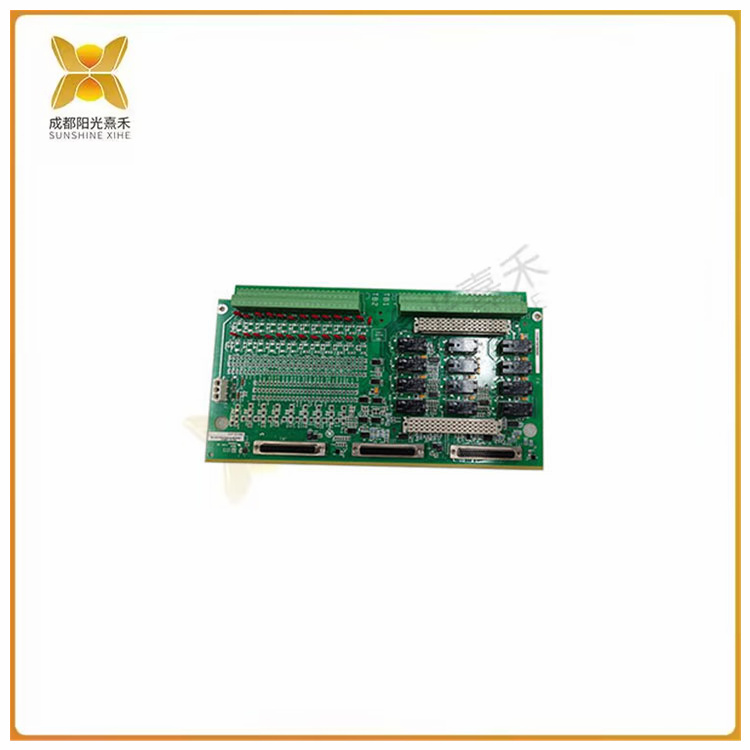

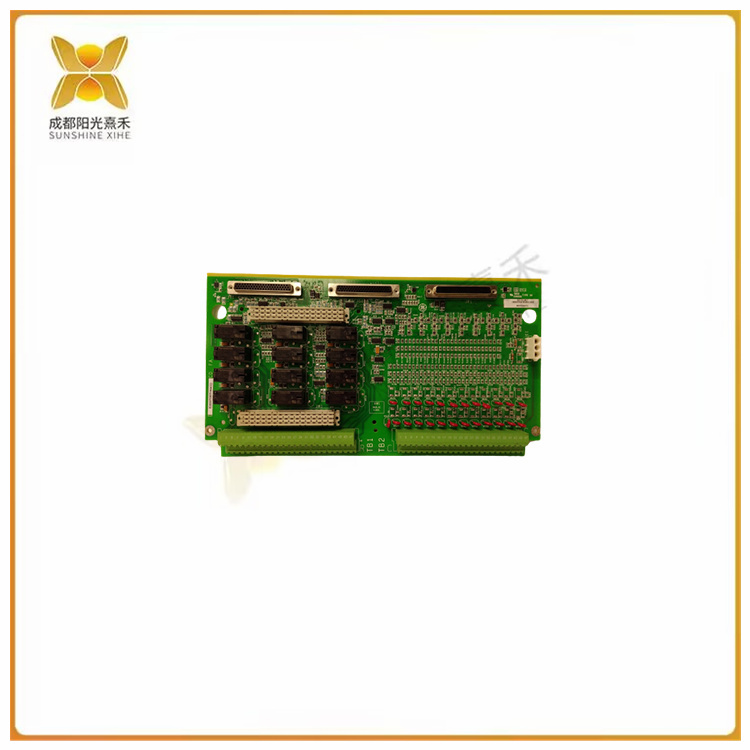

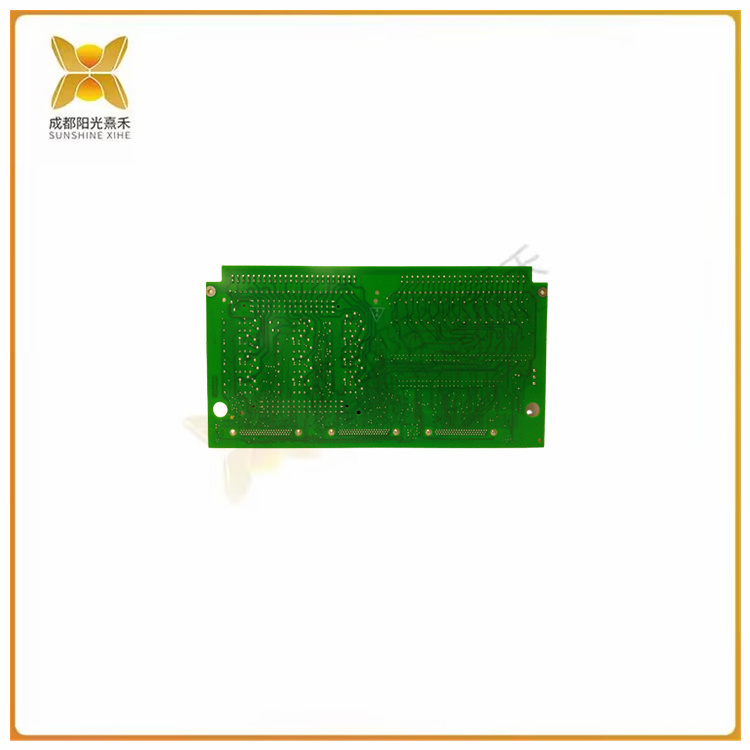

该板本身带有多个集成电路、两个背板连接器、测试点、继电器和电阻器。还有许多各种设计的电容器。组件位于电路板的两侧。电路板边缘包含有助于您放置和正确接线的代码，但您还应该查阅该组件的原始文档。这包括手册和用户指南。
>>>>>型号:IS200TDBTH6ACD 分立式单工板组件 两个固定螺钉
【英文介绍】
The IS200TDBTH6ACD is a Mark VI separate simplex assembly. This type of PCB (printed circuit board) is manufactured by General Electric for use in the company's Mark VI Speedtronic series. The Speedtronic control series is used to manage steam, gas and water turbines of all complexity and sizes.
The IS200TDBTH6ACD is just one of several different versions of TDBT boards available in our inventory. Be sure to check your current board to ensure that the version of TDBT board you order is appropriate for your specific application.
The IS200TDBTH6ACD includes a front panel, just like many other Mark VI components. The panel includes two setting screws for securing the board assembly in the rack after installation. The front panel also includes two connectors and three LED indicators. The panel is marked with the GE logo and the mainboard ID.
The board itself comes with multiple integrated circuits, two backplane connectors, test points, relays, and resistors. There are also many capacitors of various designs. The components are located on both sides of the board. The edge of the board contains code to help you place and wire correctly, but you should also consult the original documentation for the component. This includes manuals and user guides.
