>>>>>型号:IS200TBCIH2CAA 电路板组件 触点输入组隔离 端子板
【功能描述】

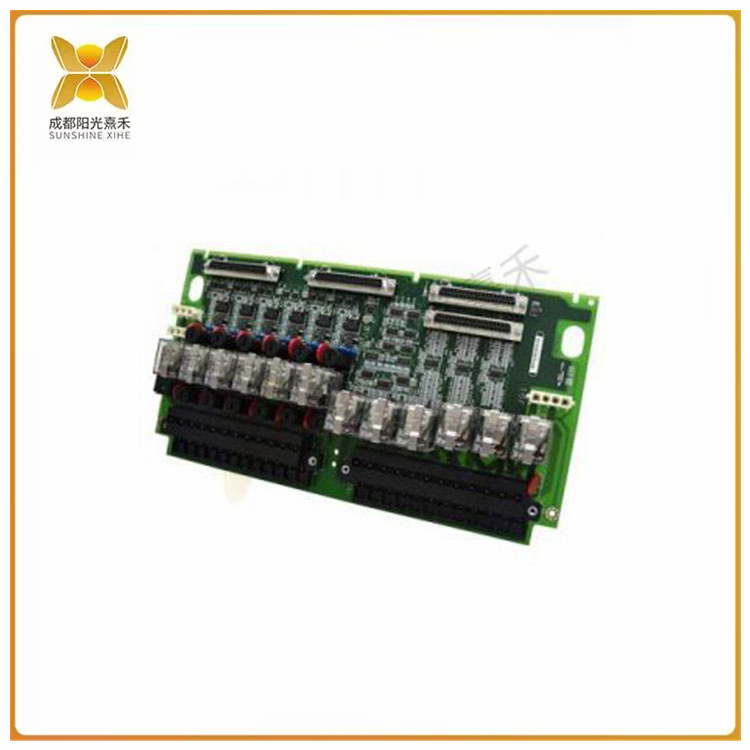

IS200TBCIH2C是GE制造的电路板组件。这是一款设计为Mark VI系统的端子板的小型板。Mark VI 是 GE 发布的燃气/蒸汽轮机管理系统，作为“Speedtronic”系列的一部分，该系列始于 1960 年代的 MKI，一直持续到 1990 年代的 MKVI 和 MKVIe。
IS200TBCIH2C是触点输入组隔离 （TBCI） 端子板。该板由两个接线端子和三个电缆连接器组成。每个接线端子 （TB1/TB2） 有 24 个螺钉连接，或每个 12 个触点。连接到这些触点最多使用#12 AWG 电线。这些板是屏障型接线端子，可以从板上拔下以进行维护。电缆连接器是带闩锁紧固件的 DC-37（母）连接器。它们被标记为 JT1/JS1/JR1。该板有两个用于电源输入的插头连接器。它们被标记为 JE1/JE2。该板被一个金属框架包围，该框架包括一个屏蔽端子条/条。
该IS200TBCIH2C具有滤波器，可降低高频噪声并抑制每个输入端的浪涌。 每个输入使用一对接线点，一个螺钉提供正直流电源，第二个点提供电路板的回路。前 21 个输入的电流负载为每点 2.5 mA。最后三个具有10 mA负载。该板没有硬件设置或跳线。诊断信息可使用 GE 出版物 GEH-6421 找到。该出版物还提供了有关该板安装和操作的更多信息。
>>>>>型号:IS200TBCIH2CAA 电路板组件 触点输入组隔离 端子板
【英文介绍】
The IS200TBCIH2C is a GE manufactured circuit board component. This is a small board designed as a terminal board for the Mark VI system. The Mark VI is a gas/steam turbine management system released by GE as part of the "Speedtronic" series, which began with the MKI in the 1960s and continued through the MKVI and MKVIe in the 1990s.
The IS200TBCIH2C is a contact Input Group Isolation (TBCI) terminal board. The board consists of two terminal blocks and three cable connectors. Each terminal (TB1/TB2) has 24 screw connections, or 12 contacts each. Connect to these contacts using a maximum #12 AWG wire. These boards are barrier type terminal blocks that can be unplugged from the boards for maintenance. The cable connector is a DC-37 (female) connector with latch fasteners. They are labeled JT1/JS1/JR1. The board has two plug connectors for power input. They are labeled JE1/JE2. The board is surrounded by a metal frame that includes a shielded terminal strip/bar.
The IS200TBCIH2C has a filter that reduces high-frequency noise and suppresses surges at each input. Each input uses a pair of wiring points, with one screw providing a straight stream power supply and the second point providing the circuit board. The current load for the first 21 inputs is 2.5 mA per point. The last three have a 10 mA load. The board has no hardware Settings or jumpers. Diagnostic information can be found using GE publication GEH-6421. The publication also provides more information about the installation and operation of the board.
