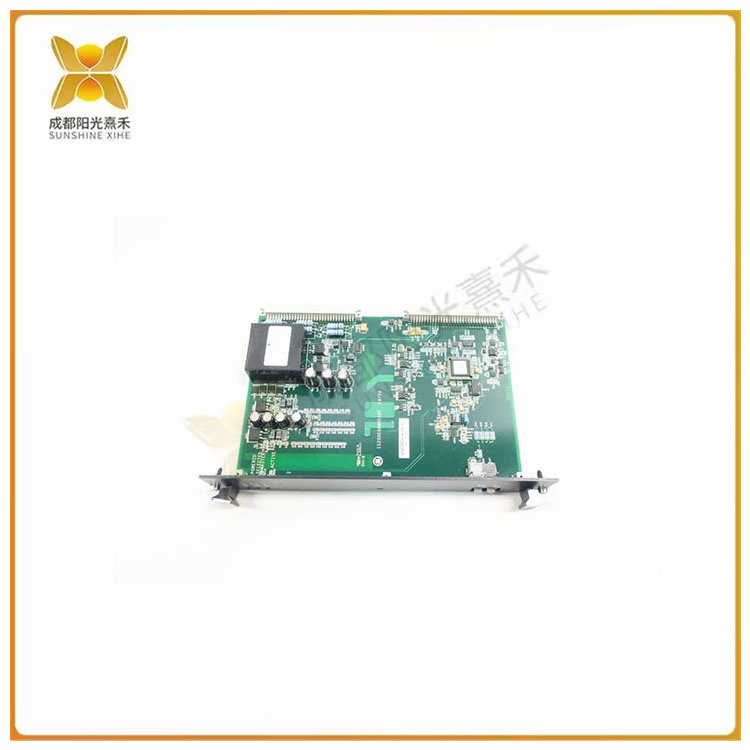

IS200EGDMH1ADF 单工模拟输入/输出端子板 安装在DIN导轨

>>>>>型号:IS200EGDMH1ADF 单工模拟输入/输出端子板 安装在DIN导轨 【功能描述】 IS200EGDMH1ADF为Mark VI系统创建的GE组件。Mark VI是以Speedtronic系列名称发布的燃气/蒸汽轮机管理系统。自1960年代以来,该系列一直用于涡轮机管理的各种迭代。Mark VI具有以太网通信功能,并在硬件和软件中包括板载诊断(限

电话/Phone:18859254943 (微信同号)

邮箱/Email:sales@ygdcs.com

QQ:3561040004

产品详情

>>>>>型号:IS200EGDMH1ADF 单工模拟输入/输出端子板 安装在DIN导轨





【功能描述】





IS200EGDMH1ADF为Mark VI系统创建的GE组件。Mark VI是以Speedtronic系列名称发布的燃气/蒸汽轮机管理系统。自1960年代以来,该系列一直用于涡轮机管理的各种迭代。Mark VI具有以太网通信功能,并在硬件和软件中包括板载诊断(限制检查)。

IS200EGDMH1ADF单工模拟输入/输出端子板。它是一款用于模拟信号的紧凑型输入板。该板安装在塑料支架中,允许将PCB安装在DIN导轨上。该板有10个模拟输入和2个模拟输出。输出为0-20mA,但可以通过重新配置跳线来配置为0-200mA电流。

IS200EGDMH1ADF有一个带闩锁紧固件的37针连接器。这被标记为JR1。该板有一个带有48个螺钉连接的端子板(TB1)。该端子排永久安装在电路板上。接线端子上通常使用#18 AWG电线的屏蔽双绞线。请注意,螺钉43/44被指定为接地(SCOM)连接。地线应尽可能短。该板有21个跳线开关;这些标记为JP1A/B-JP10A/B(20)加JP0。该板还包括各种电容器、电阻器和集成电路,以及四个小型子面板。电路板上的跳线用于配置电流和电压。


 >>>>>型号:IS200EGDMH1ADF 单工模拟输入/输出端子板 安装在DIN导轨



英文介绍



IS200DTAOH1ABA is a GE component created for the Mark VI system. The Mark VI is a gas/steam turbine management system released under the Speedtronic family name. The series has been used in various iterations of turbine management since the 1960s. The Mark VI has Ethernet communication capabilities and includes onboard diagnostics (limit checks) in both hardware and software.

IS200DTAOH1ABA simplex analog input/output terminal board. It is a compact input board for analog signals. The board is mounted in a plastic bracket, allowing the PCB to be mounted on a DIN rail. The board has 10 analog inputs and 2 analog outputs. The output is 0-20mA, but can be configured for 0-200mA current by reconfiguring the jumper.

The IS200DTAIH1ABB has a 37-pin connector with latch fasteners. This is labeled JR1. The board has a terminal board (TB1) with 48 screw connections. The terminal block is permanently installed on the circuit board. Shielded twisted pair of #18 AWG wire is usually used on the terminal. Note that screws 43/44 are designated for ground (SCOM) connections. Ground cables should be as short as possible. The board has 21 jumper switches; These are labeled JP1A/B-JP10A/B (20) plus JP0. The board also includes a variety of capacitors, resistors and integrated circuits, as well as four small sub-panels. Jumpers on the board are used to configure current and voltage.
