>>>>>型号:IS200DSPXH1DBD 印刷电路板 能源系统





【功能描述】

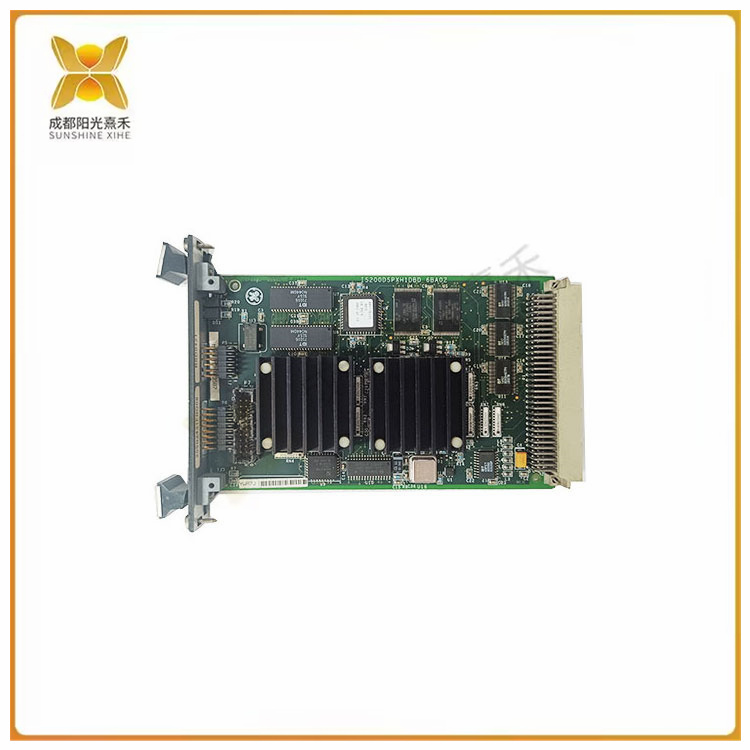

GE Mark VI IS200DSPXH1DBD是GE为Mark VI系列设计的印刷电路板。该板是GE speedtronic系列的一部分。

该IS200DSPXH1DBD是GE制造和最初分销的印刷电路板组件,作为其Mark VI Speedtronic系列的一部分。Mark VI是作为燃气和蒸汽工业涡轮机系统的控制系统而创建的,通常用于能源系统。该IS200DSPXH1DBD专门用于创新系列驱动器和EX2100励磁器。

IS200DSPXH1DBD是一个带有前面板的小矩形板。它用作数字信号处理器控制板,并设计有连接到ASIC(专用集成电路)的数字信号处理器,该集成电路执行自定义逻辑功能。该板加载了存储在其闪存中的板载固件。

该板有多个输入/输出连接器,其中两个位于其连接的前面板上。面板还具有两个嵌入式LED指示灯(一个绿色和一个红色),有助于向处理器发出警报。此外,该板还具有具有多种功能的直角背板连接器。其中包括数据总线、地址总线、控制输出信号、键盘接口、工具接口和VCO输入。


 >>>>>型号:IS200DSPXH1DBD 印刷电路板 能源系统



英文介绍



IS200DSPXH1DBC Technical specifications

Manufacturer GE Industrial Systems

Series Ex2100 excitation control

Part number IS200DSPXH1DBC

Function Description Digital signal processor control board

Often more easily identified by its functional industry acronym DSPX; The IS200DSPXH1DBC is a circuit board assembly used in the GE Industrial Systems EX2100 series of components for excitation control. The DSPX acronym can be described as a functional acronym because it exists to describe the intended use of the component. In this case, the IS200DSPXH1DBC is used as a digital signal processor control board. Since there are several different versions of the DSPX board available, make sure you order the correct iteration of this board for your system.

Hardware tips and specifications

The IS200DSPXH1DBC includes a 60 MHz digital signal processor, an application-specific integrated circuit (ASIC), and standard memory components. The ASIC provides custom logic capabilities and is connected to two leds embedded in the front panel connected to the circuit board. These leds (one red and one green) help alert the board to failure and are labeled "status" and "fault," respectively.

The IS200DSPXH1DBC has multiple I/O connectors. This includes a backplane connector (P1) and a vertical pin connector (P7) located near the front of the board. In addition, two connectors are installed on the motherboard panel, manufactured by trusted retailer ERNI. They are used as engineering monitoring ports (P6) and DSP emulator ports (P5).

Before installing this digital signal processor control board, be sure to verify that the size of this printed circuit board corresponds to the size of its mounting bracket or assembly area. The actual printed circuit board for this particular GE Industrial Systems model is about 8.5 inches long and about 5 inches wide. While this is true, the outer plate of this control board, labeled 259B2431FBG08 by the manufacturer, does increase the width of the PCB; Make the total width gap of the product approximately 7 inches. The above panel also greatly increases the general thickness of the IS200DSPXH1DBC, increasing the total thickness to about one inch. This is a static-sensitive device and should always be used with extreme care during installation and storage.
