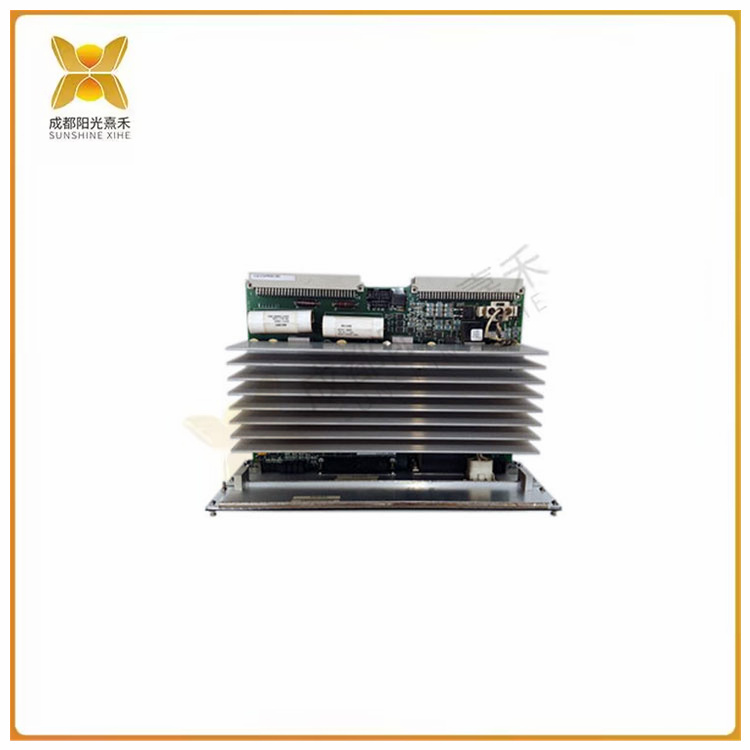

>>>>>型号:IS215VPROH1BD 印刷电路板 工业燃气轮机
【功能描述】
IS215VPROH1BD是一种印刷电路板，设计为GE的Mark VI涡轮机控制系统中的一个组件。该系统用于控制和管理各种尺寸和复杂程度的工业燃气轮机和蒸汽轮机。
该IS215VPROH1BD是AX Control库存中用于Mark VI的多个应用控制层模块之一。该板使用基于微处理器的控制器和通信网络（如ISBus和以太网）来执行Mark VI的多项任务。这款多功能板可与EX2100励磁器或标准创新系列驱动器一起使用。
IS215VPROH1BD前面有一个连接的面板。这包括两个ISBus端口，每个端口有两个LED指示灯（一个黄色和一个绿色）、一个复位开关、两个COM端口、八个状态LED、一个以太网端口和四个附加LED指示灯。面板还包括两个固定螺钉，可帮助用户在安装模块后将模块牢固地锁定到位。
IS215VPROH1BD表面有三个可以调节的跳线开关。该板有一个p1连接器，仅在测试或开发期间使用。IS215VPROH1BD板设计用于与GE的Control System Toolbox软件配合使用。这可用于更改和配置IS215VPROH1BD上的运行时设置。操作系统升级是通过串行加载程序实现的。
>>>>>型号:IS215VPROH1BD 印刷电路板 工业燃气轮机
【英文介绍】
The IS215UCVEH2AE is a component of the General Electric Mark VI Speedtronic control system. The board is used as a VME control card. The VME bracket is the standard Mark VI bracket and can be used as a 13 - or 21-slot rack.
IS215UCVEH2AE is a rectangular board with a front panel. Both the top and bottom of the panel have a set screw to help hold the board in place after mounting it into the rack system. The front panel includes one Ethernet port, two COM ports, and one LAN port. It also has an opening for a sandwich card.
The board itself consists of a vertical pin connector within the board body and a right Angle pin connector along the edge of the board. In addition, the board has multiple integrated circuits, resistors, capacitors, chokes, and other components. In addition, there is a small circuit board mounted at an Angle in the center of the circuit board, and the radiator cap is located more than half of the circuit board.
