>>>>>型号:IS210AEBIH1BED PCB元件 监测涡轮机的振动
【功能描述】
IS210AEBIH1BED是GE为Mark VI系统设计的PCB元件。该系统专为燃气轮机或蒸汽轮机管理而设计,是GE在“Speedtronic”系列下发布的最后系统之一,这是GE从1960年代到世纪之交最成功的涡轮机管理系列。Mark VI包括以太网通信功能。它定期监测涡轮机的振动、轴电压积聚、火焰检测和温度问题等问题。它使用通用输入/输出以及特定于应用的I/O来实现这一点。

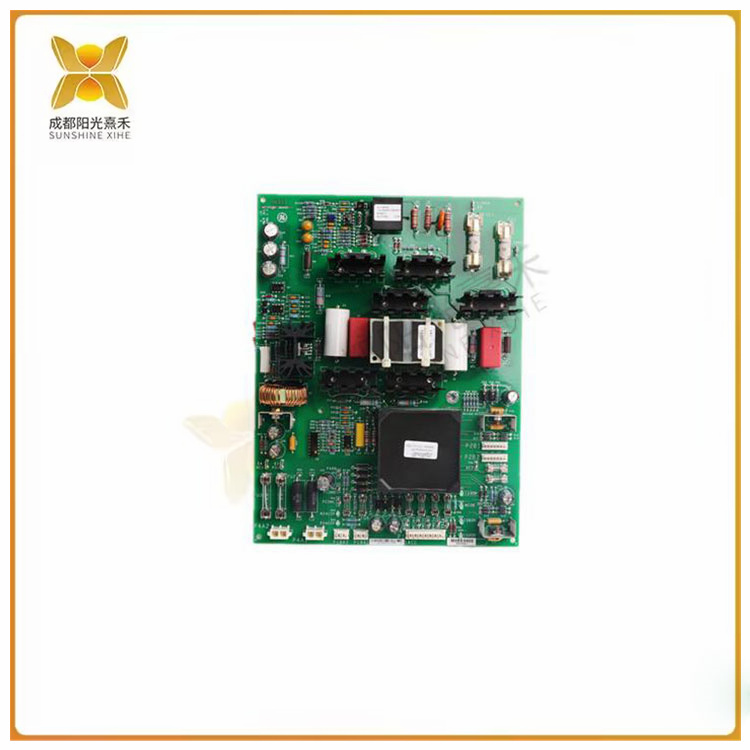

IS210AEBIH1BED是电源板组件。这是一个组件密集的小矩形板。该板的所有四个角都经过钻孔,并且在板体内的几个地方也有工厂制造的钻孔痕迹。该板由变压器、电源和电感线圈组成。该板还有四对不同尺寸的保险丝,以及位于左边缘附近的一条单独的四根保险丝线。
IS210AEBIH1BED具有由金属膜制成的电阻器。它使用压敏电阻元件,以及由陶瓷材料和聚酯乙烯基制成的电容器。该板的表面上有几个高压电解电容器,可以单独放置,也可以成对放置。该板还具有11个散热器、多个刺接连接器、插头连接器和从3针到8针的接头连接器,以及LED指示灯。该板具有多个集成电路,并使用TP测试点和晶体管。
>>>>>型号:IS210AEBIH1BED PCB元件 监测涡轮机的振动
【英文介绍】
The IS210AEBIH1BED is a PCB component designed by GE for Mark VI systems. Designed specifically for gas turbine or steam turbine management, the system was one of the last systems released by GE under the "Speedtronic" family, GE's most successful family of turbine management from the 1960s to the turn of the century. The Mark VI includes Ethernet communication. It regularly monitors the turbine for issues such as vibration, shaft voltage build-up, flame detection and temperature issues. It does this using generic input/output as well as application-specific I/O.
The IS210AEBIH1BED is a power module. This is a small rectangular plate with dense components. All four corners of the board have been drilled, and there are also factory-made bore marks in several places inside the board. The board consists of a transformer, a power supply and an inductor. The board also has four pairs of fuses of different sizes, as well as a separate four fuse wires located near the left edge.
The IS210AEBIH1BED has a resistor made of a metal film. It uses varistor elements, as well as capacitors made of ceramic materials and polyester vinyl. There are several high-voltage electrolytic capacitors on the surface of the plate, which can be placed individually or in pairs. The board also features 11 heat sinks, multiple spline connectors, plug connectors, and splice connectors from 3 to 8 pins, as well as LED indicators. The board has multiple integrated circuits and uses TP test points and transistors.
