>>>>>型号:IS200VRTDH1D 电阻温度器件 16个三线RTD输入
【功能描述】
该IS200VRTDH1D是GE Mark VI板组件。 Mark VI 是通用电气从 1960 年代后期一直到 2000 年代初开发和发布的 Speedtronic 燃气轮机和蒸汽轮机管理系列的一部分。这条涡轮机管理生产线始于 Mark I，并逐渐变得更加技术先进。Mark VI包括一个连接到基于PC的操作界面的三重冗余中央控制模块。该操作员界面允许使用专为涡轮机控制而设计的软件从单个位置访问涡轮机数据。
IS200VRTDH1D是RTD（电阻温度器件）输入。该板接受16个三线RTD输入，但这些输入不直接连接到电路板。取而代之的是，输入连接到RTD端子板，并通过电缆连接到安装IS200VRTDH1D的VME机架。
IS200VRTDH1D有一个单插槽面板。 面板上安装了三个 LED 指示灯，用于指示运行/失败/状态。LED 的颜色为绿色、红色和橙色。面板使用三颗螺钉连接到主 PCB。
IS200VRTDH1D是组件密集的。电路板电容器（超过200个）和电阻器（数百个）以及200多个集成电路。这包括现场可编程门阵列 （FPGA）。该板的电感磁珠分布在几条线路中。它在多个位置钻孔，包括在特定安装的芯片周围。该板标有 94V-0、6BA01 和 PC-40802 等代码。GE出版物GEH-6421将提供有关组件和电路板安装的更多信息。
>>>>>型号:IS200VRTDH1D 电阻温度器件 16个三线RTD输入
【英文介绍】
The IS200VRTDH1D is a GE Mark VI board component. The Mark VI is part of the Speedtronic gas turbine and steam turbine management series developed and released by GE from the late 1960s through the early 2000s. This turbine management line started with Mark I and has gradually become more technologically advanced. The Mark VI includes a triple redundant central control module connected to a PC-based operating interface. This operator interface allows turbine data to be accessed from a single location using software designed for turbine control.

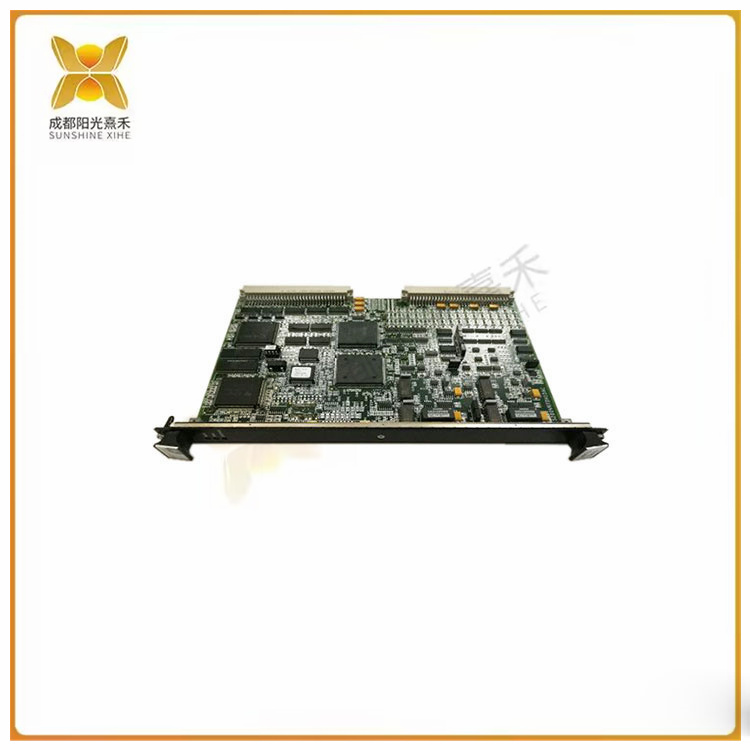

The IS200VRTDH1D is an RTD (Resistance Temperature Device) input. The board accepts 16 three-wire RTD inputs, but these inputs are not directly connected to the board. Instead, the input is connected to the RTD terminal board and via cable to the VME rack where the IS200VRTDH1D is installed.
The IS200VRTDH1D has a single slot panel. Three LED indicators are installed on the panel to indicate run/fail/status. The colors of leds are green, red and orange. The panel is attached to the main PCB using three screws.
The IS200VRTDH1D is component-intensive. Circuit board capacitors (more than 200) and resistors (hundreds) and more than 200 integrated circuits. This includes field programmable gate arrays (FPgas). The inductance beads of the board are distributed in several lines. It drills holes in multiple locations, including around a specific mounted chip. The board was marked with codes such as 94V-0, 6BA01, and PC-40802. GE publication GEH-6421 will provide more information on component and board mounting.
