IS200SRTDH2ABB  |  印刷电路板  |  具有不同尺寸的电子元件

　　模型:IS200SRTDH2ABB

　　效率:大于90%。

　　尺寸:170mm x105mmx32mm。

　　重量:约120g。

　　工作温度:-20℃~ +50℃。

　　存储温度:-40℃~ +70℃。

　　环境湿度:相对湿度5% ~ 95%(无凝露)

　　产品描述

　　IS200SRTDH2ABB是由通用电气或通用电气创建的印刷电路板或PCB，作为Mark VI家族的一部分。Mark VI是通用电气Mark系列的最新版本。Mark系列中的Mark VI和其他系列旨在管理和自动化燃气轮机和蒸汽轮机系统中的流程。它们被用于世界各地的许多不同行业。

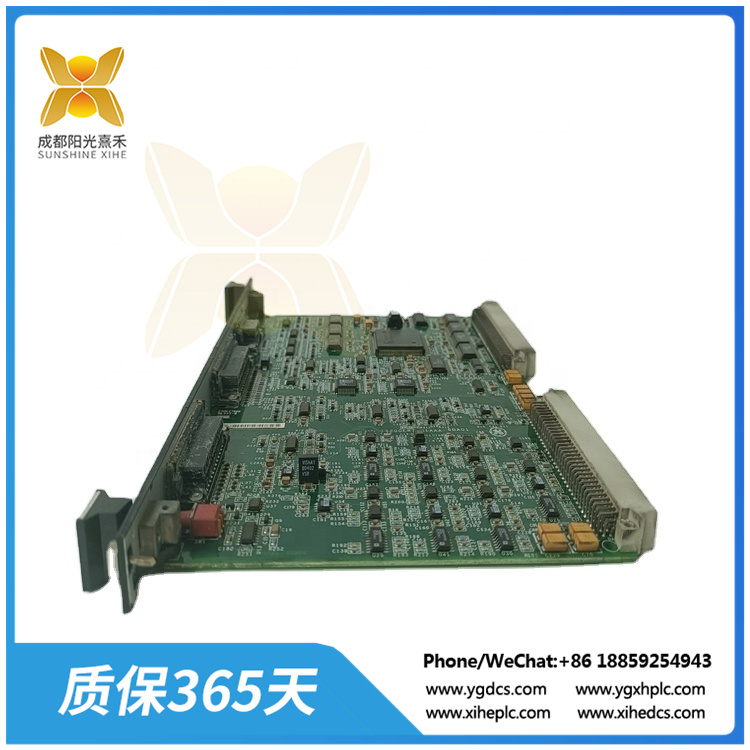

　　IS200SRTDH2ABB是一种相对较小的印刷电路板，具有不同尺寸的电子元件。两(2)个大端子位于IS200SRTDH2ABB的底边，一个在另一个的上面。每个终端包含十八(18)个终端，总共有三十六(3)个终端。这些包含在终端内的银色金属终端从一(1)到三十六(36)编号，并带有白色字母。一(1)个大连接器端口连接到IS200SRTDH2ABB的顶部边框。该接口用于将附加组件或其他单板连接到IS200SRTDH2ABB上。IS200SRTDH2A的中心被一组二极管和电容器占据。二极管的形状像一个黑色矩形。有24个二极管，分成两(2)行水平排列，每行12个二极管。每个二极管旁边是一(1)或两(2)小矩形电容器。IS200SRTDH2ABB的左上角打印了该设备的完整IS200SRTDH2A部件名称。GE符号印在电路板上，在这个零件号下面。

　　Model: IS200SRTDH2ABB

　　Efficiency: greater than 90%.

　　Size :170mm x105mmx32mm.

　　Weight: About 120g.

　　Operating temperature :-20°C to +50°C.

　　Storage temperature :-40°C to +70°C.

　　Ambient humidity :5% to 95% relative humidity (no condensation)

　　Product description

　　The IS200SRTDH2ABB is a printed circuit board or PCB created by General Electric or General Electric as part of the Mark VI family. The Mark VI is the latest version of the General Electric Mark series. The Mark VI and other series in the Mark series are designed to manage and automate processes in gas turbine and steam turbine systems. These are used in many different industries around the world.

　　The IS200SRTDH2ABB is a relatively small printed circuit board with electronic components of varying sizes. Two (2) large terminals are located on the bottom edge of the IS200SRTDH2ABB, one on top of the other. Each terminal contains eighteen (18) terminals for a total of thirty-six (3) terminals. These silver metal terminals contained within the terminal are numbered from one (1) to thirty-six (36) and bear white lettering. One (1) large connector port is connected to the top bezel of the IS200SRTDH2ABB. This connector port is used to connect additional components or other boards to the IS200SRTDH2ABB. The center of the IS200SRTDH2A is occupied by a collection of diodes and capacitors. The diode is shaped like a black rectangle. There are twenty-four diodes, divided into two (2) horizontal rows of twelve (12) diodes per row. Next to each diode are one (1) or two (2) small rectangular capacitors. The full IS200SRTDH2A part name for the device is printed in the upper left corner of the IS200SRTDH2ABB. The GE symbol is printed on the circuit board below this part number.
