IS200TREGH1BDC | 用于燃气轮机的紧急跳闸端子板 | I/O数据包

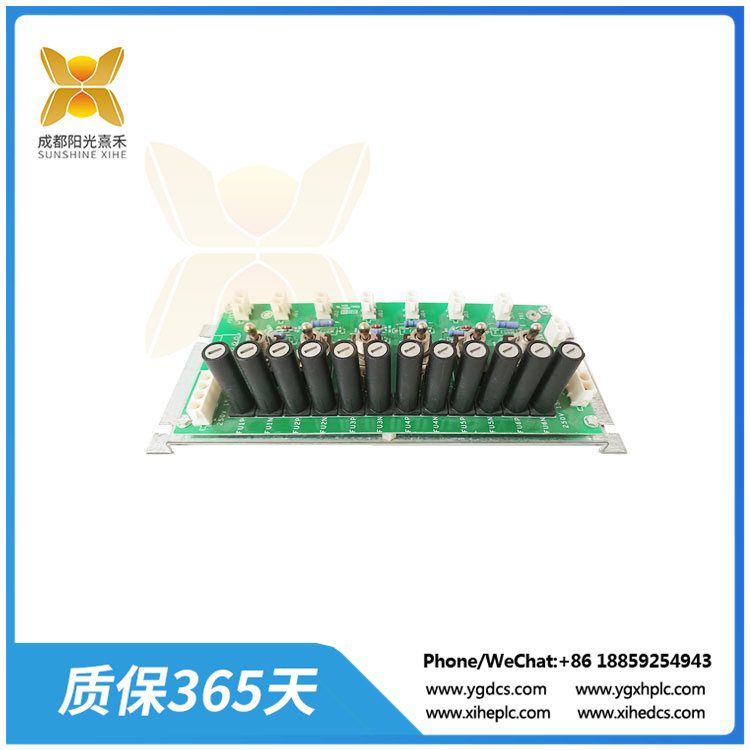

IS200TREGH1BDC是通用电气公司生产的用于燃气轮机的紧急跳闸端子板
Ve系列机床控制系统。它由母线和发电机电压输入的两个电压交换组成
传感器(PTS)和I/O数据包的条件速度信号输入。此外，它还有12个
继电器，每个顶部都有一根银线。接力棒是黑白相间的
连续六次。两行。端子板还具有DC-37引脚连接器，可与端子板连接
作为后备跳闸继电器的电缆。
在Mark Vle或Mark VleS控制系统中，备份保护由SPRO和PPRO/YPRO提供
通过连接到继电器板形成的。PTUR或YTUR, TTUR和主跳闸继电器端子板
提供主要保护，安装时，它安装在DIN导轨上的金属板载体上，也可以携带
它安装在用螺栓固定在面板上的金属板组件上。
IS200TREGH1BDC输入输出配置
IS200TREGH1BDC端子板具有全面的输入输出范围，确保高效的操作和控制:
客户输入终端:这些输入由两个24点可插拔的屏障终端提供便利，为客户特定的输入提供有组织和可访问的接口
. 9个无源脉冲速率装置:这些装置分布在X//Z段，每段3个，具有负仪表感应齿轮，从而能够精确测量涡轮转速。
信号扑动跳线模块:IS200TREGH1BDC跳线模块在使一组三速输入扑动到所有三个PPRO VO封装中发挥关键作用，优化信号分配以实现统一的功能。
125 VDCTMR投票淘汰接触;这些输出触点标记为H2A和H4A，是系统跳闸激活的关键部件，确保在紧急情况下采取故障安全措施。
电压检测电路:从24到125 VDC的四个电路专门用于监测脱扣串，通过连续监测电压水平来提高系统的安全性和可靠性。
子板连接器:包含子板连接器允许可选的功能扩展，为附加或增强的功能提供可扩展性和自定义可能性。
The IS200TREGH1BDC is an emergency trip terminal board manufactured by General Electric for use in gas turbines
Ve series of machine control system. It consists of two voltage interchanges for bus and generator voltage inputs
Sensors (PTS), and conditional speed signal inputs for I/O packets. In addition, it also has twelve
Relays, each with a silver wire at the top. Relays are white and black, each
Six in a row. Two rows. The terminal board also has a DC-37 pin connector that can be connected to the terminal board
Cable to serve as backup trip relay.
In Mark Vle or Mark VleS control systems, backup protection is provided by SPRO and PPRO/YPRO
Formed by wiring to a relay board. PTUR or YTUR, TTUR and main trip relay terminal board
Provides the main protection, when installed, it is mounted on the DIN rail on a metal plate carrier, can also be carried
It is mounted on a metal plate assembly bolted to the panel.
IS200TREGH1BDC Input and output configuration
The IS200TREGH1BDC terminal board has a comprehensive input and output range to ensure efficient operation and control:
Customer input terminals: These inputs are facilitated by two 24-point pluggable barrier terminals, providing an organized and accessible interface for customer-specific inputs
. Nine passive pulse rate devices: These devices are distributed in the X//Z section, three in each section, with negative meter induction gears, thus enabling accurate measurement of turbine speed.
Jumper blocks for signal flapping: The IS200TREGH1BDC jumper blocks play a key role in enabling a set of three-speed inputs to flap to all three PPRO VO packages, optimizing signal distribution for uniform functionality.
125 VDCTMR voting out contact; These output contacts, labeled H2A and H4A, are critical components for system trip activation, ensuring fail-safe measures in case of emergency.
Voltage Detection circuits: Four circuits from 24 to 125 VDC are dedicated to monitoring trip strings to improve system safety and reliability by continuously monitoring voltage levels.
Child board connectors: The inclusion of child board connectors allows for optional feature extensions, providing scalability and customization possibilities for additional or enhanced features.
