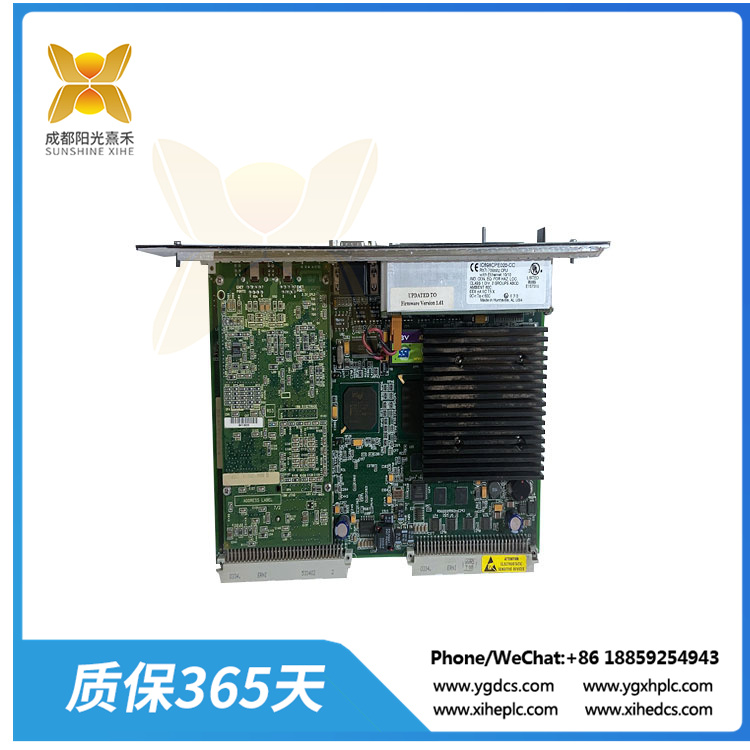

IC697CPU781  | 90-70系列   可编程逻辑控制器CPU

系列 ：90-70系列

　　零件编号： IC697CPU781

　　产品类型 ：CPU模块

　　兼容性 ：GE Fanuc 90-70 PLC

　　当前消耗： 1.6 安培

　　产品描述

　　IC697CPU781是一个可编程逻辑控制器CPU，可安装在单个机架插槽中。 为了与各种“智能选项”模块进行通信，使用了带有多个连接器的机架式背板。使用具有三个位置的拨动控制开关或带有特定软件的连接计算机来操作此设备。

　　IC697CPU781有一个16MHz的微处理器。布尔函数每 0.4 微秒计算一次。该器件支持高达 8K 的模拟 I/O，以及 12K 输入和输出的任意混合。支持多种“智能选项”模块，例如 IC697 系列分立和模拟模块。还支持 IC697 LAN 模块以及用于 IC660 和 IC661 模块的总线控制器。

　　要存储用户和配置信息，需要扩展板。该板提供高达 512 KB 的易失性存储器(由 CMOS 电池提供)和高达 256 KB 的非易失性闪存 (NVRAM)。该设备的日历和时钟也由CMOS电池维持。

　　IC697CPU781是用连接的计算机上的软件编程的，而不是DIP开关或跳线。在某些操作系统(如 MS-DOS、Windows 95 和 Windows NT)上运行的特殊程序用于对此设备进行编程。与此连接的计算机的并行串行连接是可能的，以太网连接也是如此。以太网连接需要安装以太网控制器或 2 类以太网接口。用于保护配置数据和设置的选项包括内存保护开关或编程软件中的密码。

　　IC200ALG262J 差分电流模块

　　IC200ALG322 模块 驱动换能器

　　IC200MDL240B 离散输入模块

　　IC200MDL240B 分布式输入/输出

　　IC200MDL741 离散输出模块

　　IC200MDL930 IC200MDL240B 输出模块 网络接口单元

　　IC220PBI002 IC200ALG262J 网络接口单元

　　IC609TCU1100B 可编程逻辑控制器

　　Series: 90-70 series

　　Part number: IC697CPU781

　　Product type: CPU module

　　Compatibility: GE Fanuc 90-70 PLC

　　Current consumption: 1.6 amps

　　Product description

　　The IC697CPU781 is a programmable logic controller CPU that can be installed in a single rack slot. In order to communicate with the various "smart options" modules, a rack-mounted backplane with multiple connectors is used. Operate this device using a toggle control switch with three positions or a connected computer with specific software.

　　The IC697CPU781 has a 16MHz microprocessor. The Boolean function is calculated every 0.4 microseconds. The device supports analog I/O up to 8K, as well as any mixture of 12K inputs and outputs. Support for a variety of "smart options" modules, such as the IC697 series discrete and analog modules. The IC697 LAN module and bus controllers for the IC660 and IC661 modules are also supported.

　　To store user and configuration information, you need an expansion board. The board offers up to 512 KB of volatile memory (supplied by a CMOS battery) and up to 256 KB of non-volatile flash memory (NVRAM). The device's calendar and clock are also maintained by a CMOS battery.

　　The IC697CPU781 is programmed with software on a connected computer, not a DIP switch or jumper. Special programs running on some operating systems, such as MS-DOS, Windows 95, and Windows NT, are used to program this device. Parallel serial connections to this connected computer are possible, as are Ethernet connections. An Ethernet controller or Class 2 Ethernet interface is required for Ethernet connection. Options for protecting configuration data and Settings include memory protection switches or passwords in programming software.
