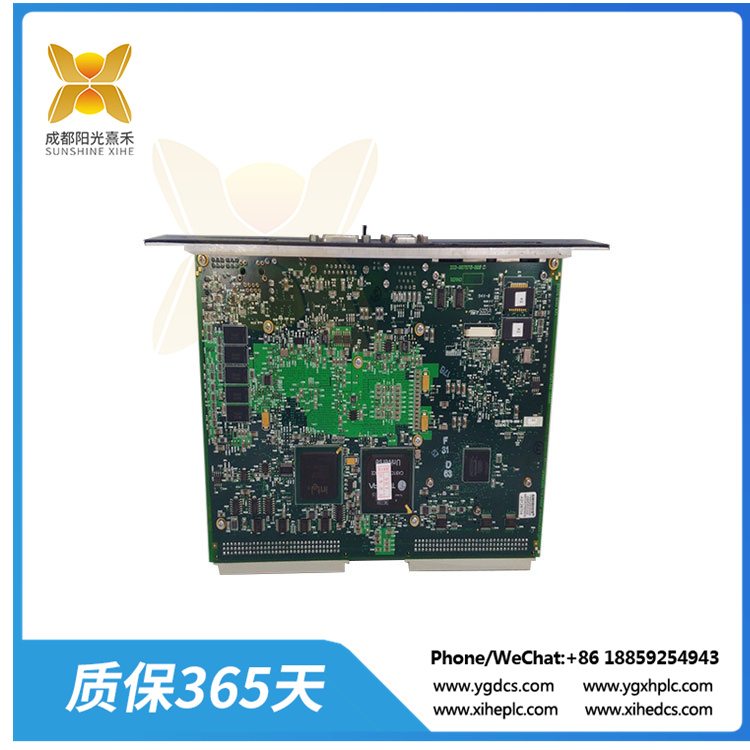

IC698PSA100 | 电源模块  |  配有螺丝型输入端子

　　品牌：GE

　　型号：IC698PSA100

　　产品名称：CPU处理器模块

　　产品净宽：53毫米

　　产品净高：125毫米

　　产品净深/长度：260毫米

　　产品净重：0.7公斤

　　IC698PSA100是 PACSystem RX7i 电源模块，由艾默生自动化制造，以前隶属于 GE 智能平台 (GE IP)。此电源模块安装在任何 RX7i 标准机架的最左侧插槽，特别是插槽 0。它配有螺丝型输入端子，设计用于输入电压范围 85 至 264 VAC(标称电压为 120 / 240 VAC)，频率为 47 至 63 Hz 和 100-150VDC(标称电压为 125 VDC)。外部电源连接必须使用 AWG #16 (1.3 mm2) 实心或绞合铜线进行，绝缘额定值为 75°C (167°F)。对于接地连接，请使用绝缘额定值为 75°C (167°F) 的 #12 (3.3 mm2) 铜线。适当端接 GND 连接可以显著消除系统噪音(如果不是)。

　　IC698PSA100 提供的最大输出功率为 100 瓦，这是所有三 (3) 个输出端子的总输出功率，可提供 4.875 至 5.25 伏、0—20 安培、5.1 VDC，标称值;11.64 至 12.6 伏，0—2 安培，+12 VDC，标称值和 –12.60 至 –11.64 伏，0—1 安培，-12 VDC，标称值。该电源模块的穿越时间最短为 15 ms，保持时间最短为 5 ms。它还具有主动过压和过流限制，特别是 +5VDC 时的 5.7 至 6.7 V 过压保护;+5 VDC 输出时为 21A;+12 VDC 输出时为 2.5A，-12 VDC 输出时为 3.5A。

　　该电源模块的工作温度为 0°C 至 60°C(32°F 至 140°F)，隔离额定值为 1500 VDC。

　　Brand: GE

　　Model: IC698PSA100

　　Product name: CPU processor module

　　Product width: 53 mm

　　Product height: 125 mm

　　Product net depth/length: 260 mm

　　Net weight: 0.7 kg

　　The IC698PSA100 is a PACSystem RX7i power module manufactured by Emerson Automation and formerly owned by GE Intelligence Platform (GE IP). This power module is installed in the leftmost slot of any RX7i standard rack, especially slot 0. It is equipped with screw input terminals and is designed for input voltage range 85 to 264 VAC (nominal voltage 120/240 VAC), frequency 47 to 63 Hz and 100 to 150VDC (nominal voltage 125 VDC). External power connections must be made using AWG #16 (1.3 mm2) solid or stranded copper wire with an insulation rating of 75°C (167°F). For ground connections, use #12 (3.3 mm2) copper wire with an insulation rating of 75°C (167°F). Properly terminated GND connections can significantly eliminate system noise (if not).

　　The IC698PSA100 provides a maximum output power of 100 watts, which is the total output power of all three (3) output terminals, providing 4.875 to 5.25 volts, 0-20 amps, 5.1 VDC, nominal values; 11.64 to 12.6 volts, 0-2 amps, +12 VDC, nominal values and -12.60 to -11.64 volts, 0-1 amps, -12 VDC, nominal values. The power module has a minimum traverse time of 15 ms and a minimum hold time of 5 ms. It also has active overvoltage and overcurrent limits, especially 5.7 to 6.7 V overvoltage protection at +5VDC; +5 VDC output is 21A; The output value is 2.5A for +12 VDC and 3.5A for -12 VDC.

　　The power module operates from 0°C to 60°C (32°F to 140°F) and has an isolation rating of 1500 VDC.
